Name: AHES4191
Brand: Panasonic Electric Works
SKU: 255-5233-ND
Price: 142.38 HKD
Availability: InStock

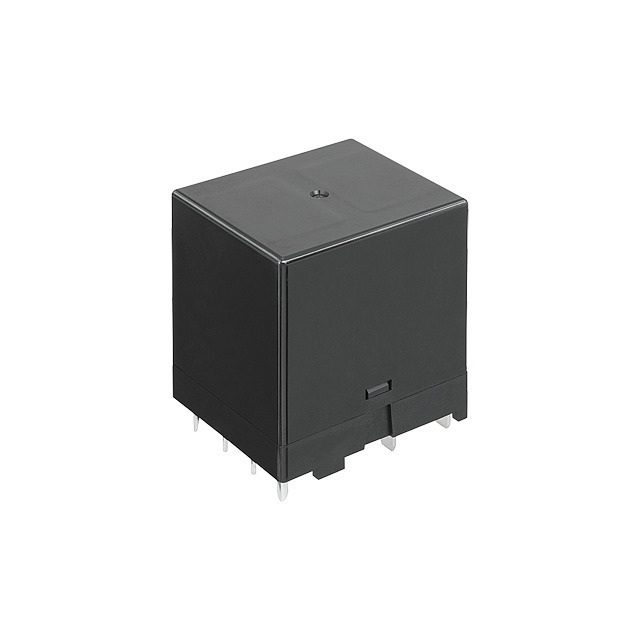

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

AHES4191
DigiKey Part Number	255-5233-ND
Manufacturer	Panasonic Electric Works
Manufacturer Product Number	AHES4191
Description	RELAY GEN PURPOSE 3PST 35A 12V
Manufacturer Standard Lead Time	12 Weeks
Customer Reference
Detailed Description	General Purpose Relay 3PST-2NO/1NC (2 Form A, 1 Form B) 12VDC Coil Through Hole
Datasheet	Datasheet

Product Attributes

Type	Description	Select All
Category	Relays Power Relays, Over 2 Amps
Mfr	Panasonic Electric Works
Series	HE-S
Packaging	Tray
Part Status	Active
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	3PST-2NO/1NC (2 Form A, 1 Form B)
Contact Rating (Current)	35 A
Switching Voltage	277VAC - Nom
Load - Max Switching	-
Coil Current	157 mA
Coil Type	Non Latching
Features	-
Termination Style	PC Pin
Seal Rating	Sealed - Flux Protection
Coil Insulation	Class F
Must Operate Voltage	9 VDC
Must Release Voltage	0.6 VDC
Operate Time	30 ms
Release Time	10 ms
Operating Temperature	-40°C ~ 55°C
Contact Material	Silver Tin Oxide (AgSnO)
Approval Agency	CQC, cURus, VDE
Relay Type	General Purpose
Grade	-
Qualification	-
Coil Resistance	76.6 Ohms
Base Product Number	AHES41
