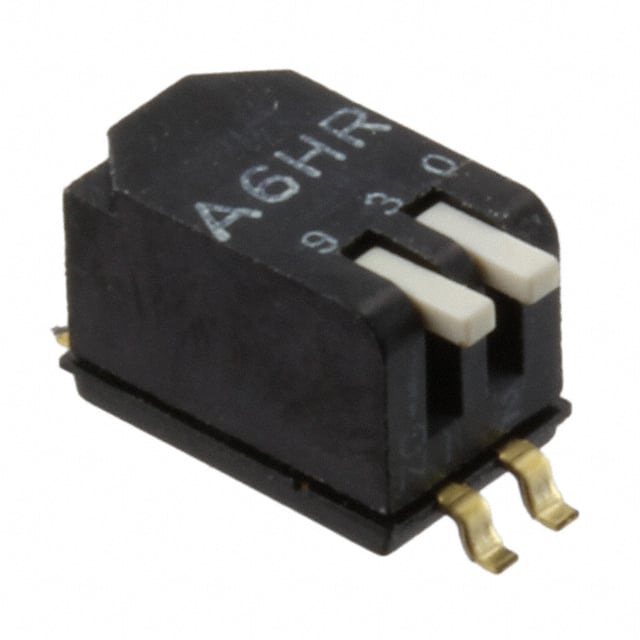

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

A6HR-2104
DigiKey Part Number	A6HR-2104-ND
Manufacturer	Omron Electronics Inc-EMC Div
Manufacturer Product Number	A6HR-2104
Description	SWITCH PIANO DIP SPST 0.025A 24V
Manufacturer Standard Lead Time	26 Weeks
Customer Reference
Detailed Description	Dip Switch SPST 2 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
Datasheet	Datasheet
EDA/CAD Models	A6HR-2104 Models

Product Attributes

Type	Description	Select All
Category	Switches DIP Switches
Manufacturer	Omron Electronics Inc-EMC Div
Series	A6HR
Packaging	Tube
Part Status	Active
Circuit	SPST
Number of Positions	2
Current Rating (Amps)	25mA
Voltage Rating	24VDC
Actuator Type	Piano
Actuator Level	Raised
Contact Material	-
Contact Finish	Gold
Height Above Board	0.165" (4.20mm)
Mounting Type	Surface Mount, Right Angle
Termination Style	Gull Wing
Pitch	0.050" (1.27mm), Half
Washable	No
Features	-
Operating Temperature	-30°C ~ 85°C
Body Material	-
Length	0.144" (3.67mm)
Mechanical Life	-
Electrical Life	1,000 Cycles
Base Product Number	A6H
