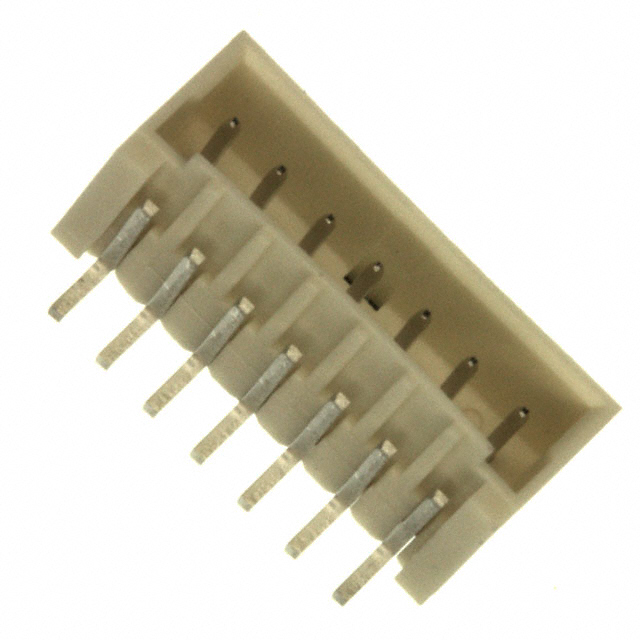

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0874370743 | |
|---|---|
DigiKey Part Number | WM7666TR-ND - Tape & Reel (TR) WM7666CT-ND - Cut Tape (CT) WM7666DKR-ND - Digi-Reel® |
Manufacturer | |
Manufacturer Product Number | 0874370743 |
Description | CONN HEADER SMD 7POS 1.5MM |
Manufacturer Standard Lead Time | 22 Weeks |
Customer Reference | |
Detailed Description | Connector Header Surface Mount 7 position 0.059" (1.50mm) |
Datasheet | Datasheet |
EDA/CAD Models | 0874370743 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Active | |
Connector Type | ||
Contact Type | Male Pin | |
Pitch - Mating | ||
Number of Positions | ||
Number of Rows | 1 | |
Row Spacing - Mating | - | |
Number of Positions Loaded | All | |
Style | ||
Shrouding | Shrouded - 4 Wall | |
Mounting Type | ||
Termination | Solder | |
Fastening Type | Push-Pull | |
Contact Length - Mating | 0.106" (2.70mm) | |
Contact Length - Post | - | |
Overall Contact Length | - | |
Insulation Height | 0.199" (5.05mm) | |
Contact Shape | Square | |
Contact Finish - Mating | Tin | |
Contact Finish Thickness - Mating | 100.0µin (2.54µm) | |
Contact Finish - Post | Tin | |
Contact Material | Brass Alloy | |
Insulation Material | Polyamide (PA), Nylon | |
Features | - | |
Operating Temperature | - | |
Ingress Protection | - | |
Material Flammability Rating | UL94 V-0 | |
Insulation Color | Beige | |
Current Rating (Amps) | - | |
Voltage Rating | - | |
Mated Stacking Heights | 7.4mm | |
Contact Finish Thickness - Post | - | |
Applications | General Purpose, Medical | |
Base Product Number |
In-Stock: 6,875
Can ship immediately
Quantity
All prices are in HKD
Cut Tape (CT) & Digi-Reel®
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $5.09000 | $5.09 |
| 10 | $4.29400 | $42.94 |
| 100 | $3.64980 | $364.98 |
| 500 | $3.25764 | $1,628.82 |
Tape & Reel (TR)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1,000 | $3.10203 | $3,102.03 |
| 2,000 | $2.95395 | $5,907.90 |
| 3,000 | $2.87059 | $8,611.77 |
| 5,000 | $2.76901 | $13,845.05 |
| 7,000 | $2.70406 | $18,928.42 |
| 10,000 | $2.63689 | $26,368.90 |
| 25,000 | $2.47196 | $61,799.00 |
