Name: JN1AS04MK1
Brand: JAE Electronics
SKU: 670-1053-ND
Price: 54.36 HKD
Availability: InStock

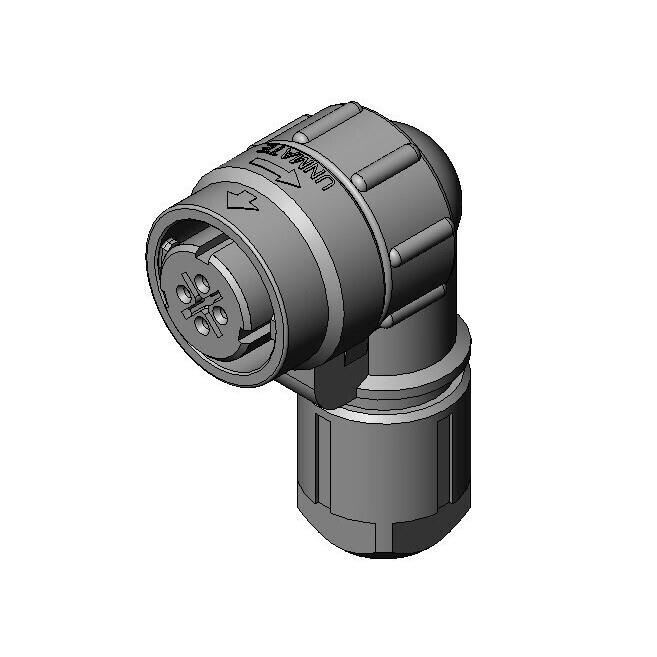

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

JN1AS04MK1
DigiKey Part Number	670-1053-ND
Manufacturer	JAE Electronics
Manufacturer Product Number	JN1AS04MK1
Description	CONN RCPT MALE 4P SOLDER CUP
Manufacturer Standard Lead Time	12 Weeks
Customer Reference
Detailed Description	4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet	Datasheet
EDA/CAD Models	JN1AS04MK1 Models

Product Attributes

Type	Description	Select All
Category	Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Mfr	JAE Electronics
Series	JN1
Packaging	Bag
Part Status	Active
Connector Type	Receptacle, Male Pins
Number of Positions	4 (3 + PE)
Shell Size - Insert	S
Shell Size, MIL	-
Mounting Type	Panel Mount
Mounting Feature	Flange
Termination	Solder Cup
Fastening Type	Push-Twist
Orientation	N (Normal)
Primary Material	Plastic
Shell Material	Synthetic Resin
Shell Finish	-
Contact Finish - Mating	Silver
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	-
Features	-
Shielding	-
Current Rating (Amps)	5A
Voltage Rating	200VAC
Cable Opening	0.591" (15.00mm)
Operating Temperature	-20°C ~ 125°C
Backshell Material, Plating	-
Contact Material	Copper Alloy
Contact Finish Thickness - Mating	-
Insert Material	Synthetic Resin
Applications	-
Base Product Number	JN1AS04M
