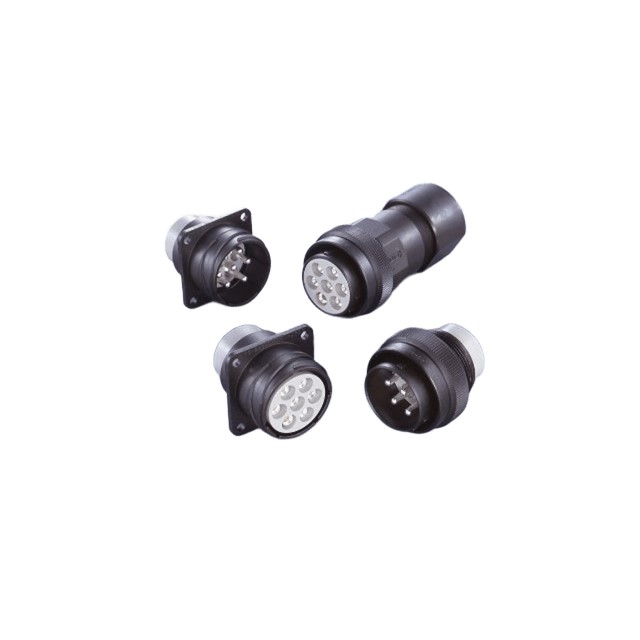

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
JL05-6A22-14PC-F0-R | |
|---|---|
DigiKey Part Number | JL05-6A22-14PC-F0-R-ND |
Manufacturer | |
Manufacturer Product Number | JL05-6A22-14PC-F0-R |
Description | CONN PLG HSG MALE 19POS INLINE |
Manufacturer Standard Lead Time | 15 Weeks |
Customer Reference | |
Detailed Description | 19 (18 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut |
Datasheet | Datasheet |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | JAE Electronics | |
Series | ||
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug Housing | |
Type | For Male Pins | |
Number of Positions | 19 (18 + PE) | |
Shell Size - Insert | 22-14 | |
Shell Size, MIL | - | |
Contact Type | Crimp | |
Contact Size | 16 | |
Mounting Type | Free Hanging (In-Line) | |
Mounting Feature | - | |
Fastening Type | Bayonet Lock | |
Orientation | N (Normal) | |
Shell Material | Aluminum | |
Shell Finish | Zinc | |
Housing Color | Black | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Material Flammability Rating | UL94 V-0 | |
Features | Coupling Nut | |
Shielding | Unshielded | |
Note | Contacts Not Included | |
Includes | - | |
Insert Material | Synthetic Resin | |
Contact Shape | Circular | |
Operating Temperature | -55°C ~ 125°C | |
Base Product Number |
In-Stock: 76
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $330.76000 | $330.76 |
| 10 | $281.11500 | $2,811.15 |
| 25 | $263.51600 | $6,587.90 |
| 50 | $250.94600 | $12,547.30 |
| 100 | $238.97990 | $23,897.99 |
| 250 | $224.03880 | $56,009.70 |
