PL8210NL

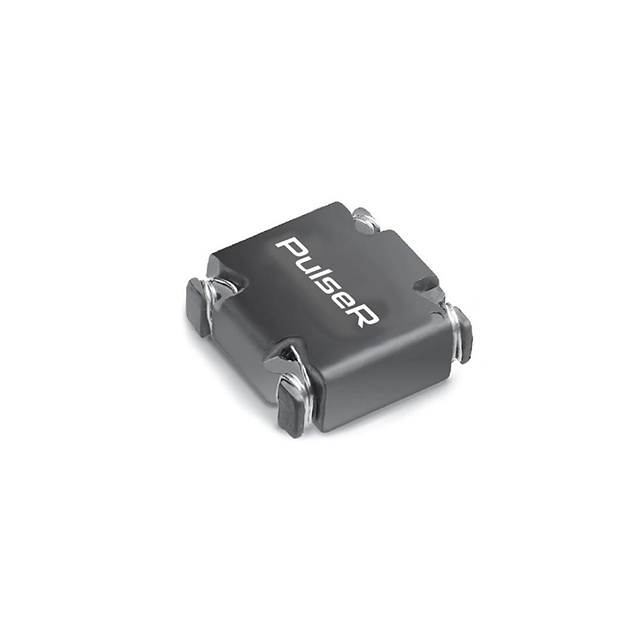

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

PL8210NL

DigiKey Part Number
1902-1030-5-ND
Manufacturer
iNRCORE, LLC
Manufacturer Product Number
PL8210NL
Description
CMC 1.22A 2LN SMD
Manufacturer Standard Lead Time
10 Weeks
Customer Reference
Detailed Description
2 Line Common Mode Choke Surface Mount 1.22A DCR 200mOhm
Datasheet
 Datasheet
Product Attributes
Type
Description
Select All
Category
Manufacturer
iNRCORE, LLC
Series
-
Packaging
Tube
Part Status
Active
Filter Type
Power Line
Number of Lines
2
Current Rating (Max)
1.22A
DC Resistance (DCR) (Max)
200mOhm
Voltage Rating - DC
-
Voltage Rating - AC
-
Operating Temperature
-55°C ~ 130°C
Ratings
-
Approval Agency
-
Features
-
Mounting Type
Surface Mount
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max)
0.215" (5.46mm)
Package / Case
Horizontal, 4 PC Pad
Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

In-Stock: 994
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Tube
QuantityUnit PriceExt Price
1$72.37000$72.37
10$59.48400$594.84
40$52.88550$2,115.42
80$49.86988$3,989.59
120$48.18817$5,782.58
280$44.85950$12,560.66
520$43.24006$22,484.83
Manufacturers Standard Package
Note: Due to DigiKey value-add services the packaging type may change when product is purchased at quantities beneath the standard package.
