EPC23xxxENGRT
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

EPC23104ENGRT

DigiKey Part Number
917-EPC23104ENGRTTR-ND - Tape & Reel (TR)
917-EPC23104ENGRTCT-ND - Cut Tape (CT)
917-EPC23104ENGRTDKR-ND - Digi-Reel®
Manufacturer
EPC
Manufacturer Product Number
EPC23104ENGRT
Description
IC HALF BRIDGE DRIVER 15A 13WQFN
Manufacturer Standard Lead Time
16 Weeks
Customer Reference
Detailed Description
Half Bridge Driver DC Motors, DC-DC Converters Gallium Nitride (GaN) FETs 13-WQFN-HR (3.5x5)
Datasheet
 Datasheet
Product Attributes
Type
Description
Select All
Category
Manufacturer
EPC
Series
ePower™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
Output Configuration
Half Bridge
Applications
DC Motors, DC-DC Converters
Interface
Logic
Load Type
Capacitive and Resistive
Technology
Gallium Nitride (GaN) FETs
Rds On (Typ)
7.6mOhm LS + HS
Current - Output / Channel
15A
Current - Peak Output
78A
Voltage - Supply
10V ~ 80V
Voltage - Load
10V ~ 80V
Operating Temperature
-40°C ~ 125°C (TJ)
Features
Bootstrap Circuit, Slew Rate Controlled
Fault Protection
ESD, Over Voltage, Short Circuit
Mounting Type
Surface Mount, Wettable Flank
Package / Case
13-PowerWFQFN
Supplier Device Package
13-WQFN-HR (3.5x5)
Base Product Number
EPC23104
Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

In-Stock: 20,096
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Cut Tape (CT) & Digi-Reel®
QuantityUnit PriceExt Price
1$40.34000$40.34
10$30.68900$306.89
25$28.28200$707.05
100$25.63770$2,563.77
250$24.37692$6,094.23
500$23.61728$11,808.64
1,000$22.99181$22,991.81
* All Digi-Reel orders will add a $55.00 reeling fee.
Tape & Reel (TR)
QuantityUnit PriceExt Price
3,000$22.21949$66,658.47
Manufacturers Standard Package
For Use With
1 Items
EPC91104

EPC91104

EVAL BOARD FOR EPC23104

EPC

$6,420.96000
You May Also Be Interested InSee All
10 Items
EPC91104

EPC91104

EVAL BOARD FOR EPC23104

EPC

$6,420.96000
SML-P11MTT86

SML-P11MTT86

LED YELLOW/GREEN CLEAR 1006 SMD

Rohm Semiconductor

$2.55000
EPC23101ENGRT

EPC23101ENGRT

TRANS GAN 100V EPOWER STAGE

EPC

$79.93000
EPC2152

EPC2152

IC HALF BRIDGE DRVR 12.5A 12LGA

EPC

$90.14000
LMG2100R044RARR

LMG2100R044RARR

100-V 4.4-M HALF-BRIDGE GAN FET

Texas Instruments

$83.31000
EPC2302

EPC2302

TRANS GAN 100V DIE .0018OHM

EPC

$66.02000
EPC2361

EPC2361

TRANS GAN 100V DIE,1 MOHM, 7PINQ

EPC

$70.14000
EPC23102

EPC23102

IC HALF BRIDGE DRIVER 35A 13WQFN

EPC

$68.49000
SIC631CD-T1-GE3

SIC631CD-T1-GE3

IC HALF BRIDGE DRIVER 50A PPAK

Vishay Siliconix

$20.09000

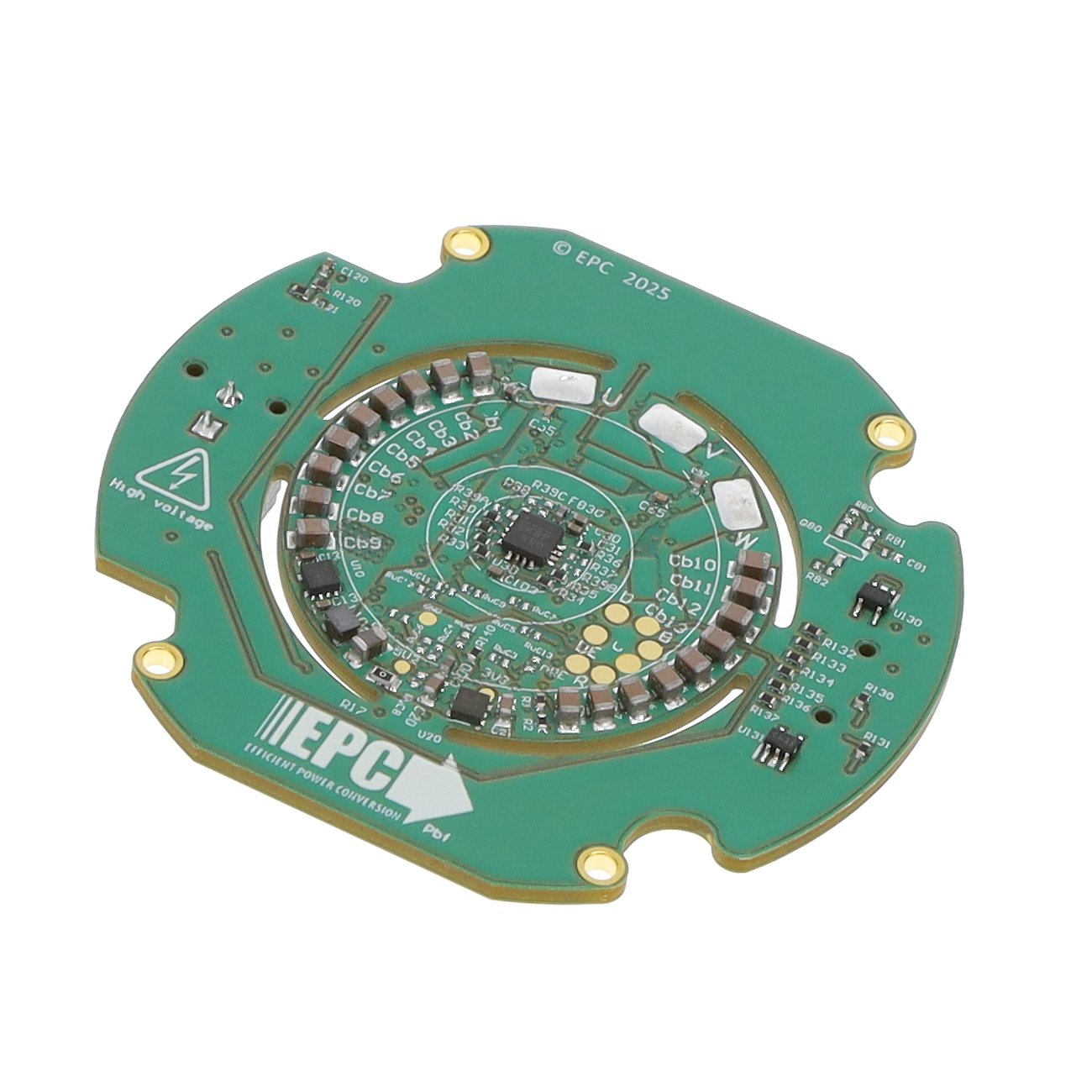

EPC91118
