TCF30

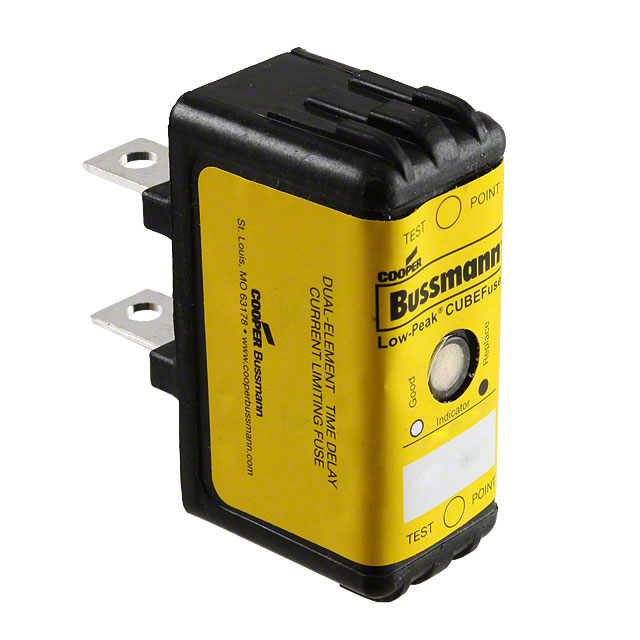

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TCF30
Compact Branch Circuit Protector - Class CF - CUBEFuse™

TCF30

DigiKey Part Number
283-3206-ND
Manufacturer
Eaton - Bussmann Electrical Division
Manufacturer Product Number
TCF30
Description
FUSE RECT 30A 600VAC/300VDC BLAD
Manufacturer Standard Lead Time
5 Weeks
Customer Reference
Detailed Description
30A 600 VAC 300 VDC Fuse Rectangular Requires Holder
Datasheet
 Datasheet
Product Attributes
Type
Description
Select All
Category
Manufacturer
Eaton - Bussmann Electrical Division
Series
CUBEFuse™ TCF
Packaging
Bulk
Part Status
Active
Mounting Type
Requires Holder
Fuse Type
Rectangular
Current Rating (Amps)
30A
Voltage Rating - AC
600 VAC
Voltage Rating - DC
300 VDC
Response Time
Slow Blow
Applications
Electrical, Industrial
Features
Indicating
Class
-
Approval Agency
CE, CSA, UL
Operating Temperature
-40°C ~ 80°C
Breaking Capacity @ Rated Voltage
300kA AC, 100kA DC
Package / Case
Blade Type, Module
Size / Dimension
1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm)
Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

In-Stock: 56
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Bulk
QuantityUnit PriceExt Price
1$985.70000$985.70
5$817.38800$4,086.94
12$737.80000$8,853.60
60$610.00500$36,600.30
108$568.61241$61,410.14
Manufacturers Standard Package
