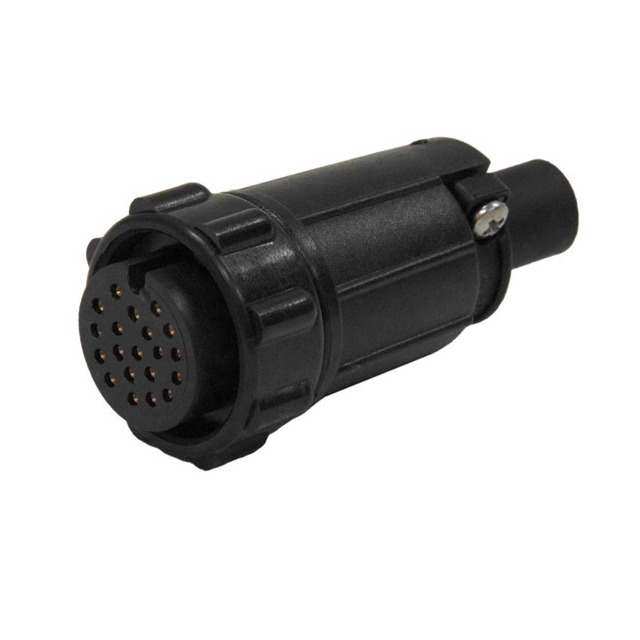

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
14280-20PG-300 | |
|---|---|
DigiKey Part Number | SC2117-ND |
Manufacturer | |
Manufacturer Product Number | 14280-20PG-300 |
Description | CONN RCPT MALE 20POS GOLD CRIMP |
Manufacturer Standard Lead Time | 8 Weeks |
Customer Reference | |
Detailed Description | 20 Position Circular Connector Receptacle, Male Pins Crimp |
Datasheet | Datasheet |
EDA/CAD Models | 14280-20PG-300 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Packaging | Bulk | |
Part Status | Active | |
Connector Type | ||
Number of Positions | 20 | |
Shell Size - Insert | - | |
Shell Size, MIL | - | |
Mounting Type | Panel Mount | |
Mounting Feature | Bulkhead - Front Side Nut, Flange | |
Termination | Crimp | |
Fastening Type | Bayonet Lock | |
Orientation | Keyed | |
Primary Material | Plastic | |
Shell Material | Polyamide (PA), Nylon | |
Shell Finish | - | |
Contact Finish - Mating | Gold | |
Color | Black | |
Ingress Protection | Weathertight | |
Material Flammability Rating | - | |
Features | - | |
Shielding | ||
Current Rating (Amps) | - | |
Voltage Rating | 600V | |
Cable Opening | - | |
Operating Temperature | -40°C ~ 115°C | |
Backshell Material, Plating | - | |
Contact Material | Brass | |
Contact Finish Thickness - Mating | - | |
Insert Material | - | |
Applications | - | |
Base Product Number |
In-Stock: 75
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $134.10000 | $134.10 |
| 10 | $113.94700 | $1,139.47 |
| 25 | $106.80840 | $2,670.21 |
| 50 | $101.71120 | $5,085.56 |
| 100 | $96.85850 | $9,685.85 |
| 300 | $89.63990 | $26,891.97 |
| 500 | $86.47024 | $43,235.12 |
Mating ProductsSee All
6 Items
