8 TSSOP
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

MAX5216BGUA+

DigiKey Part Number
MAX5216BGUA+-ND
Manufacturer
Analog Devices Inc./Maxim Integrated
Manufacturer Product Number
MAX5216BGUA+
Description
IC DAC 16BIT V-OUT 8UMAX
Manufacturer Standard Lead Time
10 Weeks
Customer Reference
Detailed Description
16 Bit Digital to Analog Converter 1 8-uMAX/uSOP
Datasheet
 Datasheet
EDA/CAD Models
MAX5216BGUA+ Models
Product Attributes
Type
Description
Select All
Category
Manufacturer
Analog Devices Inc./Maxim Integrated
Series
-
Packaging
Tube
Part Status
Active
Number of Bits
16
Number of D/A Converters
1
Settling Time
18µs (Typ)
Output Type
Voltage - Buffered
Differential Output
No
Data Interface
SPI, DSP
Reference Type
External
Voltage - Supply, Analog
2.7V ~ 5.5V
Voltage - Supply, Digital
2.7V ~ 5.5V
INL/DNL (LSB)
±3, ±0.25
Architecture
String DAC
Operating Temperature
-40°C ~ 105°C
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package
8-uMAX/uSOP
Mounting Type
Surface Mount
Base Product Number
MAX5216
Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

In-Stock: 1,718
Factory Stock: 600
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Tube
QuantityUnit PriceExt Price
1$63.47000$63.47
10$49.08700$490.87
50$43.32660$2,166.33
100$41.54200$4,154.20
250$39.65716$9,914.29
500$38.52116$19,260.58
1,000$37.58632$37,586.32
Manufacturers Standard Package
Note: Due to DigiKey value-add services the packaging type may change when product is purchased at quantities beneath the standard package.
For Use WithSee All
2 Items

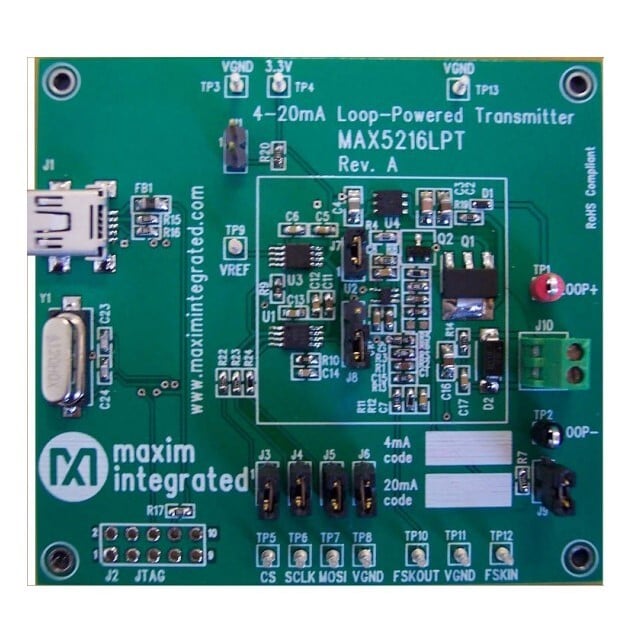

MAX5216LPTEVKIT#

MAX5216LPTEVKIT#

EVAL BOARD FOR MAX5216

Analog Devices Inc./Maxim Integrated

$922.56000
MAXREFDES150#

MAXREFDES150#

POCKET IO PLC REFERENCE DESIGN

Analog Devices Inc./Maxim Integrated

$4,365.18000
