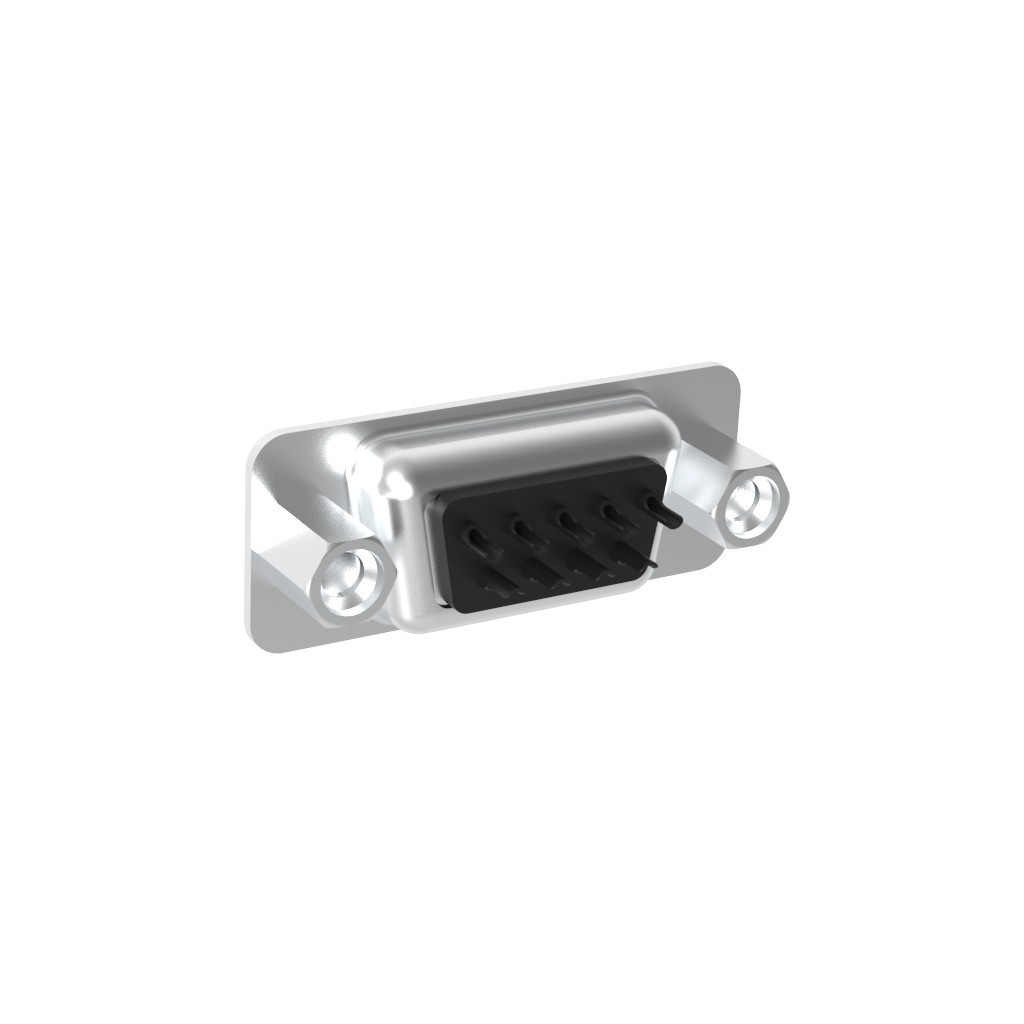

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
L717SDE09P1ACH | |
|---|---|
DigiKey Part Number | L717SDE09P1ACH-ND |
Manufacturer | |
Manufacturer Product Number | L717SDE09P1ACH |
Description | CONN D-SUB PLUG 9POS R/A SOLDER |
Manufacturer Standard Lead Time | 18 Weeks |
Customer Reference | |
Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
Datasheet | Datasheet |
EDA/CAD Models | L717SDE09P1ACH Models |
Product Attributes
Filter Similar Products
Show Empty Attributes
Category | Shell Material, Finish Steel, Tin Plated |
Mfr | Contact Finish Gold |
Series | Contact Finish Thickness Flash |
Packaging Tray | Material Flammability Rating UL94 V-0 |
Part Status Active | Current Rating (Amps) 3A |
Connector Style | Backset Spacing 0.406" (10.30mm) |
Connector Type Plug, Male Pins | Features Board Lock, Grounding Indents |
Number of Positions | Voltage Rating 250V |
Number of Rows 2 | Color Black |
Mounting Type | Contact Form Stamped |
Shell Size, Connector Layout 1 (DE, E) | Dielectric Material Thermoplastic, Glass Filled |
Contact Type Signal | Contact Material Brass |
Flange Feature Housing/Shell (Unthreaded) | Operating Temperature -55°C ~ 125°C |
Termination Solder | Base Product Number |
Report Product Information Error
Documents & Media
Environmental & Export Classifications
Product Questions and Answers
Additional Resources
Substitutes (4)
| Part Number | Manufacturer | Quantity Available | DigiKey Part Number | Unit Price | Substitute Type |
|---|---|---|---|---|---|
| 09661626817 | HARTING | 60 | 1195-7857-ND | $97.75000 | Similar |
| D09P23A4GV00LF | Amphenol CS (FCI) | 439 | D09P23A4GV00LF-ND | $16.61000 | Similar |
| DEM09P500 | Amphenol CS (FCI) | 113 | DEM09P500-ND | $187.78000 | Similar |
| DEM09S300 | Amphenol CS (FCI) | 151 | 609-6077-ND | $128.34000 | Similar |
In-Stock: 71
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Tray
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $19.48000 | $19.48 |
| 10 | $16.52500 | $165.25 |
| 45 | $14.85711 | $668.57 |
| 90 | $14.14733 | $1,273.26 |
| 135 | $13.74815 | $1,856.00 |
| 270 | $13.09137 | $3,534.67 |
| 540 | $12.46654 | $6,731.93 |
| 1,035 | $11.90735 | $12,324.11 |
| 2,520 | $11.18317 | $28,181.59 |
Mating ProductsSee All
15 Items
