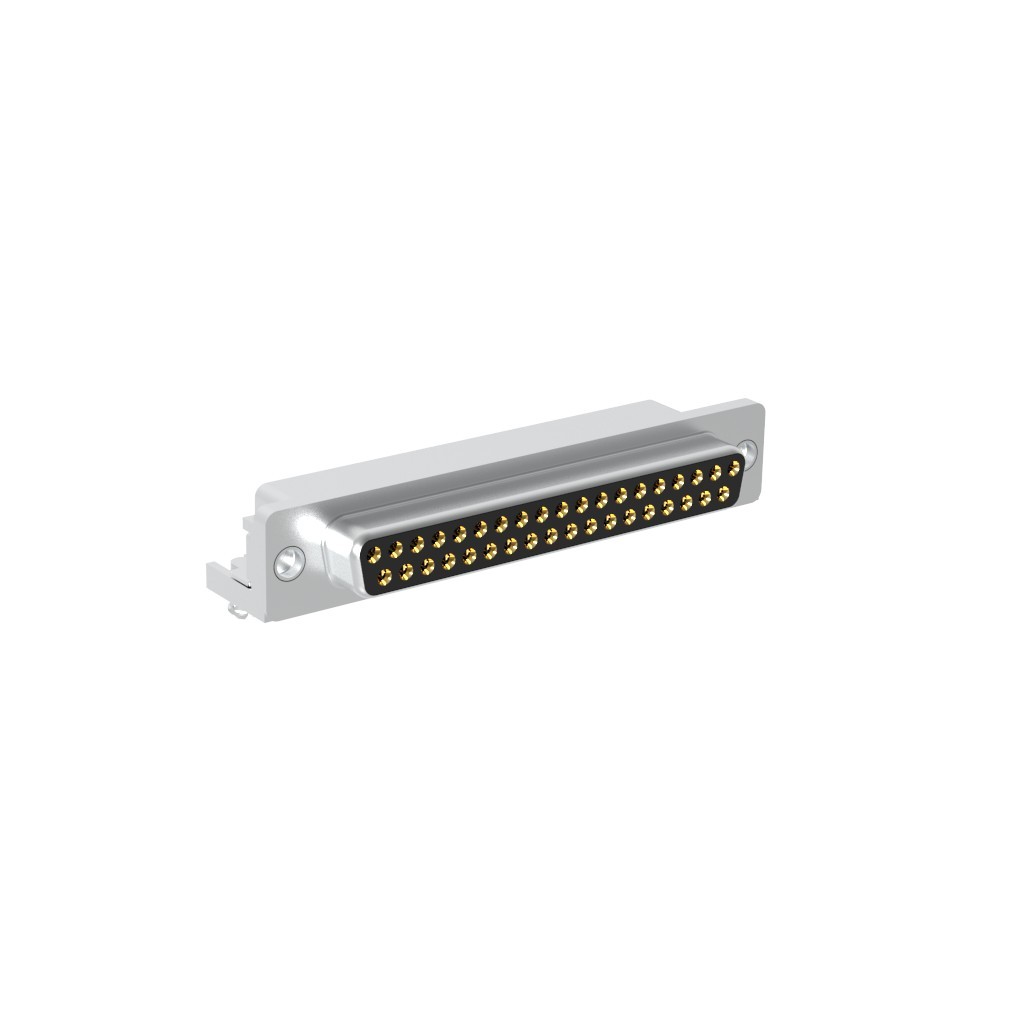

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
L717SDC37PVFC309 | |
|---|---|
DigiKey Part Number | L717SDC37PVFC309-ND |
Manufacturer | |
Manufacturer Product Number | L717SDC37PVFC309 |
Description | CONN D-SUB PLUG 37POS SOLDER CUP |
Manufacturer Standard Lead Time | 12 Weeks |
Customer Reference | |
Detailed Description | 37 Position D-Sub Plug, Male Pins Connector |
Datasheet | Datasheet |
EDA/CAD Models | L717SDC37PVFC309 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Packaging | Tray | |
Part Status | Active | |
Connector Style | ||
Connector Type | Plug, Male Pins | |
Number of Positions | ||
Number of Rows | 2 | |
Mounting Type | ||
Shell Size, Connector Layout | 4 (DC, C) | |
Contact Type | Signal | |
Flange Feature | Mating Side, Female Screwlock (4-40) | |
Termination | Solder Cup | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | 30.0µin (0.76µm) | |
Ingress Protection | - | |
Material Flammability Rating | UL94 V-0 | |
Current Rating (Amps) | 3A | |
Backset Spacing | - | |
Features | Grounding Indents | |
Voltage Rating | 250V | |
Color | Black | |
Contact Form | Stamped | |
Dielectric Material | Thermoplastic, Glass Filled | |
Wire Gauge | 20 AWG | |
Contact Material | Brass | |
Operating Temperature | -55°C ~ 105°C | |
Base Product Number |
In-Stock: 195
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Tray
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $37.44000 | $37.44 |
| 10 | $31.82600 | $318.26 |
| 25 | $29.83560 | $745.89 |
| 50 | $28.40840 | $1,420.42 |
| 100 | $27.05200 | $2,705.20 |
| 250 | $25.35788 | $6,339.47 |
| 520 | $24.08129 | $12,522.27 |
| 1,040 | $22.93269 | $23,850.00 |
| 2,600 | $21.49855 | $55,896.23 |
