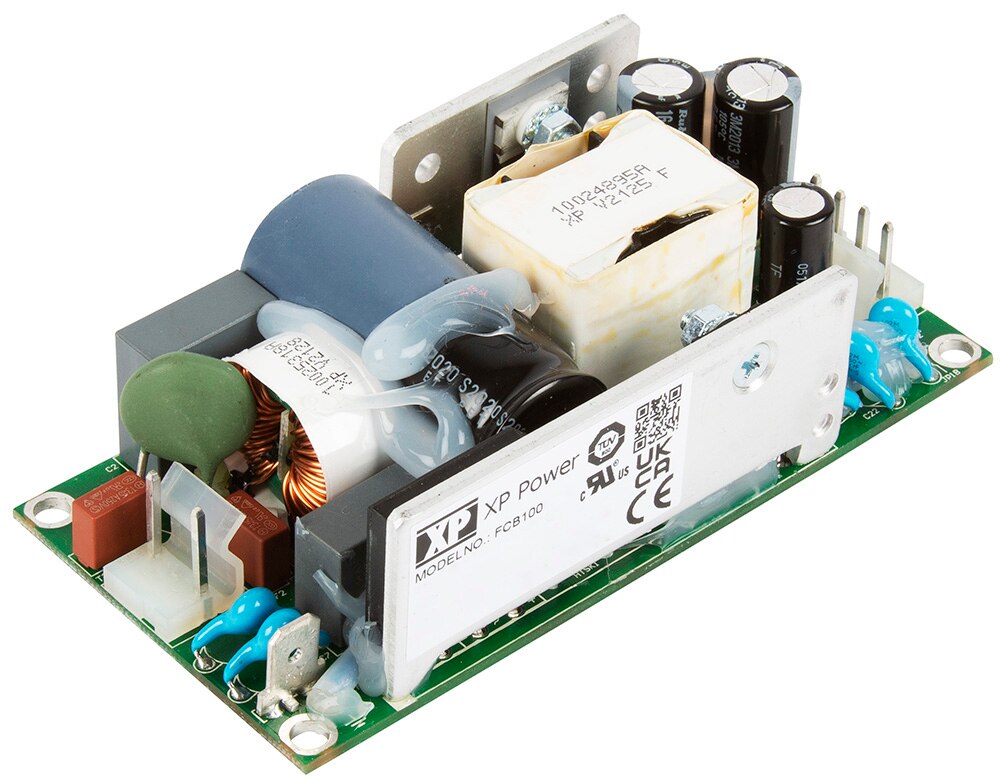

FCB100 Series AC/DC Power Supplies

XP Power’s FCB100 series AC/DC power supplies are certified to medical (including BF), ITE, and household standards for Class I and II (no ground connection) operation. With Class B conducted and radiated emissions in both Class I and Class II configurations and supporting both convection and fan-cooled applications, the open frame modules are ideal for medical, home healthcare, test and measurement, broadcast, networking, communications, and other industrial equipment.

All models in the FCB100 series accept a wide operating input voltage range of 80 V_AC to 264 V_AC, supporting worldwide compatibility and home healthcare applications, and have a no-load power consumption of less than 0.3 W. A choice of six standard output voltages is available: 12 V_DC, 15 V_DC, 19 V_DC, 24 V_DC, 36 V_DC, and 48 V_DC.

The FCB100 series operates in ambient temperatures from -25°C to +70°C. With external forced air cooling, the units deliver 100 W at up to +50°C, derating linearly to 50 W at +70°C. The units can be convection-cooled for low audible noise, delivering 80 W/85 W at up to +50°C, derating linearly to 40 W/45 W at +70°C depending on the model. The open frame models measure 101.6 mm x 50.8 mm x 31.8 mm (4” x 2” x 1.25”) and weigh 160 g (0.35 lbs). In addition, the products include overvoltage, overload, short circuit, and overtemperature protection as standard.

The input to output isolation is 4,000 V_AC (2 x MOPP), input to ground 1,500 V_AC (1 x MOPP), and output to ground 1,500 V_AC (1 x MOPP) combined with low leakage current for suitability in BF rated medical devices. Safety certifications include IEC/ES/EN 60601-1, IEC/UL/EN 62368-1, IEC 60950-1, and IEC 60335. The products also comply with EN55035 and IEC 60601-1-2 ed.4 EMC standards.
