ASB160 Series 160 W, Full-Brick AC/DC Power Supplies

Product Highlights > ASB160 Series 160 W, Full-Brick AC/DC Power Supplies

            ASB160 Series 160 W, Full-Brick AC/DC Power Supplies

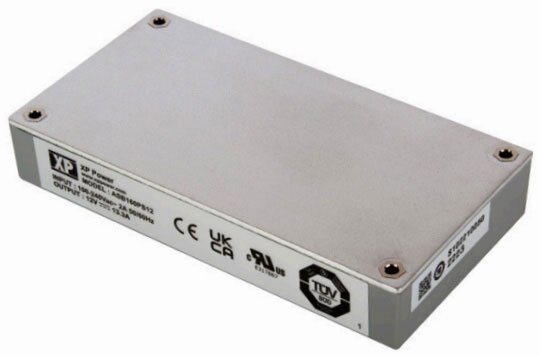

                    XP Power’s ASB160 power supplies have a baseplate-cooled design that reduces failure rates through effective heat exhaustion


XP Power’s ASB160 series low-profile, full-brick, baseplate-cooled AC/DC power supplies require no external components. The series includes a built-in EMC filter, AC fuse, and bulk storage capacitor, providing a complete AC/DC power solution ready for installation into industrial and semiconductor manufacturing applications.

The ASB160 series reduces failure rates through effective heat exhaustion in a baseplate-cooled design. Their sealed enclosure makes them suitable for use in ATEX approved equipment. The ASB160 offers high efficiency, minimizes waste heat and heat sinking requirements, and operates from -40°C to +90°C on the module baseplate.

Features

Input voltage range: 90 V_AC to 264 V_AC
Output voltage trim: ±5%
Overcurrent, overvoltage, and overtemperature protection
Single output voltages from 12 V_DC to 54 V_DC

Rugged, low-profile design
High efficiency of up to 93%
Baseplate operating temperature: -40°C to +90°C
Optional heatsink available

Applications

Test and measurement
IoT and industry 4.0
Sensing and detection
Industrial displays

Robotics
Factory automation
Process controls

Markets

Industrial technology
Analytical instrumentation
Semiconductor manufacturing
