            WE-SHC Seamless Shielding Cabinets
                    Würth Elektronik's WE-SHC seamless shielding cabinets have fully sealed seamless corners and no open slots to provide a Faraday cage effect


Würth Elektronik expands the WE-SHC shielding cabinet family with a seamless design for high frequency (HF) technologies. The WE-SHC seamless products are fully sealed SMT shielding cabinets allowing for no openings between the cabinets and the PCB. The seamless design allows for higher shielding effectiveness for high-frequency applications than the standard WE-SHC design and offers better oxidation resistance than other shielding cabinets on the market.

Resources

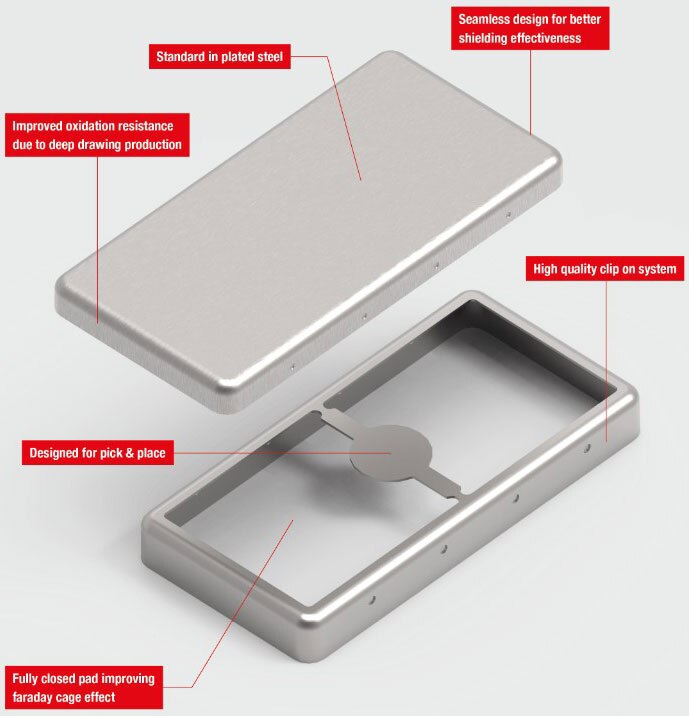

Innovative Design:WE-SHC Seamless

Features

Fully sealed, seamless corners and no open slots to provide an exceptional Faraday cage effect
Wide range of sizes
Customizable product series (dimensions, profile, plating, and raw material)

CRS electrolytic plating
Two-piece solution consisting of frame and cover
Operating temperature: -40°C to +125°C

Applications

5G
Internet of Things (IoT)
IO-Link wireless industrial communications standard devices

Global Navigation Satellite Systems (GNSS)
Top protect sensitive components (RF stages, oscillators and signal generators, sensitive ICs)

WE-SHC Seamless Shielding Cabinets

Manufacturer Part Number	Description	Width - Overall	Ventilation	Mounting Type	Available Quantity	Price	View Details
3671087	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.272" (6.90mm)	Non-Vented	Surface Mount	189 - Immediate	$23.32	View Details
3670093	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.366" (9.30mm)	-	Solder	180 - Immediate	$24.39	View Details
3671093	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.382" (9.70mm)	Non-Vented	Surface Mount	0 - Immediate	$23.32	View Details
3671108	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.307" (7.80mm)	Non-Vented	Surface Mount	370 - Immediate	$22.50	View Details
3671148	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.366" (9.30mm)	Non-Vented	Surface Mount	321 - Immediate	$23.32	View Details
3671128	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.500" (12.70mm)	Non-Vented	Surface Mount	95 - Immediate	$25.13	View Details
3670102	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.236" (6.00mm)	-	Solder	111 - Immediate	$23.32	View Details
3671156	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.433" (11.00mm)	Non-Vented	Surface Mount	144 - Immediate	$23.32	View Details
3671102	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.260" (6.60mm)	Non-Vented	Surface Mount	0 - Immediate	$23.32	View Details
3671135	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.555" (14.10mm)	Non-Vented	Surface Mount	31 - Immediate	$25.13	View Details
3671183	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.437" (11.10mm)	Non-Vented	Surface Mount	132 - Immediate	$24.39	View Details
36711106	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.457" (11.60mm)	Non-Vented	Surface Mount	132 - Immediate	$24.39	View Details
3671110	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.457" (11.60mm)	Non-Vented	Surface Mount	94 - Immediate	$24.39	View Details
3671130	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.535" (13.60mm)	Non-Vented	Surface Mount	105 - Immediate	$25.13	View Details
3670110	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.433" (11.00mm)	-	Solder	10 - Immediate	$25.13	View Details
3671193	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.437" (11.10mm)	Non-Vented	Surface Mount	91 - Immediate	$24.39	View Details
3671210	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.496" (12.60mm)	Non-Vented	Surface Mount	15 - Immediate	$26.11	View Details
36712092	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.618" (15.70mm)	Non-Vented	Surface Mount	0 - Immediate	$24.39	View Details
3671190	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.563" (14.30mm)	Non-Vented	Surface Mount	0 - Immediate	$23.32	View Details
3671209	WE-SHC TWO-PIECE SEAMLESS SHIELD	0.618" (15.70mm)	Non-Vented	Surface Mount	58 - Immediate	$24.39	View Details
