WE-MAPI SMD Shielded Power Inductor

The Würth Elektronik' WE-MAPI is the world's smallest metal alloy power inductor. Its efficiency is unprecedented.

It’s efficiency is outstanding and now available in new sizes and extended temperature versions with AEC-Q200 Grade 0 qualification for -55° to +150 °C operation temperature in the 4020HT series.

The power inductor was developed for the latest and upcoming switching regulator generations. It impresses with its innovative metal-alloy core material. The frameless design with direct wire connection significantly increases the effective magnetic volume and thus also the power density.

Characteristics

  • Magnetic iron alloy allows high rated currents up to 9.9 A
  • Compact design
  • Magnetically shielded
  • High current capability and handles high transient current spikes
  • Low acoustic noise and low leakage flux noise
  • AEC-Q 200 qualified
  • Operating temperature: –40 °C to 125 °C
  • WE-MAPI 4020HT: High Temperature Series with operating temperature from -55 °C to +150 °C

Applications

  • DC/DC-converter for high current power supplies
  • DC/DC-converter for Field Programmable Gate Array (FPGA)
  • POL-converters
  • Portable power like PDA, digital camera
  • Mainboards/graphic cards
  • Battery powered devices
  • Wireless communication devices
  • Power supplies for smartphones, tablet PCs and other mobile devices

The innovative design in detail

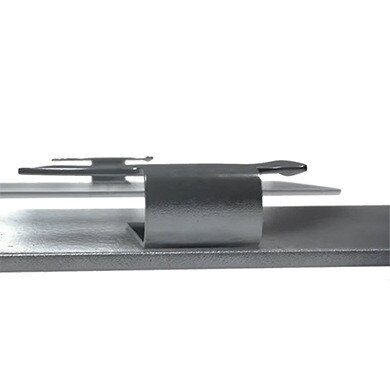

Leadframe free design for best coplanarity

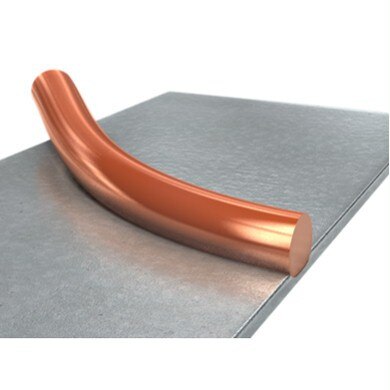

No solder or welding joints for highest reliability

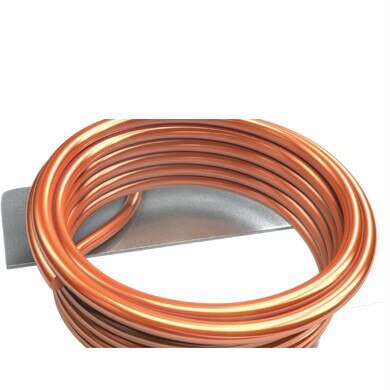

Greatest core utilization for highest current handling

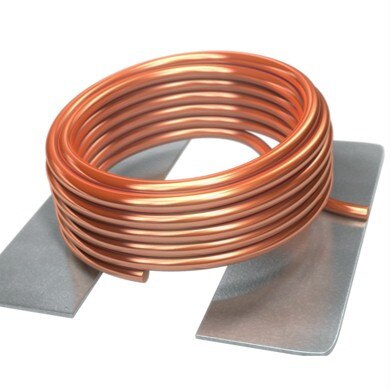

Reduced parasitic capacitances for lowest AC losses

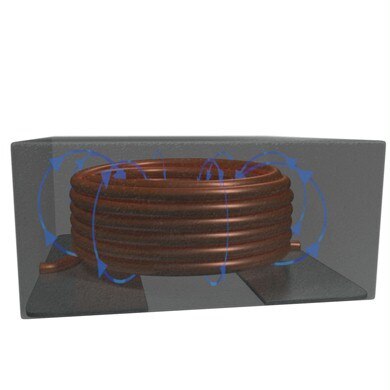

Self-shielding construction for best EMI performance

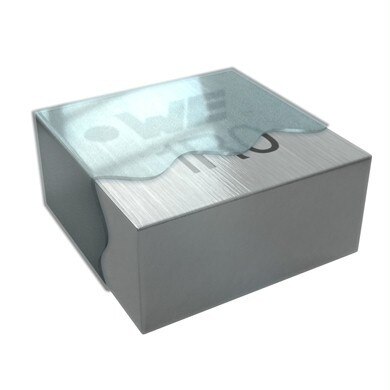

Protective coating for perfect robustness

Advantages at a glance

Lowest AC & DC losses

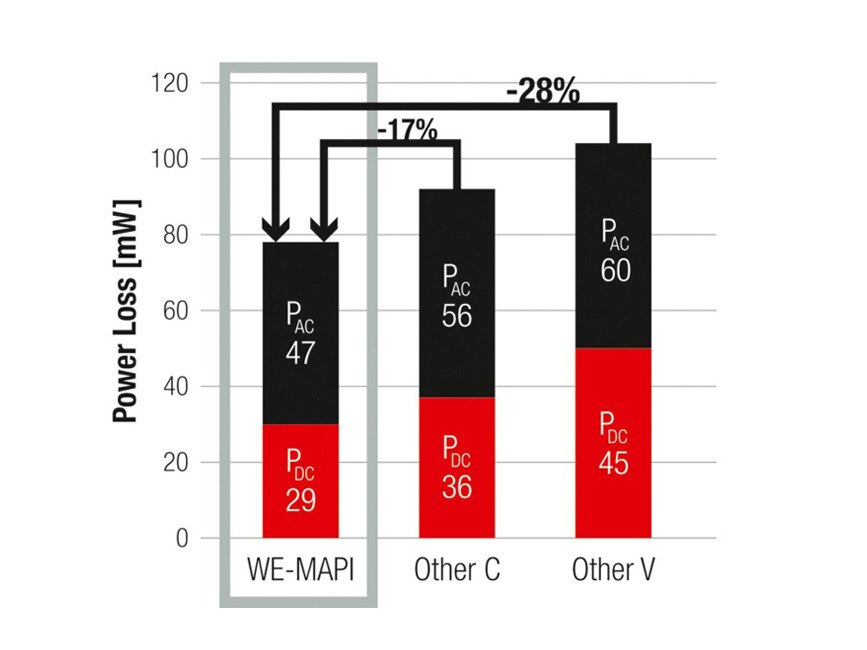

Buck: 24 V to 12 V @ 2 A, 500 kHz, 2.2 µH

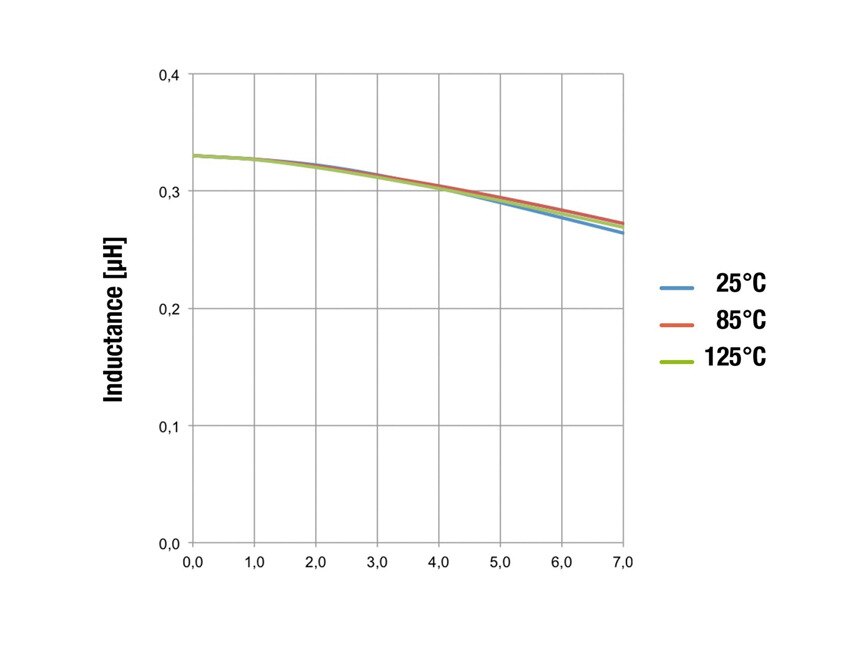

Excellent temperature stability

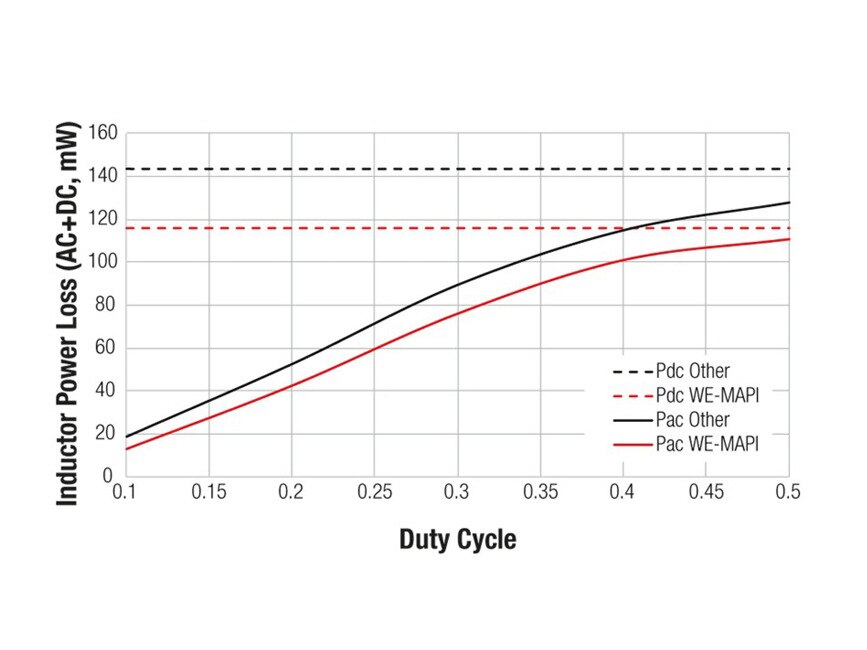

AC & DC Loss @ 500 kHz

Innovative Metal Alloy Core Material

Improved core utilization

Additional Resources

​

WE-MAPI

ImageManufacturer Part NumberDescriptionInductanceToleranceAvailable QuantityPriceView Details
FIXED IND 4.7UH 1.5A 162MOHM SMD74438335047FIXED IND 4.7UH 1.5A 162MOHM SMD4.7 µH±20%9610 - Immediate$9.88View Details
FIXED IND 10UH 600MA 843MOHM SMD74438323100FIXED IND 10UH 600MA 843MOHM SMD10 µH±20%3293 - Immediate$9.88View Details
FIXED IND 10UH 1.2A 322 MOHM SMD74438336100FIXED IND 10UH 1.2A 322 MOHM SMD10 µH±20%12095 - Immediate$12.76View Details
FIXED IND 6.8UH 1.6A 193MOHM SMD74438336068FIXED IND 6.8UH 1.6A 193MOHM SMD6.8 µH±20%8581 - Immediate$12.76View Details
FIXED IND 33UH 500MA 1.33OHM SMD74438335330FIXED IND 33UH 500MA 1.33OHM SMD33 µH±20%4968 - Immediate$13.75View Details
FIXED IND 10UH 2.7A 110 MOHM SMD74438357100FIXED IND 10UH 2.7A 110 MOHM SMD10 µH±20%42172 - Immediate$13.91View Details
FIXED IND 2.2UH 5.2A 26 MOHM SMD74438357022FIXED IND 2.2UH 5.2A 26 MOHM SMD2.2 µH±20%19882 - Immediate$13.91View Details
FIXED IND 6.8UH 3A 74 MOHM SMD74438357068FIXED IND 6.8UH 3A 74 MOHM SMD6.8 µH±20%7475 - Immediate$13.91View Details
FIXED IND 4.7UH 3.9A 44 MOHM SMD74438357047FIXED IND 4.7UH 3.9A 44 MOHM SMD4.7 µH±20%5675 - Immediate$13.91View Details
FIXED IND 1UH 7.4A 13.5 MOHM SMD74438357010FIXED IND 1UH 7.4A 13.5 MOHM SMD1 µH±20%4748 - Immediate$13.91View Details
