Würth Elektronik

WA-SMSA Spacer Studs Automotive

Würth Elektronik's WA-SMSA spacer studs automotive are available with through-hole via or M3 thread

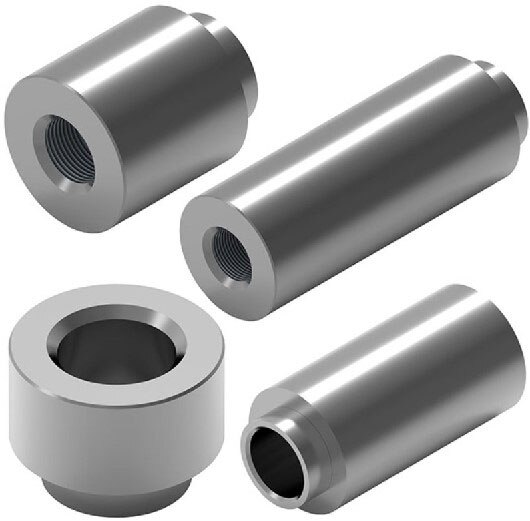

Image of Würth Elektroniks' WA-SMSA Spacer Studs AutomotiveWürth Elektronik's offers SMT assembly components qualified for automotive applications: the WA-SMSA SMT spacer studs automotive series. These SMT spacers feature high holding forces and torques, easily removable polyimide tape serving as the pick-and-place pad, and availability with through-hole via or M3 thread. WA-SMSA board-to-board connectors for SMT assembly are made of tin-plated steel and can assemble PCBs to housings or other PCBs, ranging from 1 mm to 15 mm.

Features
  • Vibration test: 10g
  • Moisture resistance: humidity 95%
  • Temperature cycling: -55°C up to +150°C, 1,000 cycles
  • Solderability
  • Mechanical shock: 100 g
  • Production site certificate: IATF 16949:2016
  • PPAP: Level 1
  • IMDS: Yes
  • Lead-free
  • RoHS and REACh compliant; halogen-free
Applications
  • Assembling of PCBs to housing and other PCBs
  • For distances from 1 mm to 15 mm
  • Full automation for fast and precise process
  • High holding forces and torques
  • Highest process reliability
  • Instantly removable polyimide tape

WA-SMSA Spacer Studs Automotive

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
ROUND SPACER M3 STEEL 9MM78614090360ROUND SPACER M3 STEEL 9MM1598 - Immediate$20.50View Details
ROUND SPACER M3 STEEL 8MM78614080360ROUND SPACER M3 STEEL 8MM462 - Immediate$19.84View Details
ROUND SPACER STEEL 3MM78614030960ROUND SPACER STEEL 3MM896 - Immediate$15.89View Details
ROUND SPACER STEEL 11MM78614110960ROUND SPACER STEEL 11MM267 - Immediate$21.16View Details
ROUND SPACER STEEL 10MM78614100960ROUND SPACER STEEL 10MM1960 - Immediate$20.50View Details
ROUND SPACER STEEL 5MM78614050960ROUND SPACER STEEL 5MM1448 - Immediate$17.20View Details
ROUND SPACER M3 STEEL 5MM78614050360ROUND SPACER M3 STEEL 5MM2065 - Immediate$17.86View Details
ROUND SPACER STEEL 2MM78614020960ROUND SPACER STEEL 2MM1493 - Immediate$15.31View Details
ROUND SPACER M3 STEEL 11MM78614110360ROUND SPACER M3 STEEL 11MM540 - Immediate$21.81View Details
ROUND SPACER M3 STEEL 15MM78614150360ROUND SPACER M3 STEEL 15MM449 - Immediate$24.37View Details
Published: 2022-02-14
