HortiCoolture. LED it grow!

New horticultural products from the high-power ceramic series from Würth Elektronik. Specially chosen wavelengths (450 nm, 660 nm and 730 nm) increase photosynthesis, optimizing plant development and growth. With outstanding PPF-value, small size and low power consumption, the WL-SMDC is the future choice for horticultural lighting.

Advantages of Horticulture LED Lighting

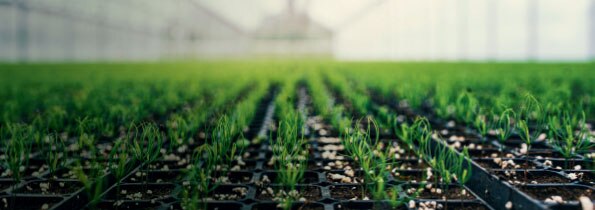

Biological Advantages

Year round cultivation
Increase of plant quality parameters
High harvest efficiency

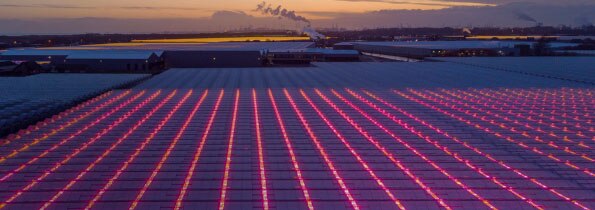

Electrical Advantages

High lifetime & efficacy of LEDs
Lower maintenance costs
Lower operating costs

Environmental Advantages

Resource gentle
Space savings
Harvest on demand

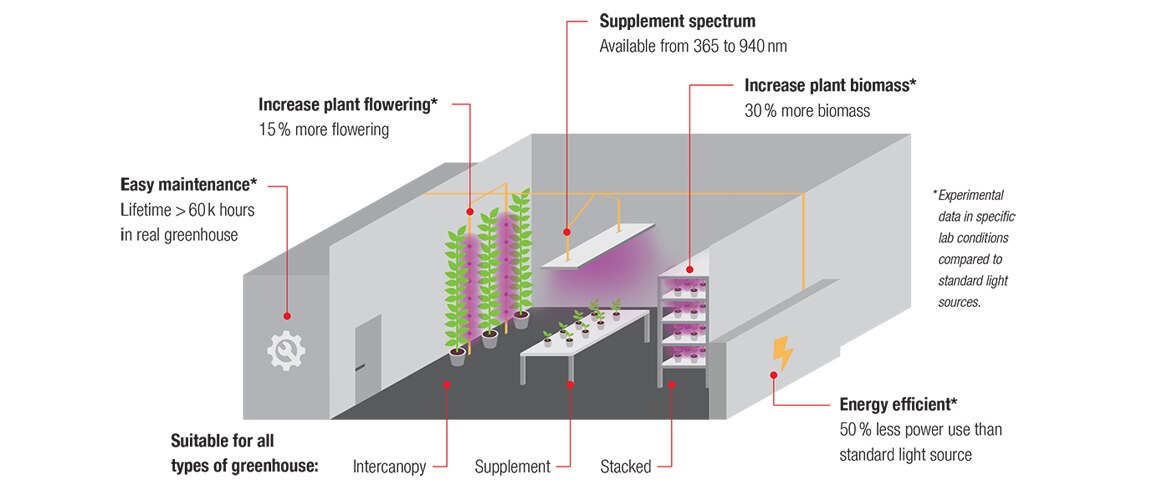

Applications of Horticulture LEDs

Supplemental Lighting in Greenhouses

The small size of the LED in combination with a low operating temperature delivers a wide range of applications. Würth Elektronik provides and selects with you the right LED for your target quality parameter in your specific application.

Application Support

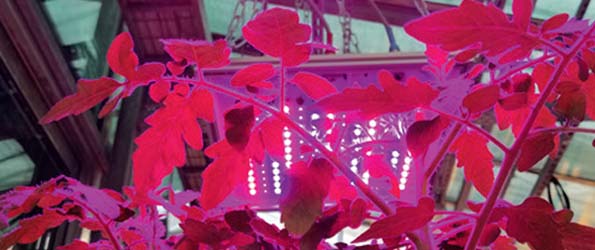

Cooperation with Universities

Through cooperations with universities and various associations, Würth Elektronik always stays up to date and knows the market needs.

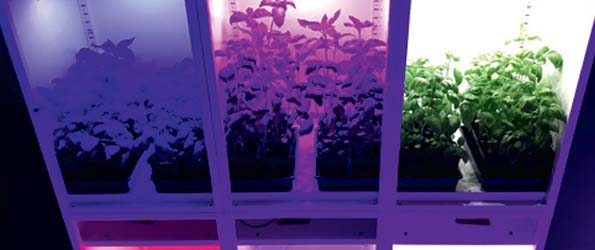

Know-how through own Tests

In our own Research Center, Würth Elektronik develops light recipes for different plants in different vegetation stages for special quality parameters.Test results: 15% more flowering, 30% more biomass, 50% more secondary plant metabolites.

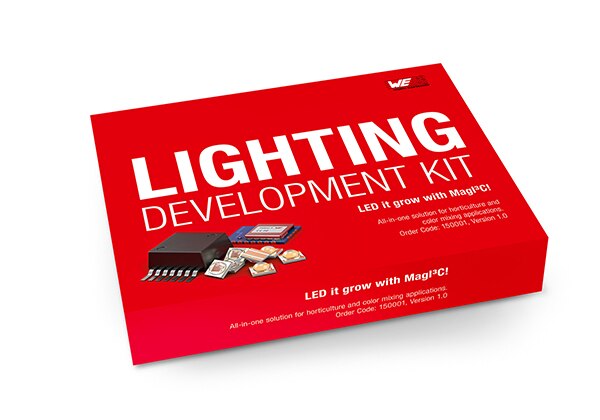

Lighting Development Kit

The Lighting Development Kit with Horticulture LEDs accelerates the development of systems for targeted plant lighting.

Characteristics:

Includes power board, horticulture panel, RGBW panel, lens, heat sink, mounting, LED panel connection lead, power supply
4 Cannels – PWM-dimming method (0 – 100%)
App “WEilluminate” to perform dimming
Conducted and radiated EMI compliant (EN55015)

View Details

Horticultures LEDs Products

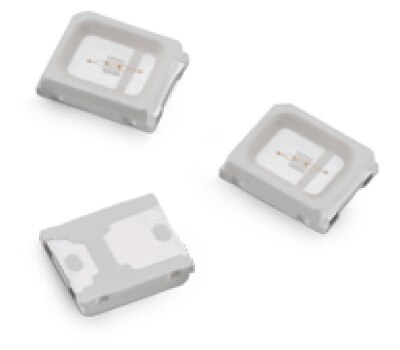

Mid Power – Horticulture LEDs Size 2835			@ 150 mA
Order Code	Emitting Color	λp (nm)	type PPF*	type PPE*
150283DS73103	Deep Blue	450	0.94 µmol/s	1.96 µmol/J
150283HS73103	Hyper Red	660	0.66 µmol/s	2.00 µmol/J
150283FS73103	Far Red	730	0.67 µmol/s**	2.03 µmol/J**
150283BS73103	Blue	463	0.66 µmol/s	1.41 µmol/J
150283GS73103	Green	517	0.37 µmol/s	0.78 µmol/J
150283RS73103	Red	629	0.50 µmol/s	1.56 µmol/J

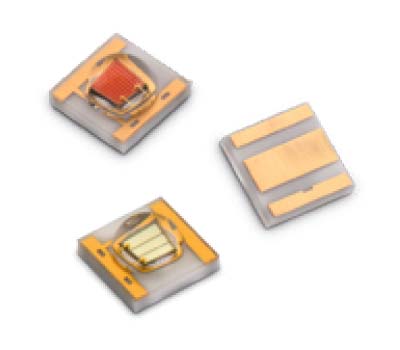

High Power – Horticulture LEDs Size 3535			@ 350 mA
Order Code	Emitting Color	λp (nm)	type PPF*	type PPE*
150353DS74500	Deep Blue	450	2.32 µmol/s	2.07 µmol/J
150353HS74500	Hyper Red	660	2.42 µmol/s	3.33 µmol/J
150353FS74500	Far Red	730	1.94 µmol/s**	3.08 µmol/J**
150353BS74500	Blue	460	1.98 µmol/s	1.77 µmol/J
150353GS74500	Green	520	0.96 µmol/s	0.80 µmol/J
150353RS74500	Red	635	1.41 µmol/s	1.84 µmol/J

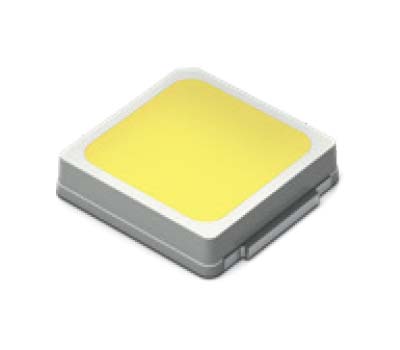

Mid Power – Fullcolor LEDs Size 3030			@ 65 mA
Order Code	Emitting Color	CCT	type PPF*	type PPE*
158303227A	Sunrise	2700	0.50 µmol/s	2.77 µmol/J
158303230A	Warm White	3000	0.50 µmol/s	2.77 µmol/J
158303240A	Moonlight	4000	1.50 µmol/J	2.80 µmol/J
158303250A	Daylight	5000	1.50 µmol/J	2.80 µmol/J
158303260A	Cool White	6000	1.50 µmol/J	2.80 µmol/J

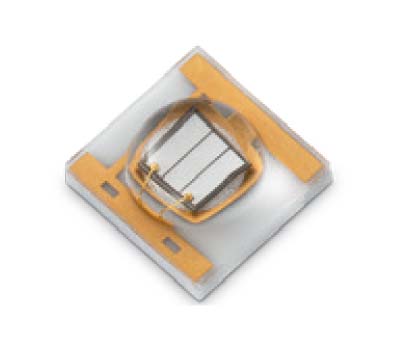

High Power – Ultraviolet LEDs Size 3535			@ 350 mA
Order Code	Emitting Color	λp (nm)	type PPF**	type PPE**
15335337AA350	Ultraviolet	365	1.68 µmol/J	1.68 µmol/J
15335338AA350	Ultraviolet	385	1.68 µmol/J	1.68 µmol/J
15335339AA350	Ultraviolet	395	1.68 µmol/J	1.50 µmol/J
15335340AA350	Ultraviolet	405	1.68 µmol/J	1.50 µmol/J
