King of

Coaxial Connectors

The Würth Elektronik SMA connector is designed for a frequency range of DC to 18 GHz at 50 Ω impedance. With its threaded-type coupling mechanism, it is perfect for securing your connection in intensive vibration environments.



Product Benefits

  • Standard interface in accordance with MIL-STD-348
  • Precise CNC machining with up to 0.003 mm tolerance
  • Center contact captivation
  • Resistant to severe conditions for up to 48 hours



Design your own Cable Assemblies

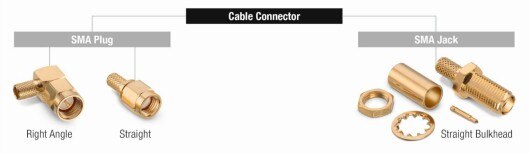

Step 1: Choose Cable Connectors

SMA Plug vs SMA Jack



Step 2: Choose Coaxial Cable Type

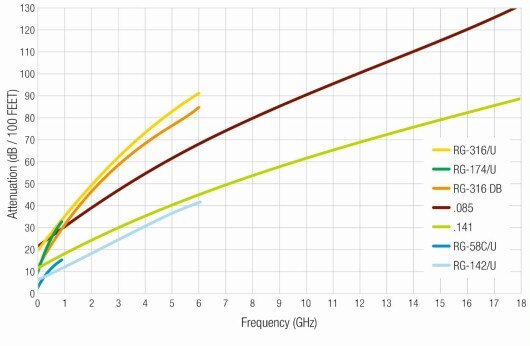

Frequency vs Attenuation by Cable Type



Step 3: Decide your Cable Length

Deciding Cable Length





Features

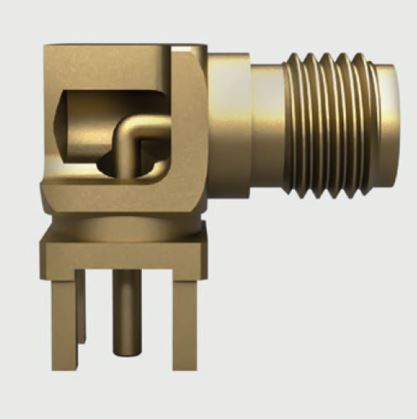

One-piece center contact to optimize signal transmission

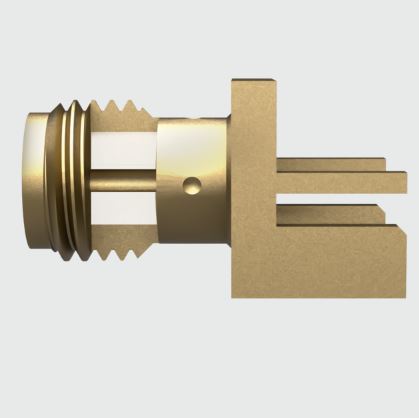

Captivation designed to strengthen mechanism

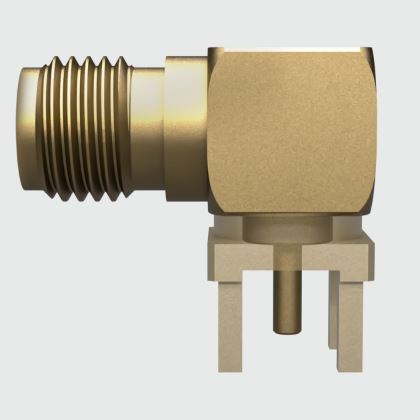

Unique assembly design to stabilize thread torque

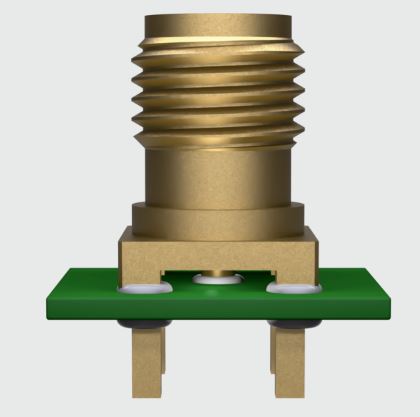

THR compatible



Applications

Telecommunications
  • Telecommunications
  • Base Stations
  • Telecom Box
Industrial
  • Industrial machine-to-machine communication
  • Automation
Data communication
  • Data communication
  • Wireless LAN
  • Wirelesss WAN
Measurement and test systems
  • Measurement and test system
  • Network analyzer
