Carbon Film MELF Resistors

High Pulse Load Capability

The CMA/CMB High Pulse Load Carbon Film MELF resistors offer the highest pulse load capability for SMD film resistors, with single pulse capability up to 3 kW and surge voltage up to 10 kV for 1.2/50µs pulse, which makes them a perfect choice in circuit protection applications. The cylindrical design also allows for a high rated dissipation up to 1 W, with resistance range from 2.2 ohms to 1.5 Mohms. High-reliability applications will benefit from AEC-Q200 qualification.

Infographic

Carbon Film MELF Resistors

Carbon Film MELF Resistors

View

3D Model

Carbon Film MELF Resistors

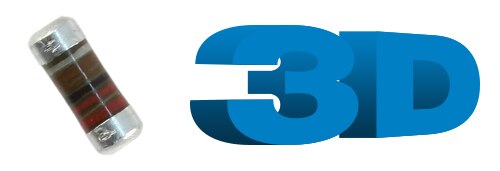

Carbon Film MELF Resistors 3D Models

Download

Capabilities and Custom Options

MELF Resistors

MELF Resistors

View

Did you Know?

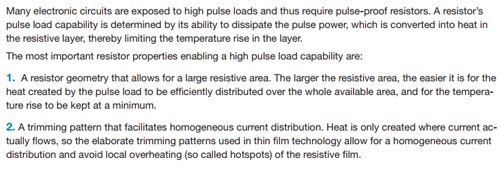

Pulse Load Capability of SMD Film Resistors

Pulse Load Capability of SMD Film Resistors

View

Application Note

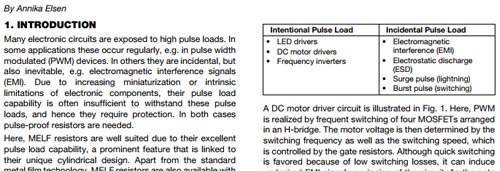

Carbon Film MELF – Pulse Load Champion

Carbon Film MELF – Pulse Load Champion

View

Sample Kit

High Pulse Load Carbon Film MELF Resistors

High Pulse Load Carbon Film MELF Resistors

View

CMA 0204

ImageManufacturer Part NumberDescriptionResistanceTolerancePower (Watts)Available QuantityPriceView Details
RES SMD 15 OHM 2% 0.4W 0204CMA02040X1509GB300RES SMD 15 OHM 2% 0.4W 020415 Ohms±2%0.4W, 2/5W19541 - Immediate$3.61View Details
RES SMD 100 OHM 2% 0.4W 0204CMA02040X1000GB300RES SMD 100 OHM 2% 0.4W 0204100 Ohms±2%0.4W, 2/5W14190 - Immediate$3.61View Details
RES SMD 10 OHM 2% 0.4W 0204CMA02040X1009GB300RES SMD 10 OHM 2% 0.4W 020410 Ohms±2%0.4W, 2/5W13238 - Immediate$3.61View Details
RES SMD 1K OHM 2% 0.4W 0204CMA02040X1001GB300RES SMD 1K OHM 2% 0.4W 02041 kOhms±2%0.4W, 2/5W11584 - Immediate$3.61View Details
RES SMD 22 OHM 2% 0.4W 0204CMA02040X2209GB300RES SMD 22 OHM 2% 0.4W 020422 Ohms±2%0.4W, 2/5W114413 - Immediate$3.61View Details
RES SMD 47 OHM 2% 0.4W 0204CMA02040X4709GB300RES SMD 47 OHM 2% 0.4W 020447 Ohms±2%0.4W, 2/5W14492 - Immediate$3.61View Details

CMB 0207

ImageManufacturer Part NumberDescriptionResistanceTolerancePower (Watts)Available QuantityPriceView Details
RES SMD 100 OHM 2% 1W 0207CMB02070X1000GB200RES SMD 100 OHM 2% 1W 0207100 Ohms±2%1W5948 - Immediate$6.82View Details
RES SMD 2.2 OHM 5% 1W 0207CMB02070X2208JB200RES SMD 2.2 OHM 5% 1W 02072.2 Ohms±5%1W30741 - Immediate$6.82View Details
RES SMD 15 OHM 5% 1W 0207CMB02070X1509JB200RES SMD 15 OHM 5% 1W 020715 Ohms±5%1W21685 - Immediate$6.82View Details
RES 100K OHM 2% 1W MELF 0207CMB02070X1003GB200RES 100K OHM 2% 1W MELF 0207100 kOhms±2%1W13624 - Immediate$6.82View Details
RES SMD 10 OHM 5% 1W 0207CMB02070X1009JB200RES SMD 10 OHM 5% 1W 020710 Ohms±5%1W10274 - Immediate$6.82View Details
RES SMD 2.2K OHM 2% 1W 0207CMB02070X2201GB200RES SMD 2.2K OHM 2% 1W 02072.2 kOhms±2%1W10000 - Immediate$6.82View Details
