Efficient LED Lighting Solutions

Solving the Challenges of High Power LED Designs with 48 Volts

What if you could reduce power, increase LED longevity and brightness, and decrease cost?

See the difference in your LED displays when you use Vicor Cool-Power ZVS buck and buck-boost regulators. They deliver higher power and higher efficiency with a lower profile for your outdoor LED displays at 12, 24, or 48 volt.

Lighting Resources

• White Paper: An Easier and More Efficient Way to Keep your LEDs Running Brighter, Longer!

• Power Delivery
• Form Factor
• Lumen Quality
• Costs

Limits of LED Power

Power Delivery More LEDs More LED panel Brighter LEDs Available Power	Form Factor Thinner panels Structural limitations Weight restrictions Unique shapes and sizes	Lumen Quality Discoloration Life-span Lumen output	Cost Operating expense Design time Reliability

Back to Top

Power Delivery

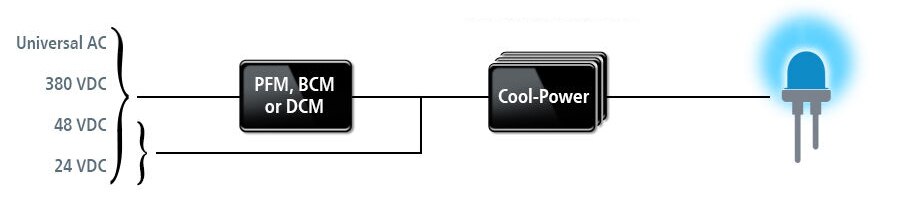

Flexible Power Designs Eliminate Multiple Converter Stages

	Multiple front-end devices for AC or any DC voltage	Cool-Power ZVS Buck & Buck-Boost devices convert from up to 60 V direct to the LED loads	LEDs/LED drivers
PFM: Isolated AC-DC Converter with PFC BCM: LV & HV Bus Converters DCM: DC-DC Converter Module Cool-Power: ZVS Buck and Buck-Boost Regulators

Back to Top

Form Factor

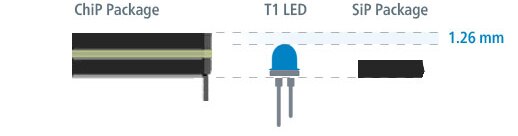

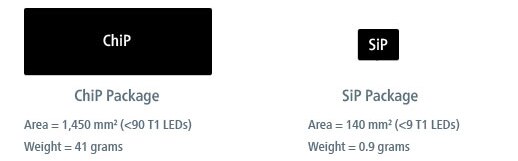

High Density Packaging Enables Creative Designs

Back to Top

Lumen Quality

High Efficiency Drives Lower Thermals Which Improves Lumen Quality

Back to Top

Cost

REDUCE COST OF...

DESIGN TIME using the PCDM and our supporting tools. CABLING BY 16X by switching from 12 V to 48 V distribution. SHIPPING AND INSTALLATION by using higher integrated modules. OPERATING EXPENSES when your system runs more efficiently and you save energy. THE BOTTOM LINE OF THE BOM by using fewer, more flexible modular components.

and GAIN BRIGHTER SOLUTIONS

Back to Top

Products

Meeting the increasing LED Lighting demands with 12 Volts to 48 Volts

Vicor Cool-Power ZVS buck and buck-boost deliver higher power, higher efficiency, and low profile for powering bright outdoor and fine pitch indoor panels and displays. Cool-Power regulators are capable of supporting existing 12 and 24 Volt power distribution architectures, while newer 48 Volt input regulators have enabled new cutting-edge designs to combine the benefits of high power density and efficiency with the benefits of lower distribution losses and reduction of conversion stages. New 48 Volt devices enable direct point-of-load conversion from 48 Volt to LED/LED Driver voltages down to 2.2 V at up to 96% efficiency with power levels up to 22 A in a compact 10 x 14 x 2.5 mm package. Cool-Power regulators are used in a broad range of LED panels and displays, everything from small front-of-bus destination panels, to large indoor commercial displays, to very large side-of-building multi-kilowatt architectural displays.
