TRV 1M Series High-Isolation DC/DC Converter

TRACO Power's TRV 1M is a series of 1 W DC/DC converters in a compact SIP-9 package with reinforced isolation of 5000 V_AC for medical and industrial applications. The series offers models with different input voltages (±10%) between 5 V_DC and 24 V_DC. With continuous short circuit protection and a low leakage current of less than 2 µA, this converter series is especially suited to protect any connected interfaces or applied parts to patients. Featuring semi-regulated outputs this series provides a good level of regulation without affecting cost efficiency.

It is an ideal solution for applications where a completely unregulated DC/DC converter would not meet regulation requirements. Together with an operating temperature range from -40°C to +85°C without derating and certifications according to IEC/EN/ES 60601-1 3^rd edition for 2xMOPP and IEC/EN/UL 62368-1 this series is suitable for many different applications where a medical isolation system and short circuit protection is needed.

Features

• I/O isolation 5000 V_AC (reinforced)
• Short circuit protection
• Semi-regulated outputs
• Input voltage ranges (±10%): 5 V_DC, 12 V_DC, 15 V_DC, and 24 V_DC
• Operating temperature range: -40°C to +85 °C (without derating)
• Certification according to IEC/EN/ES 60601-1 3^rd edition for 2xMOPP and IEC/EN/UL 62368-1
• Low leakage current: <2 μA
• Efficiency up to 85%
• Operation up to 5000 m altitude
• 5-year product warranty

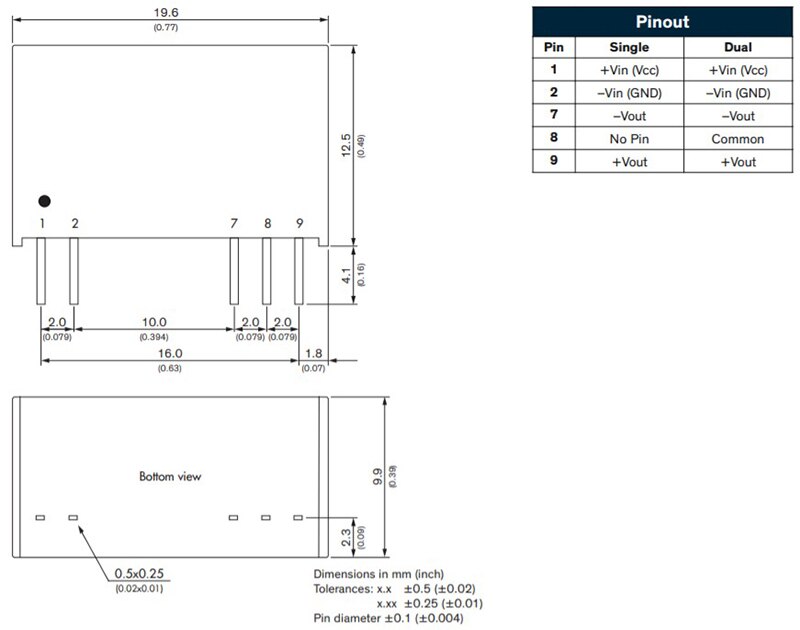

TRV 1M Diagram - Click to Enlarge
