TEN 60WIR Family High-Performance DC/DC Converters

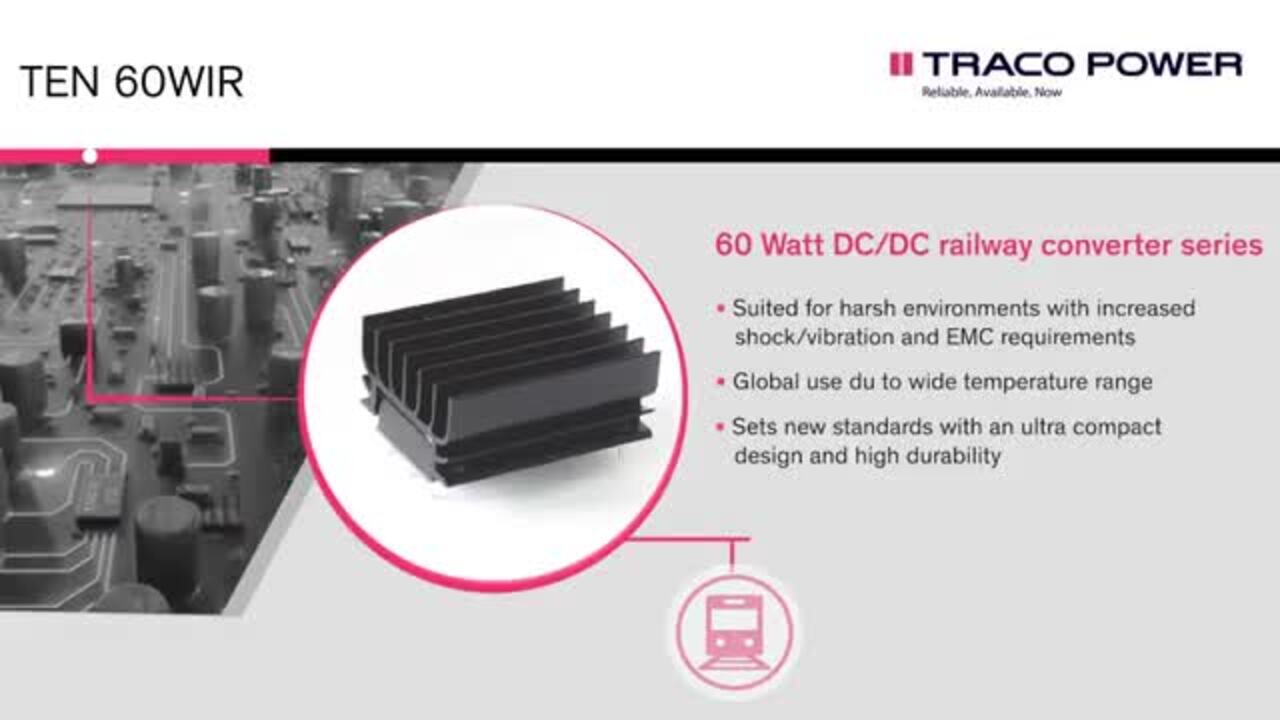

TRACO Power’s 60 W TEN 60WIR family of high-performance DC/DC converters offers an ultra-wide 4:1 input range in a 1” x 2” footprint. Standard models come pre-packaged with a heatsink extending the footprint to 1.60” x 2.00” x 1.00” for improved thermal performance.

The TEN 60WIR family consists of 24 models with a choice of three ultra-wide input ranges (9 V_IN ~ 36 V_IN, 18 V_IN ~ 75 V_IN or 36 V_IN ~ 160 V_IN) with single or dual outputs of 5 V_OUT, 12 V_OUT, 15 V_OUT, 24 V_OUT, ±12 V_OUT, ±15 V_OUT, or ±24 V_OUT. All models feature I/O isolation of 3,000 V_DC, high-efficiency operation of 91% ~ 94%, undervoltage lockout circuit, internal Pi filter for Class A emissions, and an operating temperature range of -40°C to +85°C ambient (full power to +70°C). Status and control functions include remote On/Off and V_TRIM (minimum ±10% range). All models are approved to EN50155 and EN61373 (railway applications), EN45545-2 (fire behavior), and IEC/EN/UL 62368-1 (for IT/multimedia equipment). High reliability of 724k hours (MIL-HDBK-217F at +25°C) is backed by TRACO Power’s 3-year product warranty.
