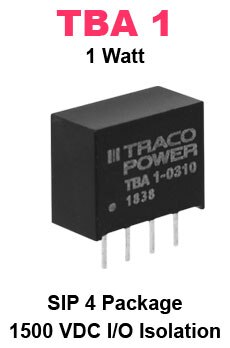

TBA 1 Series, 1 Watt DC/DC Converters
Traco Power's cost-optimized TBA 1 series DC/DC converters in a standard SIP-4 plastic package
Traco Power's TBA 1 family of DC/DC converters provide basic isolation of circuits for a broad range of low power applications where low cost, enhanced performance, and space are critical. Specifically designed to offer a low-cost solution with no concessions for quality and reliability. These new designs improve upon the industry standard SIP-4 footprint and are drop-in replacements for previous generation products. Features include increased isolation, continuous short circuit protection, higher efficiencies, and wider operating temperatures without derating.
Features
- Cost-optimized
- Continuous short circuit protection
- Up to 84% efficiency
- 1,500 VDC I/O isolation
- +40°C to +85°C operation (full load)
- >2 million hours MTBF (MIL-HDBK-217F)
- 3.3 VIN, 5 VIN, 12 VIN, 24 VIN (±10% range)
- Single outputs of 5 VOUT, 9 VOUT, 12 VOUT, 15 VOUT (semi-regulated)
- 3-year warranty

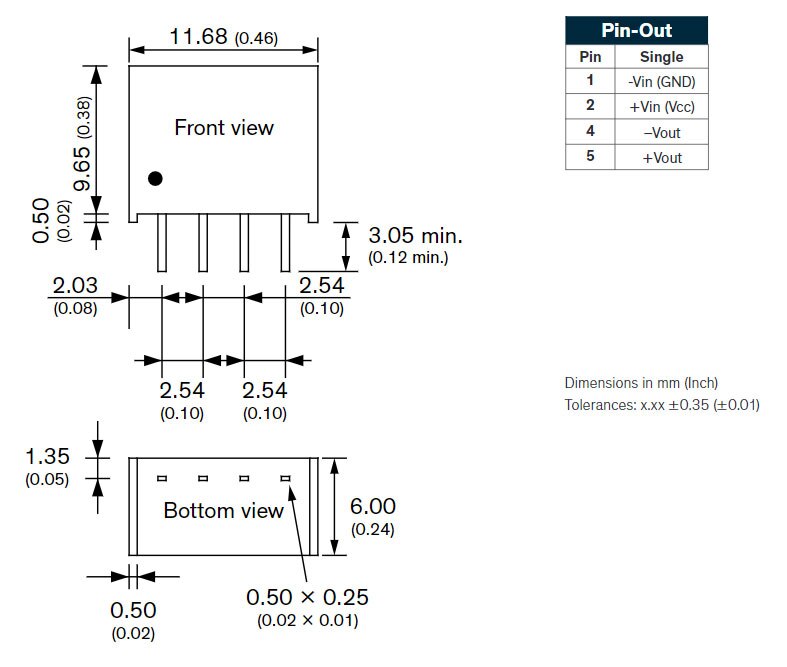

TBA 1 Series, 1 Watt Mechanical Diagram/Pin Chart
TBA 1 Series 1 Watt DC/DC Converters
| Image | Manufacturer Part Number | Description | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | TBA 1-0310 | DC DC CONVERTER 3.3V 858MW | 3.63V | 3.3V | - | 151 - Immediate | $27.25 | View Details |
|  | TBA 1-0311 | DC DC CONVERTER 5V 1W | 3.63V | 5V | - | 2360 - Immediate | $31.36 | View Details |
|  | TBA 1-0510 | DC DC CONVERTER 3.3V 858MW | 5.5V | 3.3V | - | 0 - Immediate | $27.00 | View Details |
|  | TBA 1-0511 | DC DC CONVERTER 5V 1W | 5.5V | 5V | - | 484 - Immediate | $31.94 | View Details |
| | TBA 1-0512 | DC DC CONVERTER 12V 960MW | 5.5V | 12V | - | 135 - Immediate | $27.00 | View Details |
| | TBA 1-0513 | DC DC CONVERTER 15V 975MW | 5.5V | 15V | - | 12 - Immediate | $31.94 | View Details |
| | TBA 1-0519 | DC DC CONVERTER 9V 990MW | 5.5V | 9V | - | 20 - Immediate | $27.00 | View Details |
|  | TBA 1-1211 | DC DC CONVERTER 5V 1W | 13.2V | 5V | - | 52 - Immediate | $30.71 | View Details |
| | TBA 1-1212 | DC DC CONVERTER 12V 960MW | 13.2V | 12V | - | 0 - Immediate | $27.00 | View Details |
| | TBA 1-1213 | DC DC CONVERTER 15V 975MW | 13.2V | 15V | - | 10 - Immediate | $30.71 | View Details |
| | TBA 1-1219 | DC DC CONVERTER 9V 990MW | 13.2V | 9V | - | 12 - Immediate | $31.20 | View Details |
| | TBA 1-2411 | DC DC CONVERTER 5V 1W | 26.4V | 5V | - | 2 - Immediate | $34.74 | View Details |
| | TBA 1-2412 | DC DC CONVERTER 12V 960MW | 26.4V | 12V | - | 0 - Immediate | $27.00 | View Details |
| | TBA 1-2413 | DC DC CONVERTER 15V 975MW | 26.4V | 15V | - | 250 - Immediate | $31.86 | View Details |
| | TBA 1-2419 | DC DC CONVERTER 9V 990MW | 26.4V | 9V | - | 25 - Immediate | $27.00 | View Details |
