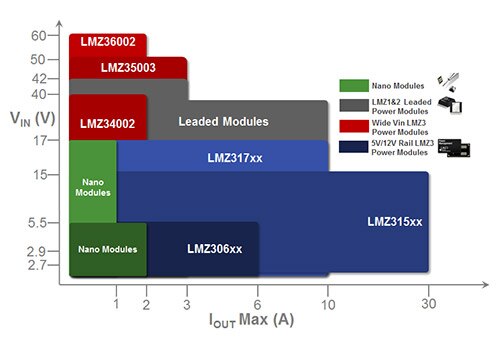

SIMPLE SWITCHER® Power Modules

Nano-Series Power Modules

SIMPLE SWITCHER Nano modules are ideal for space-constrained applications. Use Nano modules to reduce board area from the intermediate voltage rail to the point-of-load in applications with space and height limitations while providing enhanced system performance.

Tiny modules for point-of-load applications requiring up to 2A

• Input voltage range:
  2.7V to 17V
• Output current up to 2A
• Tiny packaging
• Low Output Ripple

Part Number	Vin (V)	Iout (A)	Vout (V)	Package Size (mm)
LMZ20501	2.7 to 5.5	1	0.8 to 3.6	3.5 x 3.5 x 1.75
LMZ20502	2.7 to 5.5	2	0.8 to 3.6	3.5 x 3.5 x 1.75
LMZ21700	3 to 17	0.65	0.9 to 6	3.5 x 3.5 x 1.75
LMZ21701	3 to 17	1	0.9 to 6	3.5 x 3.5 x 1.75
LMZ10500	2.7 to 5.5	0.65	0.6 to 3.6	3.0 x 2.5 x 1.43mm
LMZ10501	2.7 to 5.5	1	0.6 to 3.6	3.0 x 2.5 x 1.43mm

LMZ3-Series Power Modules

The SIMPLE SWITCHER LMZ3 power modules integrate a DC/DC converter, inductor, and passives into a small, thin QFN package. As few as 3 external components are required for high performance and high density point-of-load design – making layout extremely simple. Adding to the LMZ-1 and LMZ-2 series, the SIMPLE SWITCHER power module portfolio of more than 50 devices, is the industry’s largest.

High-power density modules for applications requiring a small footprint and ease-of-use

• Input voltage range:
  2.95V to 50V
• Output current up to 30A
• Feature rich and flexible
• Only 3 external components required

Part Number	Vin (V)	Iout (A)	Vout (V)	Package Size (mm)
LMZ36002	4.5 to 60	2	2.5 to 7.5	10 x 10 x 4.3
LMZ31530	3 to 14.5	30	0.6 to 3.6	16 x 15 x 5.8
LMZ31520	3 to 14.5	20	0.6 to 3.6	16 x 15 x 5.8
LMZ30602	2.95 to 6	2	0.8 to 3.6	9 x 11 x 2.8
LMZ30604	2.95 to 6	4	0.8 to 3.6	9 x 11 x 2.8
LMZ30606	2.95 to 6	6	0.8 to 3.6	9 x 11 x 2.8
LMZ31503	4.5 to 14.5	3	0.8 to 5.5	9 x 15 x 2.8
LMZ31506H	4.5 to 14.5	6	1.2 to 5.5	9 x 15 x 2.8
LMZ31506	4.5 to 14.5	6	0.6 to 5.5	9 x 15 x 2.8
LMZ31710	2.95 to 17	10	0.6 to 5.5	10 x 10 x 4.3
LMZ35003	7 to 50	2	2.5 to 15	9 x 11 x 2.8
LMZ34002	4.5 to 40	2	-3 to -17	9 x 11 x 2.8

LMZ1-Series Power Modules

The LMZ1-series of SIMPLE SWITCHER power modules are ideal for applications requiring a standard feature set. All power modules in the LMZ1-series have a precision enable pin and soft-start pin.

Easy-to-use modules for applications requiring high input voltages (up to 42V)

• Input voltage range:
  2.95V to 42V
• Output current up to 10A
• Output voltages up to 24V
• Superior Thermal Performance

Part Number	Vin (V)	Iout (A)	Vout (V)
LMZ10503/04/05	2.95 to 5.5	3/4/5	0.8 to 5
LMZ12001/02/03	4.5 to 20	1/2/3	0.8 to 5
LMZ14201/02/03	6 to 42	1/2/3	0.8 to 5
LMZ12008/10	6 to 20	8/10	0.8 to 5
LMZ13608/10	6 to 36	8/10	0.8 to 5

LMZ2-Series Power Modules

The LMZ2-series power modules (LMZ2xxxx) are available in output currents up to 10A with additional features for powering high current intermediate rails, FPGAs, and noise sensitive applications. They also feature a frequency synchronization pin that controls the switching frequency of the internal circuitry, and a current sharing pin for paralleling multiple power modules together for achieving up to 60A of output current.

Frequency Synchronization

• Optimize efficiency and control switching noise in noise-sensitive systems with the power module's synchronizable switching frequency.
• Synchronization pin can be set to a certain frequency for ease of filtering.
• Multiple power modules can operate at the same frequency or phase shifted to reduce input RMS current and ripple voltage.

Current Sharing

Parallel multiple modules for up to 60A of output current in high-current intermediate rail and FPGA applications.

Easy-to-use modules for applications requiring high input voltages (up to 36V), frequency sync, and current sharing

• Input voltage range:
  6V to 36V
• Output current up to 10A
• Up to 60A with Current Sharing
• Superior Thermal Performance

Part Number	Vin (V)	Iout (A)	Vout (V)
LMZ22003/5	6 to 20	3/4	0.8 to 5
LMZ23603/5	6 to 36	3/4	0.8 to 6
LMZ22008/10	6 to 20	8/10	0.8 to 6
LMZ23608/10	6 to 36	8/10	0.8 to 6

Extended Temperature and High Output Voltage Power Modules

High Output Voltage Power Modules

The LMZ1420xH SIMPLE SWITCHER power modules have an output voltage range from 5V to 30V, while the LMZ1360xH and LMZ2360xH modules have an output voltage range from 3V to 16V. These power modules are ideal for intermediate rail conversions, powering fans or other types of non-traditional points of load, and for sensing applications requiring voltages below -6V.

Extended Temperature (EXT) Family of Power Modules

The SIMPLE SWITCHER EXT power modules provide excellent performance in the most extreme conditions, with extended ambient temperatures guaranteed down to -55° C and shock and vibration compliant to meet military MIL-STD-883 standards.

Ruggedized modules for applications in harsh environments.

• Input voltage range: 2.95V to 42V
• Output current up to 5A
• -55C to 125C Junction Temperature Range
• MIL-STD-883 Shock and Vibration Tested

Part Number	Vin (V)	Iout (A)	Vout (V)
LMZ10503/04/05EXT	2.95 to 5.5	3/4/5	0.8 to 5
LMZ12001/02/03EXT	4.5 to 20	1/2/3	0.8 to 5
LMZ14201/02/03EXT	6 to 42	1/2/3	0.8 to 5
LMZ14201H/02H/03H	6 to 42	1/2/3	5 to 30
