Taiwan Semiconductor

Wide Bandgap SiC 650 V Schottky Barrier Diodes

Taiwan Semiconductor's SiC MPS diodes serve as the ultimate tool for enhancing efficiency, reliability, and performance

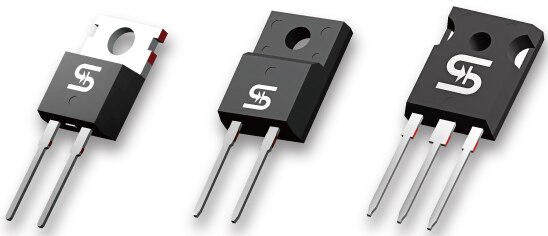

Image of Taiwan Semiconductor's Wide Bandgap Schottky Barrier DiodesTaiwan Semiconductor's 650 V silicon carbide Schottky barrier diodes are suitable for high-efficiency AC/DC, DC/DC, and DC/AC conversion applications. Unlike silicon-based fast-recovery rectifiers, these SiC devices have negligible switching losses due to low capacitive charge (QC). This makes them suitable for high-speed switching applications, benefiting circuit designs with increased power density and can reduce overall solution size.

The SiC devices combine Schottky diodes for low forward voltage drop and P-N junction diodes for high reverse breakdown voltage, making them the ultimate protectors for power lines, control buttons, and data cables.

Features
  • Max. junction temperature: +175°C
  • High-speed switching
  • High-frequency operation
  • Positive temperature coefficient on VF
  • SPICE models available
  • Thermal models available
  • PFC boost diode
  • Free-wheeling diode
  • Full wave bridge
  • Vienna bridgeless circuit
Applications
  • AC/DC conversion, PFC boost
  • DC/DC, solar inverters
  • Data center and server power
  • Telecom, datacom power
  • UPS systems

Diode Arrays

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
DIODE ARR SCHOTT 650V 16A TO-247TSCDH16065G1DIODE ARR SCHOTT 650V 16A TO-247300 - Immediate$51.24View Details
DIODE ARR SCHOTT 650V 20A TO-247TSCDH20065G1DIODE ARR SCHOTT 650V 20A TO-247300 - Immediate$72.83View Details
DIODE ARR SCHOTT 650V 30A TO-247TSCDH30065G1DIODE ARR SCHOTT 650V 30A TO-247279 - Immediate$75.54View Details
DIODE ARR SCHOTT 650V 40A TO-247TSCDH40065G1DIODE ARR SCHOTT 650V 40A TO-247283 - Immediate$108.39View Details

Single Diodes

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
DIODE SCHOTTKY 650V 6A ITO220ACTSCDF06065G1DIODE SCHOTTKY 650V 6A ITO220AC931 - Immediate$26.36View Details
DIODE SCHOTTKY 650V 6A TO220ACTSCDT06065G1DIODE SCHOTTKY 650V 6A TO220AC773 - Immediate$26.28View Details
DIODE SCHOTTKY 650V 8A TO220ACTSCDT08065G1DIODE SCHOTTKY 650V 8A TO220AC785 - Immediate$32.11View Details
DIODE SCHOTTKY 650V 8A ITO220ACTSCDF08065G1DIODE SCHOTTKY 650V 8A ITO220AC973 - Immediate$32.19View Details
DIODE SCHOTTKY 650V 10A TO220ACTSCDT10065G1DIODE SCHOTTKY 650V 10A TO220AC4946 - Immediate$37.61View Details
DIODE SCHOTTKY 650V 10A ITO220ACTSCDF10065G1DIODE SCHOTTKY 650V 10A ITO220AC974 - Immediate$37.93View Details
DIODE SCHOTTKY 650V 12A ITO220ACTSCDF12065G1DIODE SCHOTTKY 650V 12A ITO220AC988 - Immediate$42.86View Details
DIODE SCHOTTKY 650V 12A TO220ACTSCDT12065G1DIODE SCHOTTKY 650V 12A TO220AC990 - Immediate$43.44View Details
DIODE SCHOTTKY 650V 16A ITO220ACTSCDF16065G1DIODE SCHOTTKY 650V 16A ITO220AC999 - Immediate$53.45View Details
DIODE SCHOTTKY 650V 16A TO220ACTSCDT16065G1DIODE SCHOTTKY 650V 16A TO220AC994 - Immediate$54.11View Details
DIODE SCHOTTKY 650V 20A ITO220ACTSCDF20065G1DIODE SCHOTTKY 650V 20A ITO220AC961 - Immediate$59.37View Details
DIODE SCHOTTKY 650V 20A TO220ACTSCDT20065G1DIODE SCHOTTKY 650V 20A TO220AC957 - Immediate$59.37View Details
Published: 2024-08-07
