XZxxxx55W-8 Series LEDs

SunLED offers its XZxxxx55W-8 Series, 3.2 mm x 1.6 mm, bi-color SMD chip LED lamps in ultra-bright colors

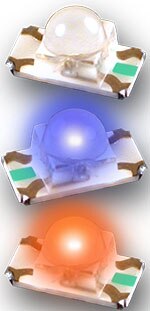

Image of SunLED's XZxxxx55W-8 Series LEDsSunLED is excited to release a series that redefines high-intensity, low-current LEDs. Designed and built to meet and exceed the most demanding visibility requirements, the XZxxxx55W-8 series outshines nearly all other LEDs. Developed from a combination of AlInGaP and InGaN dies, this series ensures a long and robust lifespan while outputting a brilliant array of colors.

With a standard 1206 footprint of 3.2 mm x 1.6 mm, this bi-color SMD LED uses a configuration of ultra-bright colors paired with a dome lens to provide one of the highest intensity options available in the industry operating with a current of IF=20 mA. This package is accompanied by a 4-pad design allowing independent connections for each color channel, and maximizing circuit-design flexibility. This series is excellent for any light-pipe application, high-visibility indication requirements, or where high brightness and low-current operation is needed.

Features
  • Industry standard 1206 footprint
  • Dimensions: 3.2 x 1.6 x 1.8 mm (L x W x H)
  • Ultra-bright intensity output at IF=20 mA
  • SMD moisture sensitivity level (MSL): 3
  • Dome lens with narrow viewing angle of 30°
  • Independent anode/cathode for each color
  • Available colors: red/yellow, red/green, red/blue, and yellow/green
Applications
  • Light pipe
  • Consumer electronics
  • Outdoor visible indication
  • Medical and healthcare
  • Mobile devices and hand-held products
  • Industrial equipment
  • Instrumentation
  • Power management systems
  • Safety and security

XZxxxx55W-8 Series LEDs

ImageManufacturer Part NumberDescriptionLens ColorAvailable QuantityPriceView Details
LED RED/YLW CLEAR 4SMDXZM2CRKCYK55W-8LED RED/YLW CLEAR 4SMDColorless7692 - Immediate$6.91View Details
LED GREEN/RED CLEAR 4SMDXZM2CRKM2DG55W-8LED GREEN/RED CLEAR 4SMDColorless34591 - Immediate$7.74View Details
LED BLUE/RED CLEAR 4SMDXZM2CRKFBB55W-8LED BLUE/RED CLEAR 4SMDColorless11268 - Immediate$6.50View Details
LED GRN/YLW CLEAR 4SMDXZM2CYKM2DG55W-8LED GRN/YLW CLEAR 4SMDColorless31329 - Immediate$7.74View Details

Associated Parts

ImageManufacturer Part NumberDescriptionLens TransparencyAvailable QuantityPriceView Details
LED RED CLEAR 2SMDXZMDK55W-A2RTLED RED CLEAR 2SMDClear26823 - Immediate$2.39View Details
LED YELLOW CLEAR 2SMDXZMYK55W-A2RTLED YELLOW CLEAR 2SMDClear9782 - Immediate$2.47View Details
LED BLUE CLEAR 2SMDXZCBD55W-A2RTLED BLUE CLEAR 2SMDClear1980 - Immediate$3.29View Details
LED GREEN CLEAR 2SMD BOTTOM ENTXZVG55W-A2RTLED GREEN CLEAR 2SMD BOTTOM ENTClear68570 - Immediate$2.63View Details
LED GREEN CLEAR 2SMDXZDGK55W-A2RTLED GREEN CLEAR 2SMDClear9200 - Immediate$4.03View Details
LED RED CLEAR 2SMDXZM2CRK53W-8LED RED CLEAR 2SMDClear5730 - Immediate$3.79View Details
LED RED CLEAR CHIP SMDXZMDK53W-8LED RED CLEAR CHIP SMDClear34699 - Immediate$2.14View Details
LED GREEN CLEAR CHIP SMDXZVG53W-8LED GREEN CLEAR CHIP SMDClear105710 - Immediate$2.22View Details
LED YELLOW CLEAR CHIP SMDXZM2ACY53W-8LED YELLOW CLEAR CHIP SMDClear11025 - Immediate$5.27View Details
LED YELLOW CLEAR CHIP SMDXZMYK53W-8LED YELLOW CLEAR CHIP SMDClear34547 - Immediate$2.14View Details
LED ORANGE CLEAR 2SMDXZM2MOK53W-8LED ORANGE CLEAR 2SMDClear9119 - Immediate$3.79View Details
LED GREEN CLEAR 2SMDXZDGK53W-8LED GREEN CLEAR 2SMDClear5428 - Immediate$3.95View Details
LED GREEN/RED CLEAR CHIP SMDXZMDKVG55W-8LED GREEN/RED CLEAR CHIP SMDClear255191 - Immediate$4.53View Details
LED RED CLEAR CHIP SMDXZM2ACR55W-3LED RED CLEAR CHIP SMDClear46207 - Immediate$6.34View Details
LED GREEN CLEAR CHIP SMDXZM2DG55W-3LED GREEN CLEAR CHIP SMDClear38906 - Immediate$8.07View Details
LED YELLOW CLEAR CHIP SMDXZM2ACY55W-3LED YELLOW CLEAR CHIP SMDClear7778 - Immediate$6.34View Details
LED GREEN/RED CLEAR 4PLCC SMDXZMDKVG45SLED GREEN/RED CLEAR 4PLCC SMDClear7560 - Immediate$4.36View Details
LED GREEN/RED CLEAR CHIP SMDXZMDKVG54W-4LED GREEN/RED CLEAR CHIP SMDClear57798 - Immediate$3.05View Details
LED GRN/YLW CLEAR CHIP SMDXZVGMYK54W-4LED GRN/YLW CLEAR CHIP SMDClear1840 - Immediate$3.29View Details
