Souriau TRIM TRIO^® Connectors

UTSX Series

Featuring reinforced bayonet pins and a broader range of layouts, sizes, and mechanical keyings compared to its predecessor, the UTS series, the UTSX series shares a unique design of contacts that are interchangeable across several of their connector series, allowing users to simplify their supply chain. For series that are intermateable, such as the UTS, UTGX and UTO series, users can easily switch from one series to the other across the applications in their operation. UTSX series connectors are waterproof, lightweight, withstand 250 mating cycles, and are manufactured from materials that have UV and corrosion resistant properties. They are IP68/69K rated even in dynamic conditions and available with multiple contact layouts for design flexibility, including hybrid power/signal and hybrid copper/fiber. The easy-to-grip connectors have a one-third bayonet coupling to confirm the connection with an audible and tactile click. The UTSX series is compliant with IEC and UL standards and resistant to shock, ensuring safe connections for installers and operators. The UTSX series is perfect for outdoor solar and wind management applications, as well as conditions where humidity or corrosive agents would compromise metal components.

Features & Benefits

• IK06 impact resistant
• IP68/69K
• UV resistant for up to 5 years outdoors
• Wide choice of configurations

Applications

• Off-road vehicles
• Railways
• Energy
• Lighting
• eMobility
• Instrumentation
• Measurement
• Robotics
• Building automation
• Infrastructure
• Machinery

UTSX Resources

• UTSX Series Catalog

Featured Products

UTGX Series

Waterproof, shock-proof and UV resistant, the UTGX series can withstand continuous underwater immersion, routine pressure washing, dirt and dust and other harsh conditions. Ideal for both indoor and outdoor applications with a lifespan of up to 27 years in-application, the UL/IEC certified UTGX series connectors are a safe and reliable solution. The UTGX series can be used in a wide range of configurations and electrical layouts, allowing you to save space on your equipment. While the bayonet locking mechanism ensures a quick and secure connection and disconnection, other updates to the lightweight design make the UTGX series connectors easier than ever for operators to handle quickly. Especially in high-mating cycle applications, UTGX will save time and money for your business. The new Souriau UTGX Series uses Trim Trio^® contacts. A single design for machined, stamped and formed and highspeed contacts, making it quicker, easier and more cost effective to upgrade. By using the same contacts, the switch from one connector series to another doesn’t require tool or panel cut-out modifications.

Features & Benefits

• Lifespan: up to 27 years in industrial environments (ISO21207) - Method B/5 cycles
• UL 1977 (ECBT2 / ECBT8) qualified and IEC61984 certified
• Outdoor-use qualified (UL50/UL50E Level 6P) and shock-proof certified up to IK07 (IEC 62262)
• Waterproof: IP68/69K dynamic mated (unmated for Hi-Seal versions)
• 5-year resistance to UV exposure: F1 material (UL746C)
• Mating cycles: 500
• RoHS and REACH compliant

UTGX Resources

• UTGX Catalog
• UTGX Brochure
• UTGX Datasheet
• UTGX Certificate of Compliance

Featured Products

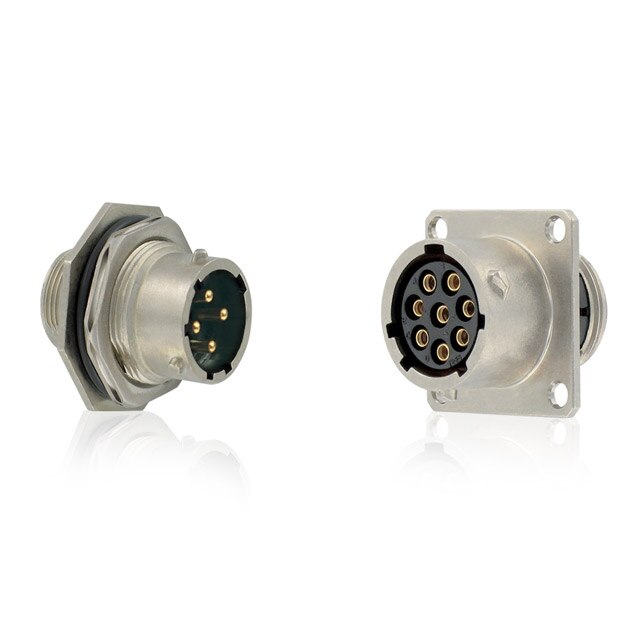

UTO Series

Souriau-Sunbank by Eaton's UTO series is a range of circular connectors designed for use in harsh environments or where EMI shielding is desired. The connectors are made of high quality metals and can offer IP67, IP68 & IP69K in mated condition. The metal shells of the UTO are strong and rugged to resist every environmental and mechanical requirement for indoor and outdoor applications. Amongst several characteristics, UTO offers possibilities on shielding, sealing, and salt spray. UTO is available in 8 shell sizes, 27 insert arrangements, and inter-mateable with the UTG, UTP, and UTS connector series*.

Features & Benefits

• IP68/69K Dynamic Mated - Ideal for outdoor and indoor dynamic applications requiring continuous underwater immersion, routine pressure washing and dust protection.
• 1/3 Bayonet Coupling - With only 1/3 twist of the bayonet coupling system, connectors are mated with audible "click" and tactile feel to confirm proper mating. This mating feature eliminates connection uncertainty and reduces time and labor during installation.
• Validated up to 500 mating cycles
• Mixed Power & Signal Layouts - Power supply and signal transmission can be combined in a unique interconnect solution to reduce system complexity and minimize component/installation costs.
• Salt Spray 48 & 96 Hours - Designed to withstand climate ingress and exposure to salt spray or corrosive atmospheres while still maintaining mechanical and electrical functionality.
• EMI Shielded - 98 dB at 1 MHz & UL/IEC. Qualified and compatible to be used in electromagnetic radiation areas and ensures proper signal integrity and transmission.

*Product series are conditionally inter-mateable with same shell size/layout pattern but IP, Electrical and Mechanical performances may be affected and in accordance with the lower performance denominator level.

UTO Resources

• UTO Series Catalog
• Flexible Conduit Connectors
• Lighting Connectors
• Solar Energy Systems
• Connectors for Off-Road

Featured Products

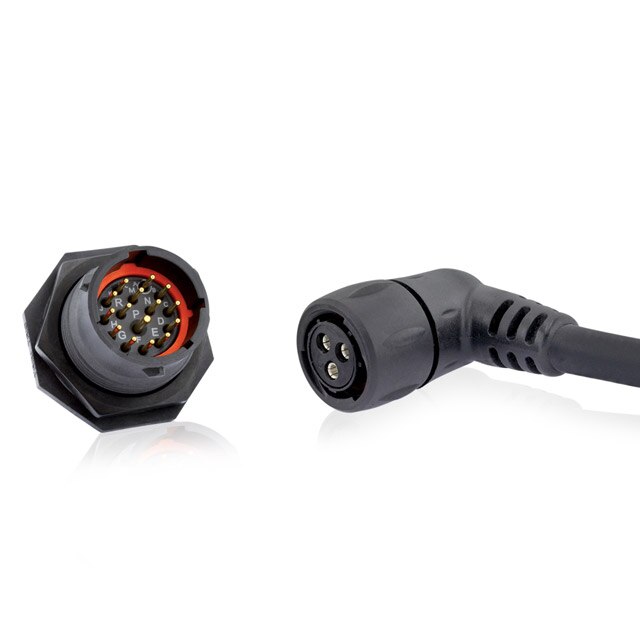

UTS Series

UTS series is a range of ruggedized plastic circular connectors designed for use in harsh environments. The system predominantly uses crimp termination but there are also options of Solder-cup, Screw Termination, PCB, and Fiber Optic. The connectors are made of high quality lightweight plastics and IP68/IP69K sealing performance in mated or unmated conditions. The latter applies when ‘Hi-Seal’ solder-cup or O-ring contacts are utilized.

Features & Benefits

• IP68/69K Dynamic Mated & Unmated - Ideal for outdoor and indoor dynamic applications requiring continuous underwater immersion, routine pressure washing and dust protection.
• 1/3 Bayonet Coupling - With only 1/3 twist of the bayonet coupling system, connectors are mated with audible "click" and tactile feel to confirm proper mating. This mating feature eliminates connection uncertainty and reduces time and labor during installation.
• Validated up to 250 mating cycles
• Mixed Power & Signal Contacts Power supply and signal transmission can be combined in a unique interconnect solution to reduce system complexity and minimize component installation cost.
• Qualified & Certified - In accordance with:
  • UL 1977 - Certificate ECBT2, File number: E169916
  • CSA C22.2 n°182.3 - Certificate ECBT8, File number: E169916
• UV resistant with No Degradation Over Time - No mechanical deterioration or important variation in color after 5 years of exposure in natural environment (equivalent exposure to sun and moisture as per ISO4892) and F1 rated per UL 746C
• Salt Spray ≥500 Hours - Designed to withstand climate ingress and exposure to salt spray or corrosive atmospheres while still maintaining mechanical and electrical functionality.

*Product series are conditionally inter-mateable with same shell size/layout pattern but IP, Electrical and Mechanical performances may be affected and in accordance with the lower performance denominator level.

UTS Resources

• UTS Series Catalog
• UTS MPO Series
• Flexible Conduit Connectors
• Lighting Connectors
• Solar Energy Systems
• Connectors for Off-Road
• Extreme Environments
• FTTH-FTTA Fiber Home & Antenna

Featured Products

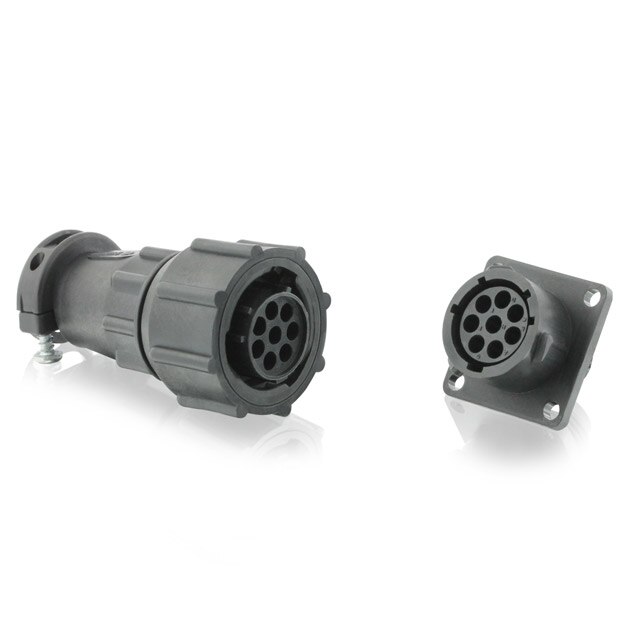

UTP Series

Souriau-Sunbank by Eaton's UTP full plastic industrial circular connectors are a range of multiway connectors. UTP provides the complete answer to the need for economical lightweight, robust circular connectors and is unique in offering a plastic bayonet coupling ring incorporating a metal wave spring, which locks with an audible positive “click”. The UTP is available in 8 shell sizes, 11 insert arrangements, and are inter-mateable and interchangeable with the UTG, UTO, and UTS series.*

Features & Benefits

• Available in plug and receptacle versions for both male and female contacts
• Connectors and accessories are molded from highly durable glass-filled thermoplastic
• IP40 or IP65 with cable clamp or cable gland for water-protected applications.
• Flammability rating: UL94-V0
• UL recognized - File Number E238675
• Plastic bayonet ring:
  • Vibration proof thermoplastic
  • Metal wave spring loaded
  • Locks with audible positive “click”

*Product series are conditionally inter-mateable with same shell size/layout pattern but IP, Electrical and Mechanical performances may be affected and in accordance with the lower performance denominator level.

UTP Resources

• UTP Series Catalog

Featured Products

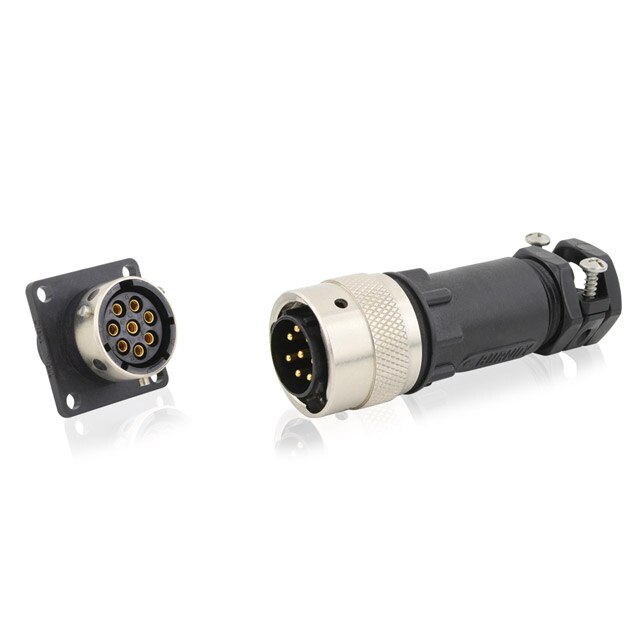

UTG Series

Souriau-Sunbank by Eaton's UTG hybrid plastic + metal coupling industrial circular connectors are a range of multiway connectors to provide the complete answer to the need for lightweight, robust circular connectors. They are available in 8 shell sizes, 17 insert arrangements, and are inter-mateable, interchangeable and inter-mountable with the UTO, UTP, and UTS series.*

Features & Benefits

• IP65 rated
• Available in plug and receptacle versions for both male and female contacts.
• Connectors and accessories are molded from highly durable glass-filled thermoplastic.
• Flammability rating: UL94-V0
• UL approved – File Number E31151
• Metal bayonet ring:
  • Metal wave spring loaded.
  • Locks with audible positive “click”
  • Assures 500 mating cycles

*Product series are conditionally inter-mateable with same shell size/layout pattern but IP, Electrical and Mechanical performances may be affected and in accordance with the lower performance denominator level.

UTG Resources

• UTG Series Catalog

Featured Products

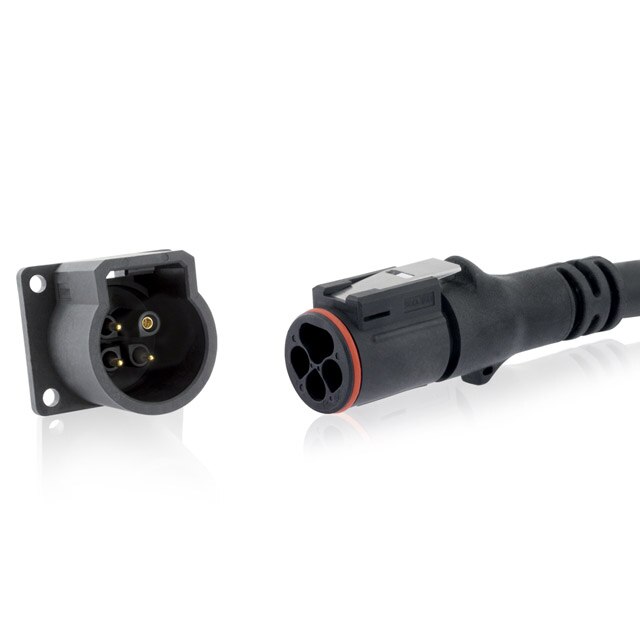

UTL Series

Souriau-Sunbank by Eaton's UTL Series is a plastic connector range that meets UL/IEC and current breaking capacity safety standards. The stainless steel latch coupling system is simple to use with only 1 finger, connectors can be easily mated or unmated. The "Key hole" design of the coupling system and audible click offers blind mating confirmation. This series is ideal for overhead installations or in dark conditions where the mechanical discriminations allow easy mating to avoid connector damage. The UTL Series is rated at IP68/69K even in dynamic conditions and remains sealed when used continuously underwater or cleaned using a high pressure hose while cable is moving. The UTL Series uses an outdoor rated material per Underwriters Laboratories and boasts a UL94 5VA flammability rating.

Features & Benefits

• IP68/69K Dynamic Mated & Unmated - Ideal for outdoor and indoor dynamic applications requiring continuous underwater immersion, routine pressure washing and dust protection.
• Sensitive & Audible Click - Unique "Keyhole" shape of the connector allows users to mate and unmate in blind conditions with audible click confirming connection. Easy to use thumb latch design reduces labor and time during installations.
• Validated up to 1,000 mating cycles
• Qualified & Certified - UL File: E169916 - VDE customer n°: 4282400
• UV resistant with No Degradation and Long Outdoor Life - No mechanical degradation or important color variation due to environmental exposure (F1 material per the UL 746C).
• Mixed Power & Signal Layouts --Power supply and signal transmission can be combined in a unique interconnect solution to reduce system complexity and minimize component/installation costs.
• Salt Spray ≥1,000 Hours - Designed to withstand climate ingress and exposure to salt spray or corrosive atmospheres while still maintaining mechanical and electrical functionality.

*Product series are conditionally inter-mateable with same shell size/layout pattern but IP, Electrical and Mechanical performances may be affected and in accordance with the lower performance denominator level.

UTL Resources

• UTL Series Catalog
• Lighting Connectors
• Solar Energy Systems
• Extreme Environments
• Connectors for Off-Road

Featured Products

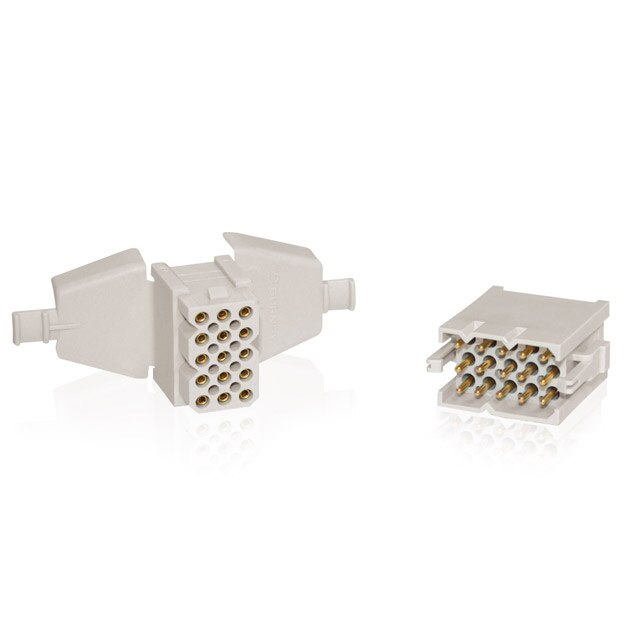

SMS Series

Souriau-Sunbank by Eaton's versatile and easy to use “SMS” Quick Mating panel and cable connectors are a highly cost-effective system approach to solving the constant demand for more interconnection solutions and techniques. A full plastic solution offered in either Wire attachment or PCB mounting options to provide rapid assembly/installation without requiring additional mounting hardware. Panel receptacle connectors simply snap and lock into panel cut-outs and cable plugs quickly connect and disconnect with positive retention locks. Just push to mate then press and release to un-mate. In addition, cable plug connectors also feature pin-protection skirts, positive polarization and are offered with or without integrated strain relief hoods. Cable receptacle connectors (with integrated strain relief hoods) are available to mate with the cable plug connectors for cable-to-cable solutions when needed.

Features & Benefits

• Available in 10 contact arrangements
• Standard SMS = IP30 & IP40
• SMS IP Sealed Version = IP67 and compliant to Fire & Smoke Standards (CEN / TS 45-545, NFF 16-101/16-102)
• Self-mountable panel receptacle with positive housing retention
• Cable plugs with retaining latches for positive locking
• Cable plug has pin protection skirt to prevent damage of male contacts
• Positive polarization keys prevent mismating
• Cable plug and receptacle have integrated strain relief hood which can accept a wide range of cables
• UL recognized - File Number E238675
• CSA certified - File Number LR44961-21

*Product series are conditionally inter-mateable with same shell size/layout pattern but IP, Electrical and Mechanical performances may be affected and in accordance with the lower performance denominator level.

SMS Resources

• SMS Series Catalog
• SMS Flame Retardant Catalog

Featured Products

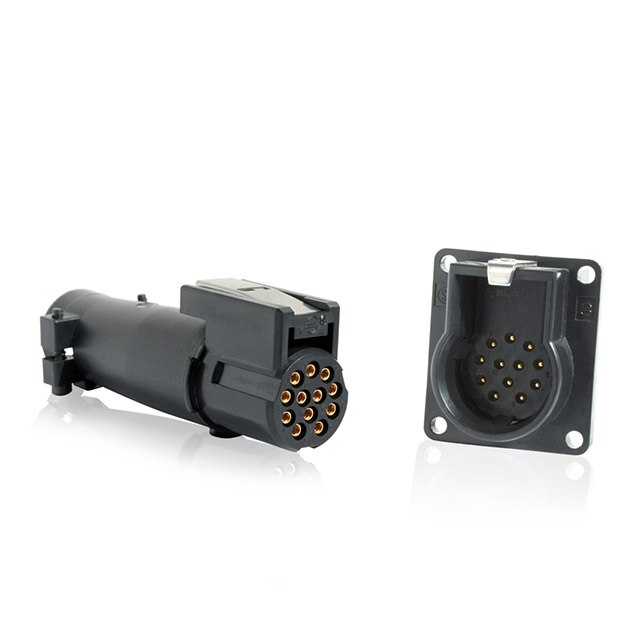

MBG Series

Souriau-Sunbank by Eaton's MBG series cylindrical plastic connector has been designed for use in applications requiring a high number of mating cycles and rapid connections and disconnections. The MBG series II meets minimum durability requirements of 5000 mating/unmating cycles by using a unique contact-wiping system consisting of a lubricant-saturated foam pad, bonded to a spring-loaded stripper plate within the receptacle or plug. Upon mating, the stripper plate is pushed deep into the connector, wiping a thin film of lubricant onto the male contacts. A distinctive shape provides mating ease in blind or difficult to reach applications. Typical applications would include test equipment, medical diagnostic equipment, or any of the hardware interconnections found in the modern electronic office.

Features & Benefits

• 5,000 mating / unmating cycles
• IP40
• Lubricated male contacts with spring actuated foam plate
• Quick and easy installation with latching mechanism
• Easy mating due to the positive polarization, even in blind spots
• Unmated male contacts are protected by the spring actuated plate
• Available with 4, 12, 19, 30, and 46 contact positions.
• Applicable for front or rear panel mounting as well as free hanging applications
• UL recognized - File Number E238675
• CSA certified - File Number LR54977

*Product series are conditionally inter-mateable with same shell size/layout pattern but IP, Electrical and Mechanical performances may be affected and in accordance with the lower performance denominator level.

MBG Resources

• MBG Series Catalog
