            SLLC Series High-Frequency Resonant Transformers

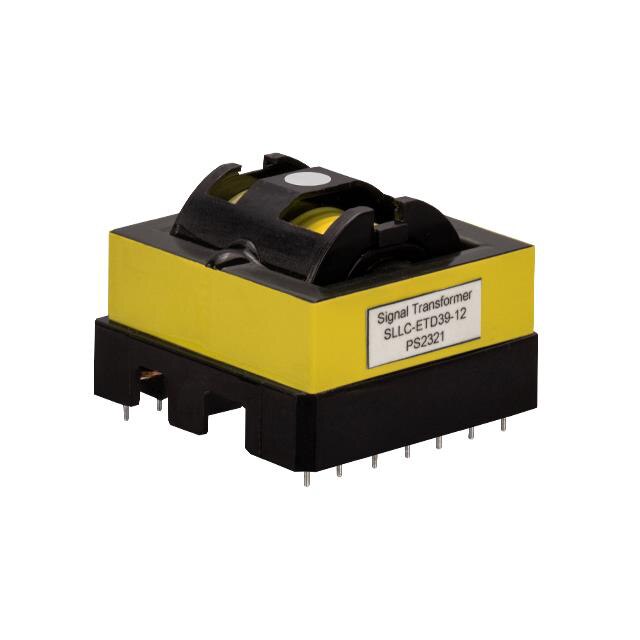

                    Signal Transformer SLLC series transformers come in a horizontal PCB THT mounting platform for high-efficiency, energy-sensitive applications


Signal Transformer SLLC series high-frequency resonant transformers in resonant converters have 360 V_DC to 400 V_DC input for high efficiency, energy-sensitive applications within delicate higher-end products. SLLC models are all horizontal printed circuit board through-hole mount components available in three ETD geometric platform sizes. With reinforced insulation, IEC compliance, and 4 kV isolation, these low-profile parts can deliver standard 12 V, 24 V, and 48 V output voltages in power capacities of 150 W, 200 W, and 250 W.

Features

Horizontal PCB THT mounting platforms: ETD34, ETD39, ETD44
High-efficiency designs
Low eddy current losses

Reinforced insulation
IEC 61558-2-16 compliance

Applications

LED lighting
PCs/notebooks
Power supplies
Resonant converters

Markets

Lighting
Consumer
Industrial
Telecom
Security
