EMC Solutions
Minimal Disturbance, Maximum Efficiency
SCHURTER is a leading manufacturer of passive and electromechanical components such as: fuses, circuit breakers, connectors, EMC products and input systems. Our EMC capabilities and expertise ensure that we provide products and services that prevent systems from interfering with one another through unwanted electrical or electromagnetic effects.
- Featured Products
- 1-Phase Filters
- 3-Phase Filters
- Power Entry Module with Filters
- Chokes

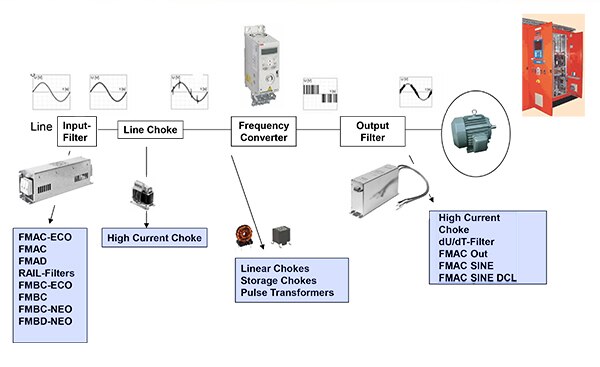

- Applications
Power Entry Modules with Filter
- 5707 – Inlet with fuseholder, IP65 water proof and dust protection
- KFA – Inlet with fuseholder, mates with V-lock cord sets, optional integrated ground line choke
- DC12 – Inlet with switch, high inrush current, Protection Class II option
- DA22 – Inlet (C14) with Filter, Fuseholder 1- or 2-pole for PCB Mounting

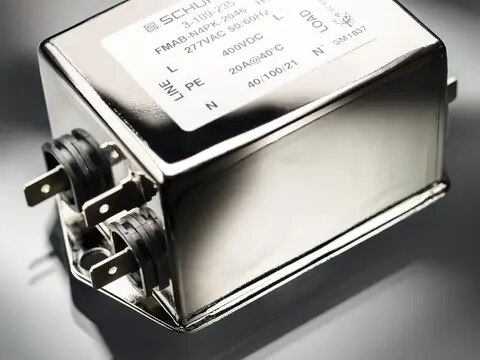

1-Phase Filters
- 1 – 36 A, 250 VAC
- Single, double or multistage Filters
- PCB- or chassis mounting
- DIN-rail mounting
- Standard, industrial or medical versions
Single Phase Filters
5500
AC Filter, PCB mounting, optional shield
FMAB-72
AC Filter, PCB mounting, flat aluminum housing
FMLB-09
AC Filter, cost optimized, 6-20 A, 125 VAC
FMLB-41
AC Filter, cost optimized, 1-10 A, 125 VAC
FMLB-51
AC Filter, cost optimized, 6-20 A, 125 VAC
FMW-41
AC Filter, optional surge protection
FMAB
AC Filter, broad band attenuation
FMAB NEO
AC Filter, high symmetrical attenuation
FMEB
DC Filter, single pole
Double Phase Filters
FMBB
AC filter, 2-stage, broad band attenuation
FSW
AC filter, 2-stage, high symmetrical and asymmetrical attenuation
FSS
AC filter, 2-stage, high symmetrical attenuation
3-Phase Filters
- 3 – 2500 A
- 480 / 520 / 760 VAC
- Single, double or multistage Filters
- 3-Phase and neutral versions
- DIN-rail or chassis mounting
- Standard or industrial versions
- Low leakage current versions
Single Phase Filters
FMAC
1-stage filter for 3-phase systems, wide current range
FMAC ECO
1-stage filter, ultra compact and efficient
FMW4-65
1-stage filter, compact filter with neutral conductor
FMAD
1-stage filter, high attenuation
FMER SOL
DC filter for photovoltaic converters
Double Phase Filters
FMBC ECO
2-stage filter, ultra compact and highly efficient
FMBC NEO
2-stage filter, light weight
FMBD NEO
2-stage filter, with neutral conductor, high performance
Output Filters
FMAC OUT
Output filter for 3-phase frequency inverter, high voltage

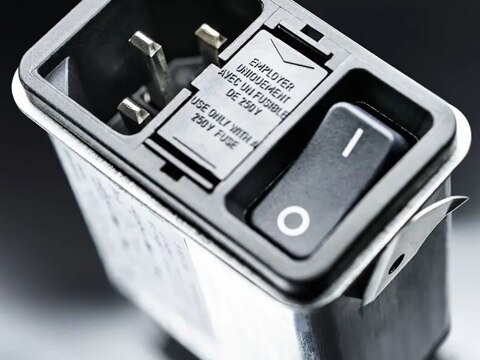

Power Entry Modules with Filter
SCHURTER’s power entry modules are based on IEC connectors with line filters (some models may include additional features) and meet international safety standards. Current ratings range from 2.5 to 20 A and are available in various mounting methods.
Appliance Inlet 125/250 VAC
5008
C8 plastic housing ECO design unpotted; Protection Class II
5110
C14, potted optional C X2 100 nF
5120
C14/C18, metal flange ECO design unpotted; Protection Class II, V-Lock Cord Retaining
5130
C20 ECO design unpotted, metal flange; V-Lock Cord Retaining
C20F
C20, Optional C X1; Optional C X2 330nF; V-Lock Cord Retaining
C22F
C22, High temperature, 65 °C UL/ 75 °C IEC
Appliance Inlet with Fuse Holder
5200
C14,Compact spare fuse comp.
5220
C14, Compact Optional C X2 100 nF
KFA
C14, Optional C X2 100 nF
DA22
C14,Optional C X1, Y1; Optional C X2 220 nF
5707
C14/C18, IP65 water-proof, metal flange; Protection Class II; V-Lock Cord Retaining
KFC
C14, Fuse 5x20/6.3x32; V-Lock Cord Retaining
CE
C14, Fuse 5x20/6.3x32; V-Lock Cord Retaining
Appliance Inlet with Switch
DC12
C14 High inrush Current; V-Lock Cord Retaining
DC22
C14, High inrush current, Optional C X1; V-Lock Cord Retaining
EC12
C20, Pre-wired, for high inrush current; V-Lock Cord Retaining
Appliance Inlet with Fuse Holder and Switch
DD12
C14, Ultra compact, for high inrush current
DD22
C14, PCB mounting, for high inrush current
KMF
C14/C18, Ultra compact; Protection Class II
CD
C14, Bowden-cable; Fuse 5x20/6.3x32
CG
C14, Bowden-cable; Fuse 5x20/6.3x32
FKH
C14, Compact , Side flange mounting
FKI
C14, Compact , Side flange mounting
FKHD
C14, Double stage filter; Side flange mounting
FKID
C14, Double stage filter; Side flange mounting
Felcom 54
C14, Modular system on PCB
Appliance Inlet with Circuit Breaker
DF12
C14, Recessed switch; Pre-wired; V-Lock Cord Retaining
5145
C14/C18, Pre-wired; Protection Class II
EF12
C20, Recessed switch; Pre-wired; V-Lock Cord Retaining
Chokes
SCHURTER has a wide range of current compensated, linear, storage, saturating, ground and high current chokes. Available features include:
- 0.4 to 50 A
- Open versions or plastic housings
- UL approval
- SPICE library for simulations and ease of design
Single Phase Filters
DFK
Compensated multiple, 1-& 3-phase choke, 0.5 - 15 A/440 VAC
DKIP-1
High current choke, 10-50 A / up to 540 VAC / 760 VDC
DKIP-3
High current, 3-phase choke, 10-50 A / up to 540 VAC / 760 VDC
DKIL-1
High current choke, 10-20 A / 540 VAC / 760 VDC
DKFP
Compensated multiple choke, 0.3 - 10 A/ up to 250 VAC
DKFS
Current compensated choke, 0.4-4 A/ up to 250 VAC
DFKF
High current choke, 0.6 - 6.3 A / up to 440 VAC
DFKH
High current choke, 0.6 - 6.3 A / up to 440 VAC
DKLP-1
High current choke, 4-20 A / up to 540 VAC / 760 VDC
DKLP-3
High current, 3-phase choke, 4-20 A / up to 540 VAC / 760 VDC
DLH
Linear choke, 0.45 - 7 A/ up to 600 VDC
DFSG
Saturating choke, 0.8 - 10 A/ up to 440 VAC
DLFP
Saturating choke, 5 - 45A/ 440 VAC
DLFL
Saturating choke, 5 - 45A/ 440 VAC
DEN
Groundwire choke, 16 - 25 A
DENO
Groundwire choke, 16 - 25 A
DS
Storage choke, 0.5 - 16 A/up to 600 VDC
DSF
Storage choke, 0.45 - 4.5 A/up to 600 VDC
DSH
Storage choke, 0.45 - 4.5 A / 0.6 - 1 A at 600 VDC
DSO
Storage choke, 0.5 - 16 A/ 0.45 - 7 A at 600 VDC

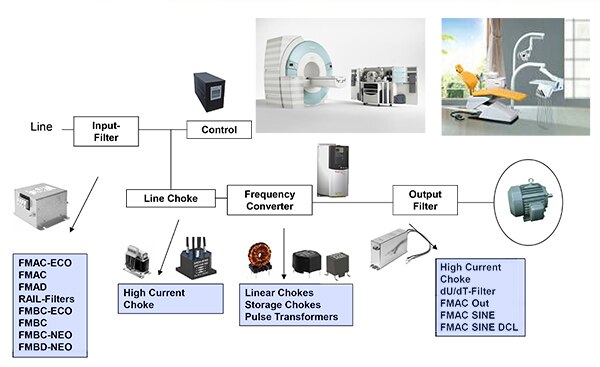

Medical Technology

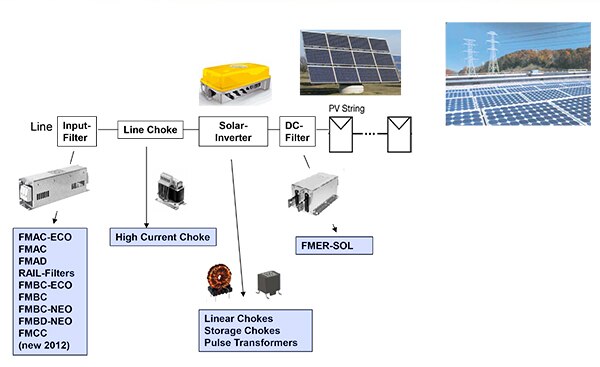

Renewable Energy
