URSA® I/O Ultra Rugged Cable System

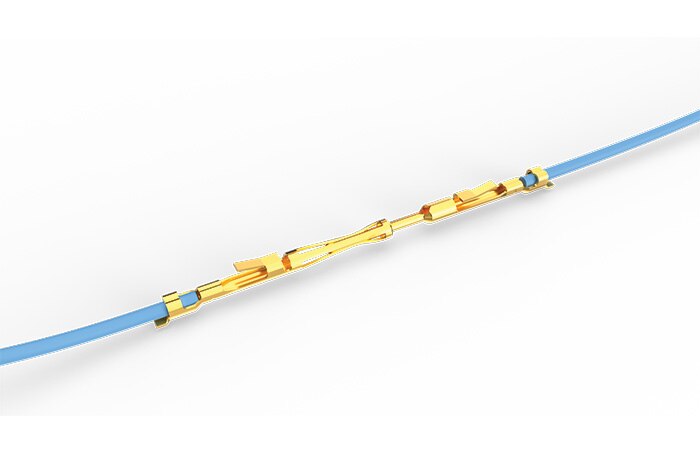

URSA® I/O features a hyperboloid-type contact for extreme reliability and high mating cycles in ultra rugged applications with EMI protection.

Samtec’s URSA® I/O cable-to-cable and cable-to-board solutions achieve four points of contact for a reliable connection in a small form factor, which allows for extreme density on the panel. Designed for ultra rugged applications, EMI shielding helps to limit signal degradation and optimize performance.

Features

High-Reliability

  • Four points of contact for a reliable connection
  • Hyperboloid-type contact for extreme high mating cycles

Extreme Density/Small Form Factor

  • Micro 1.00 mm pitch in double row space saving design

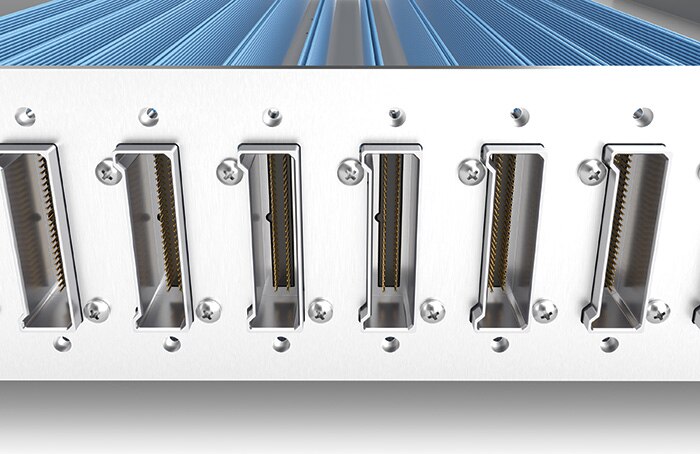

  • Extreme density with up to 1,450 total I/Os in a 1RU panel (29 cables at 50 total I/Os each)

Ultra Rugged

  • EMI shielding to limit signal degradation and optimize performance
  • Captive panel screws
  • Strain relief

Industries/Applications

  • 5G Networking
  • Industrial
  • Military/Aerospace
  • Test Connectivity
  • Medical
  • Broadcast Video
  • Automotive
  • AI/Machine Learning
  • Instrumentation

Featured Products

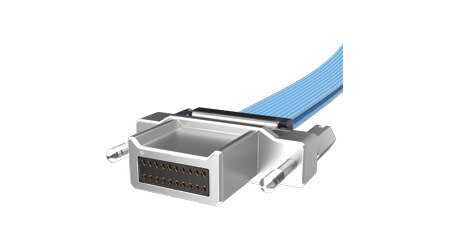

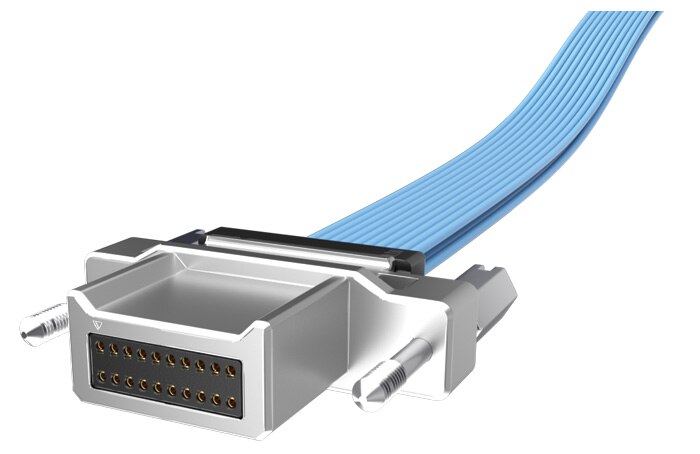

B1SDT URSA® I/O Ultra Rugged Socket Cable Assembly, Teflon™ Fluoropolymer Wire

Features

  • Four points of contact for an extremely reliable connection
  • Hyperboloid-type contact for extreme high mating cycles
  • Micro 1.00 mm (.0394") pitch
  • Double row design, up to 40 positions per row
  • 28 or 30 AWG Teflon™ fluoropolymer wire
  • Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Samtec
  • Catalog Page

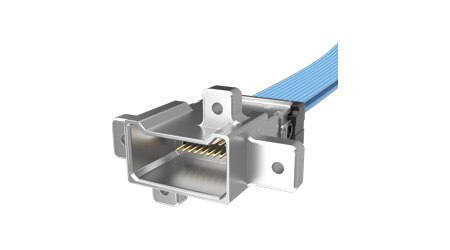

P1PDT URSA® I/O Ultra Rugged Panel Mount Terminal Cable Assembly, Teflon™ Fluoropolymer Wire

Features

  • Four points of contact for an extremely reliable connection
  • Hyperboloid-type contact for extreme high mating cycles
  • Micro 1.00 mm (.0394") pitch
  • Double row design, up to 40 positions per row
  • 28 or 30 AWG Teflon™ fluoropolymer wire
  • End 2 options
  • Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Samtec
  • Catalog Page

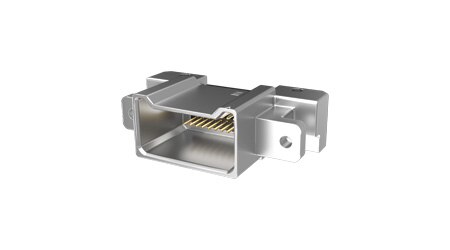

P1M URSA® I/O Ultra Rugged Board Mount I/O Connector

Features

  • Hot swap option available
  • Through-hole or surface mount
  • Double row design, up to 40 positions per row
  • Micro 1.00 mm (.0394") pitch
  • Catalog Page

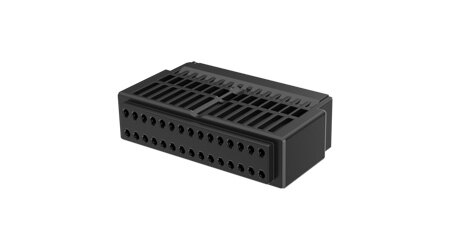

IBT1 URSA® I/O Ultra Rugged Cable Socket Housing

Features

  • For use with B1SDS metal shell and CC508 crimp contact
  • 10, 15, 35 & 30 pins on a 1.00 mm (.0394”) pitch
  • Catalog Page

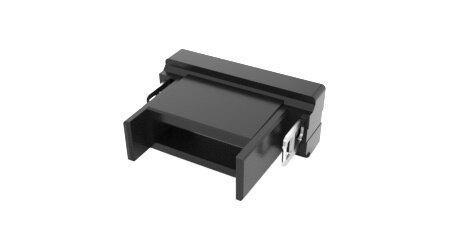

B1SDR URSA® I/O Cable Holder for Socket Housing

Features

  • 10, 15, 35 & 30 pins on a 1.00 mm (.0394”) pitch
  • Required for use with IBT1 socket housing
  • Catalog Page

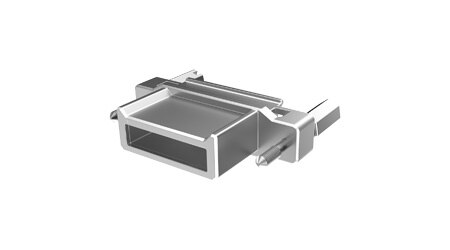

B1SDS URSA® I/O Metal Shell for Cable Socket Housing

Features

  • For use with IBT1 cable socket housing and CC508 crimp contact
  • Captive screws for cable-to-cable and cable-to-board applications
  • Catalog Page

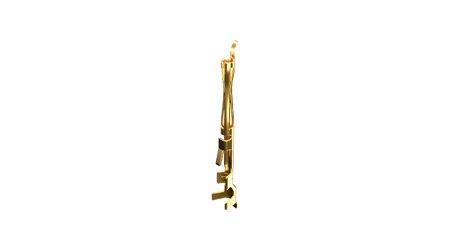

CC508 URSA® I/O Crimp Contact

Features

  • For use with IBT1 cable socket housing and B1SDS metal shell
  • Gold plated crimp contact with Gold Flash tail
  • Available in a Reel, Mini Reel or Bubble Bag
  • Catalog Page

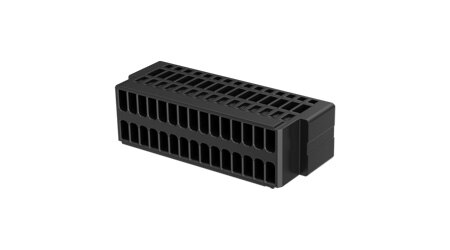

IPP1 URSA® I/O Ultra Rugged Cable Terminal Housing

Features

  • • For use with P1PDS metal shell and TC145 crimp terminal
  • 10, 15, 35 & 30 pins on a 1.00 mm (.0394”) pitch
  • Catalog Page

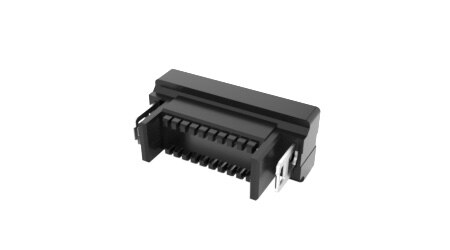

P1PDR URSA® I/O Cable Holder for Terminal Housing

Features

  • 10, 15, 35 & 30 pins on a 1.00 mm (.0394”) pitch
  • Required for use with IPP1 terminal housing
  • Catalog Page

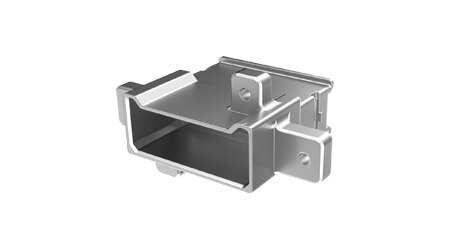

P1PDS URSA® I/O Metal Shell for Cable Terminal Housing

Features

  • For use with IPP1 cable terminal housing and TC145 crimp terminal
  • Captive screw holes for cable-to-cable and cable-to-board applications
  • Catalog Page

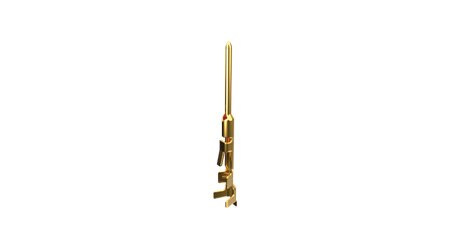

TC145 URSA® I/O Crimp Terminal

Features

  • For use with IPP1 cable terminal housing and P1PDS metal shell
  • Gold plated crimp terminal with Gold Flash tail
  • Available in a Reel, Mini Reel or Bubble Bag
  • Catalog Page

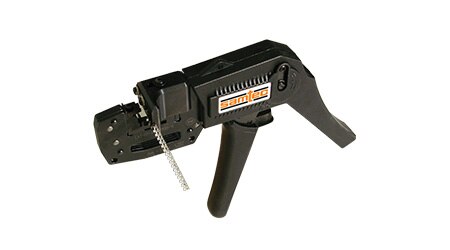

Tooling URSA® I/O Application Tooling

Features
