SMA 50 Ohm RF Connectors and Cables
Samtec's subminiature interconnects with screw-type coupling offer a variety of terminations

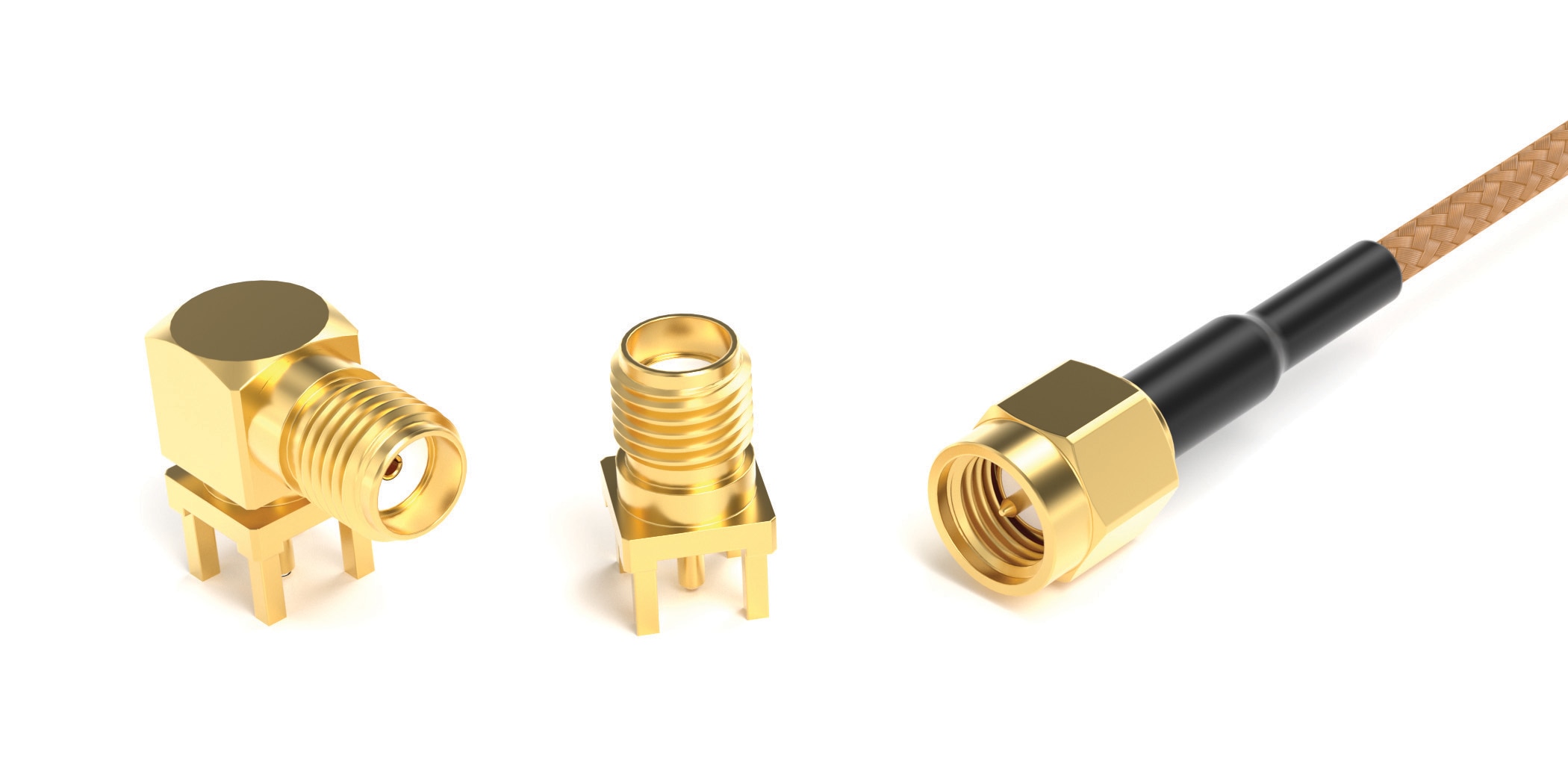

Samtec's SMA is a subminiature interconnect with screw-type coupling. SMA is intermateable with 2.92 mm and 3.50 mm connectors and is ideal for size, performance, and cost-critical applications. Operating frequency reaches 18 GHz, with extended frequency versions to 26.5 GHz also available.
Features
- SMA:
- Performance to 18 GHz
- 26.5 GHz options available
- 50 Ω impedance
- Through-hole, surface mount, edge mount, or mixed technology terminations
- Vertical or right-angle orientations
- Available on a variety of standard cable assemblies
- Precision cable connectors available for a variety of high-frequency industry-standard cables
- Cable connectors also available on RG 174 and RG 316
- Mechanically compatible with 2.92 mm and 3.50 mm interconnects
- Non-magnetic options available for medical and aerospace applications
- RF-174:
- VSWR: See RF174 graph
- Impedance: 50 Ω
- Bend radius: 25.4 mm min
- Capacitance: 101 pF/meter
- Operating temperature: -20°C to +80°C
- Frequency range: 6 GHz max (cable and connector dependent)
- Insertion loss: See RF174 graph
- 24 AWG, RG 174 cable
- Single or double ended
- Non-magnetic options available for medical and aerospace applications
- SMA-CA:
- SMA cable connectors
- Performance to 6 GHz (cable dependent)
- Straight or right-angle plug available on RG 174, RG 316, RG 402 (0.141"), RG 405 (0.086") or RG 58 cables
- Non-magnetic options available for medical and aerospace applications
- RF-316:
- VSWR: See RF316 graph
- Impedance: 50 Ω
- Bend radius: 12.8 mm min
- Capacitance: 96 pF/meter
- Operating temperature: -50°C to +165°C
- Frequency range: 6 GHz max (cable and connector dependent)
- Insertion loss: See RF316 graph
- 24 AWG, RG 316 cable
- Single or double ended
- Non-magnetic options available for medical and aerospace applications
Applications
- 5G networking
- Industrial
- Military/aerospace
- Test connectivity
- Medical
- Broadcast video
- Automotive
- AI/machine learning
- Instrumentation
SMA Connectors
| Image | Manufacturer Part Number | Description | Connector Type | Contact Termination | Shield Termination | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | SMA-J-P-H-ST-EM1 | CONN SMA JACK STR 50OHM EDGE MNT | Jack, Female Socket | Solder | Solder | 0 - Immediate 20090 - Factory Stock | $19.95 | View Details |
|  | SMA-J-P-H-ST-TH1 | CONN SMA JACK STR 50 OHM PCB | Jack, Female Socket | Solder | Solder | 9972 - Immediate 572 - Factory Stock | $21.92 | View Details |
|  | SMA-P-C-H-ST-CA1 | CONN SMA PLUG RG174/316 | Plug, Male Pin | Solder | Crimp | 1454 - Immediate 579 - Factory Stock | $56.82 | View Details |
|  | SMA-P-C-H-RA-CA1 | CONN SMA PLUG R/A 50 OHM SOLDER | Plug, Male Pin | Solder | Crimp | 1035 - Immediate | $95.74 | View Details |
|  | SMA-J-P-H-RA-TH1 | CONN SMA JACK R/A 50 OHM PCB | Jack, Female Socket | Solder | Solder | 3967 - Immediate 988 - Factory Stock | $27.92 | View Details |
|  | SMA-J-P-H-ST-MT1 | CONN SMA JACK STR 50 OHM SMD | Jack, Female Socket | Solder | Solder | 10246 - Immediate 6357 - Factory Stock | $37.93 | View Details |
|  | SMA-J-P-GF-RA-SM1 | CONN SMA JACK R/A 50 OHM SMD | Jack, Female Socket | Solder | Solder | 1632 - Immediate 900 - Factory Stock | $42.29 | View Details |
|  | SMA-J-C-H-ST-BH1 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 158 - Immediate | $65.11 | View Details |
|  | SMA-J-P-H-ST-EM3 | CONN SMA JACK STR 50 OHM EDGEMNT | Jack, Female Socket | Solder | Solder | 2951 - Immediate 4400 - Factory Stock | $66.67 | View Details |
|  | SMA-P-C-HF-RA-CA7 | SUB-MINI RF | Plug, Male Pin | Solder | Crimp | 98 - Immediate 400 - Factory Stock | $206.75 | View Details |
SMA-CA Connectors
| Image | Manufacturer Part Number | Description | Connector Type | Contact Termination | Shield Termination | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
| | SMA-J-C-H-ST-BH1 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 158 - Immediate | $65.11 | View Details |
|  | SMA-J-C-H-ST-BR1 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $49.51 | View Details |
| | SMA-J-C-H-ST-BH2 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $40.56 | View Details |
| | SMA-J-C-H-ST-SB1 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $43.68 | View Details |
| | SMA-J-C-H-ST-BH5 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $51.40 | View Details |
| SMA-J-C-GF-ST-S10 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $167.67 | View Details | |
| | SMA-J-C4-GF-ST-PN1 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $61.82 | View Details |
| | SMA-J-C4-H-ST-PN1 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $95.99 | View Details |
| | SMA-J-C-H-ST-BH4 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $51.40 | View Details |
| SMA-J-C-H-ST-BH3 | SUB-MINI RF | Jack, Female Socket | Solder | Crimp | 0 - Immediate | $51.40 | View Details |
RF-174 Cables
| Image | Manufacturer Part Number | Description | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
|  | RF174-01RP1-05BJ3-0305 | COAX CBL SMA TO TNC 12" | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | 85 - Immediate | $187.54 | View Details |
|  | RF174-01BJ1-01SP1-0152 | COAX CBL SMA TO SMA 5.9" | SMA Jack | Female | Panel Mount | 2 - Immediate | $146.07 | View Details |
|  | RF174-01BJ1-01RP1-0305 | COAX CBL SMA TO SMA 12" | SMA Jack | Female | Panel Mount | 25 - Immediate | $197.15 | View Details |
|  | RF174-01BJ1-01SB1-0305 | COAX CBL SMA TO SMA 12" | SMA Jack | Female | Panel Mount | 17 - Immediate | $179.41 | View Details |
|  | RF174-01BJ1-01SP1-0305 | COAX CBL SMA TO SMA 12" | SMA Jack | Female | Panel Mount | 17 - Immediate | $157.73 | View Details |
|  | RF174-01BJ1-01SB1-0152 | COAX CBL SMA TO SMA 5.9" | SMA Jack | Female | Panel Mount | 0 - Immediate | $142.71 | View Details |
|  | RF174-01RP1-05BJ3-0152 | COAX CBL SMA TO TNC 5.9" | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | 17 - Immediate | $225.23 | View Details |
| | RF174-01RP1-01SP1-0305 | COAX CBL SMA TO SMA 12" | SMA Plug | Male | Free Hanging (In-Line) | 21 - Immediate | $189.76 | View Details |
|  | RF174-01BJ1-07RP1-0305 | COAX CBL SMA TO SMB 12" | SMA Jack | Female | Panel Mount | 21 - Immediate | $159.62 | View Details |
|  | RF174-01SB1-01SP1-0305 | COAX CBL SMA TO SMA 12" | SMA Jack | Female | Panel Mount | 26 - Immediate | $146.16 | View Details |
RF-316 Cables
| Image | Manufacturer Part Number | Description | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
|  | RF316-01BJ1-01SP1-0305 | COAX CBL SMA TO SMA 12" | SMA Jack | Female | Panel Mount | 24 - Immediate | $157.73 | View Details |
|  | RF316-01PN1-01RP1-0152 | COAX CBL SMA TO SMA 5.9" | SMA Jack | Female | Panel Mount | 24 - Immediate | $186.39 | View Details |
|  | RF316-01SB1-01SP1-0305 | COAX CBL SMA TO SMA 12" | SMA Jack | Female | Panel Mount | 0 - Immediate | $146.16 | View Details |
|  | RF316-01SP1-04SP3-0305 | COAX CBL BNC TO SMA 12" | BNC Plug | Male | Free Hanging (In-Line) | 8 - Immediate | $149.69 | View Details |
|  | RF316-01BJ1-01SP1-0152 | COAX CBL SMA TO SMA 5.9" | SMA Jack | Female | Panel Mount | 24 - Immediate | $146.07 | View Details |
|  | RF316-01SB1-01SP1-0152 | COAX CBL SMA TO SMA 5.9" | SMA Jack | Female | Panel Mount | 15 - Immediate | $160.53 | View Details |
|  | RF316-01BJ1-01RP1-0152 | COAX CBL SMA TO SMA 5.9" | SMA Jack | Female | Panel Mount | 14 - Immediate | $185.73 | View Details |
|  | RF316-01RP1-01SB1-0152 | COAX CBL SMA TO SMA 5.9" | SMA Jack | Female | Panel Mount | 15 - Immediate | $199.94 | View Details |
|  | RF316-01SP1-04SP3-0152 | COAX CBL BNC TO SMA 5.9" | BNC Plug | Male | Free Hanging (In-Line) | 9 - Immediate | $164.63 | View Details |
|  | RF316-01BJ1-07RP1-0152 | COAX CBL SMA TO SMB 5.9" | SMA Jack | Female | Panel Mount | 16 - Immediate | $150.10 | View Details |
