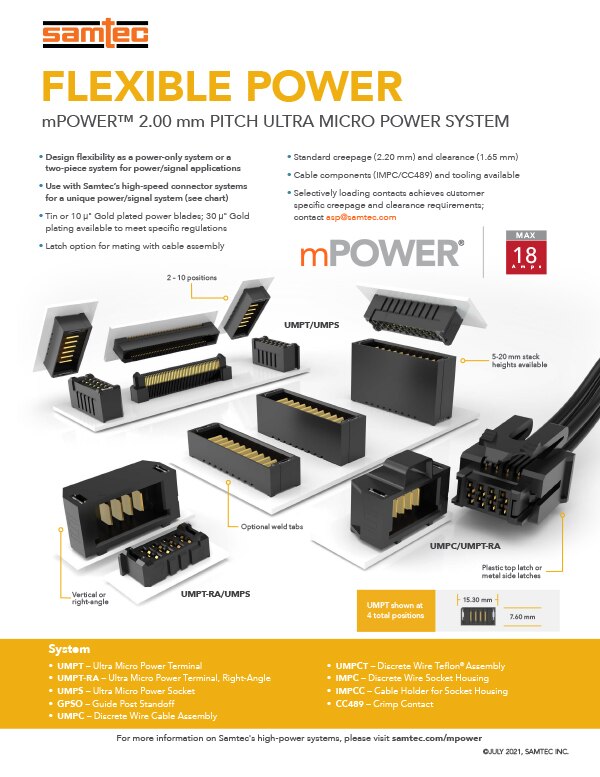

mPOWER® Ultra Micro Power Connectors

Micro 2.00 mm pitch, 18 Amp power blade interconnects designed for power only or staging a combination power and signal/ground solution.

mPOWER® connector system is the ultimate micro, high-power solution with incredible design flexibility for power-only or power/signal applications. Due to the wide variety of stack heights available, mPOWER® can be easily added to new or existing architectures alongside one of samtec’s high-speed connector systems for a unique two-piece power and signal/ground solution.

mPOWER® is a Severe Environment Test (SET) qualified product. SET is a samtec initiative to test products beyond typical industry standards and specifications. These products undergo additional testing to ensure they are more than suitable for rugged/ harsh environments such as military, space, automotive, industrial and other extreme applications.

Features

• Power only or power/signal with samtec’s high-speed connectors
• 2.00 mm pitch
• Choice of 2 to 10 positions
• Up to 18 A per power blade
• 5 – 16 mm, 18 mm and 20 mm stack heights
• Tin or 10 μ” Gold plated power blades and 30 μ” Gold plating available
• Optional weld tabs
• SET qualified product for use in extreme/harsh environments
• Mating cable available

Features

• Communication Equipment
• Industrial Machinery
• Instrumentation
• Surgical / Medical Equipment

Industries
