BD621x0AEFJ-EVK Evaluation Board

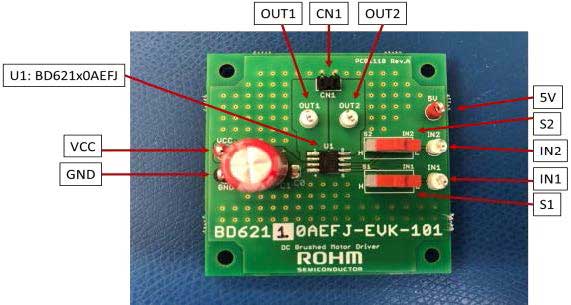

ROHM's BD621xAEFJ-EVK evaluation board was developed for use with its DC brushed motor drivers
ROHM's BD621x0AEFJ-EVK evaluation board was developed for use with the BD62130AEFJ (3A), BD62120AEFJ (2A), and BD62110AEFJ (1A) DC brushed motor drivers.
BD621x0AEFJ are built-in one-channel H bridge motor drivers for DC brushed motors. These drivers can drive high efficiency using a PWM signal directly to input pins. There are built-in protection circuits in this IC. Each protection circuit operation contributes to set high reliability.

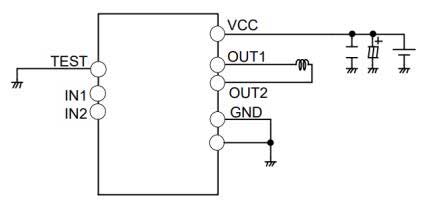

Circuit Diagram
Features
- Switches for manual control of IN1 and IN2 input pins
- Test points for connecting MCU for PWM control to IN1 and IN2
- Connector pins for easy connection to DC brushed motor
- Compact size for design prototyping
Applications
- Small appliances (e.g.,vacuum cleaners)
- Factory automation
- Robotics
- Point of sales (POS) machines
- Gaming machines
- Scanners
- Printers (e.g., multi-function, laser, inkjet, photo, FAX, mini)
- Plain paper copiers (PPC)
- Automotive LED interior lamps (e.g., air conditioner lamp, interior lamp, cluster lights, and others)
BD621x0AEFJ Evaluation Board
| Image | Manufacturer Part Number | Description | Function | Embedded | Utilized IC / Part | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | BD62110AEFJ-EVK-101 | EVAL BOARD FOR BD62110A | Motor Controller/Driver | No | BD62110A | 4 - Immediate | $523.12 | View Details |
|  | BD62120AEFJ-EVK-101 | EVAL BOARD FOR BD62120A | Motor Controller/Driver | No | BD62120A | 2 - Immediate | $513.19 | View Details |
|  | BD62130AEFJ-EVK-101 | EVAL BOARD FOR BD62130A | Motor Controller/Driver | No | BD62130A | 2 - Immediate | $523.12 | View Details |
|  | BD62110AEFJ-E2 | IC MOTOR DRIVER 8V-28V 8HTSOP-J | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | 29 - Immediate | $12.73 | View Details |
|  | BD62120AEFJ-E2 | BUILT-IN 1 CHANNEL H-BRIDGE MOTO | Brushed DC | Driver | Half Bridge (2) | 37064 - Immediate | $18.47 | View Details |
| | BD62130AEFJ-E2 | BUILT-IN 1 CHANNEL H BRIDGE MOTO | Brushed DC | Driver | Pre-Driver - Half Bridge (2) | 0 - Immediate | $13.71 | View Details |
