RT9490/92 Buck-Boost Switching Battery Chargers
Richtek RT9490/92 battery chargers are available in two package sizes for versatility in applications
Richtek buck-boost switching battery charger series, the RT9490/92 is a highly integrated 5 A buck-boost switch mode battery charge and system power path management device for two-to-four-cell Li-ion and Li-polymer batteries.
The low-impedance power path optimizes switch-mode operation efficiency, reduces battery charging time, and extends battery life during the discharging phase. It offers high SoC accuracy and features a fast role swap function to ensure seamless data and power transmission. The I²C serial interface with charging and system settings makes the device a truly flexible solution.
The RT9490 is available in a WL-CSP2.93x3.46-56(BSC) package and the RT9492 is available in a VQFN4x4-29T(FC) package.
Features
- Supports dual input selection
- Supports BC1.2, host mode, and FRS/seamless
- Supports 11-channel, 16-bit ADC
- Supports USB on-the-go (OTG)
- 93.8% OTG efficiency at 2 A with 8.4 V battery and 5 V output
- Output voltage with 10 mV resolution to support USB-PD
- BAT current limit regulation (BCLR)
- High-efficiency, 750 kHz/1 MHz/1.5 MHz programmable frequencies, synchronous switch-mode buck-boost charger
- 96.7% charge efficiency at 2 A with 9 V input and 8 V battery
- Input voltage range: 3.6 V to 24 V
- Average input current regulation (AICR)
- Minimum input voltage regulation (MIVR)
- Low battery quiescent current
- High accuracy for charger CV and ICHG
- Protections
- Overtemperature protection (OTP)
- Junction thermal regulation (JTR)
- Input protection (VAC OVP/VBUS OVP/OCP)
- Battery overvoltage protection (VBAT OVP)
- System voltage protection (VSYS OVP/UVP)
- System overload protection (VSYS OLP)
- Cycle-by-cycle overcurrent protection (OCP)
- OTG low battery protection (OTG LBP)
- OTG voltage protection (OTG OVP/UVP)
Applications
- Smart phones
- Tablets
- Chromebooks
- Drones
- Portable devices and accessories

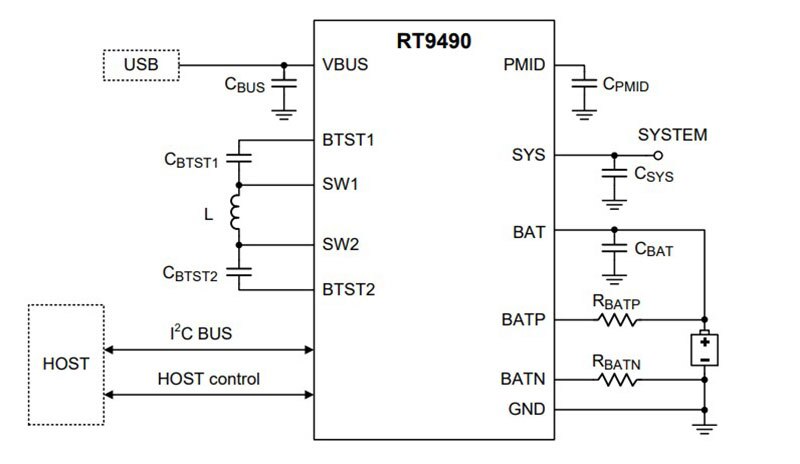

RT9490 Switching Battery Charger Diagram - Click to Enlarge
RT9490/92 Buck-Boost Switching Battery Chargers
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | RT9490WSC | IC BATTERY MANAGEMENT | 957 - Immediate | $56.14 | View Details |
|  | RT9492GQVF | IC FOR 5A CELL BUCK-BOOST SWITC | 1194 - Immediate | $46.84 | View Details |
Evaluation Boards
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 | EVB_RT9490WSC | EVAL BOARD FOR RT9490 | 5 - Immediate | $575.50 | View Details | |
|  | EVB_RT9492GQVF(2) | EVAL BOARD FOR RT9492 | 8 - Immediate | $575.50 | View Details |
