RP40Q-RUW/RP60Q-RUW DC/DC Converters

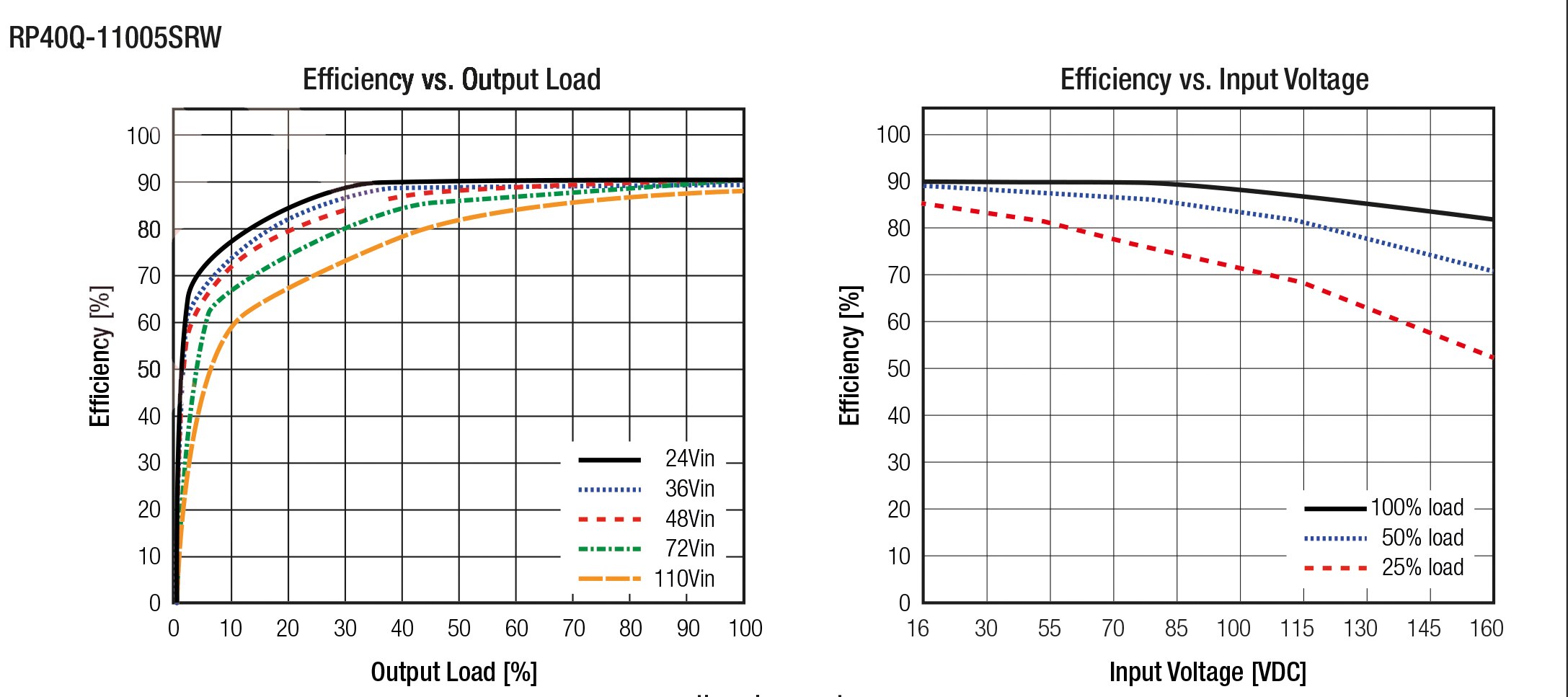

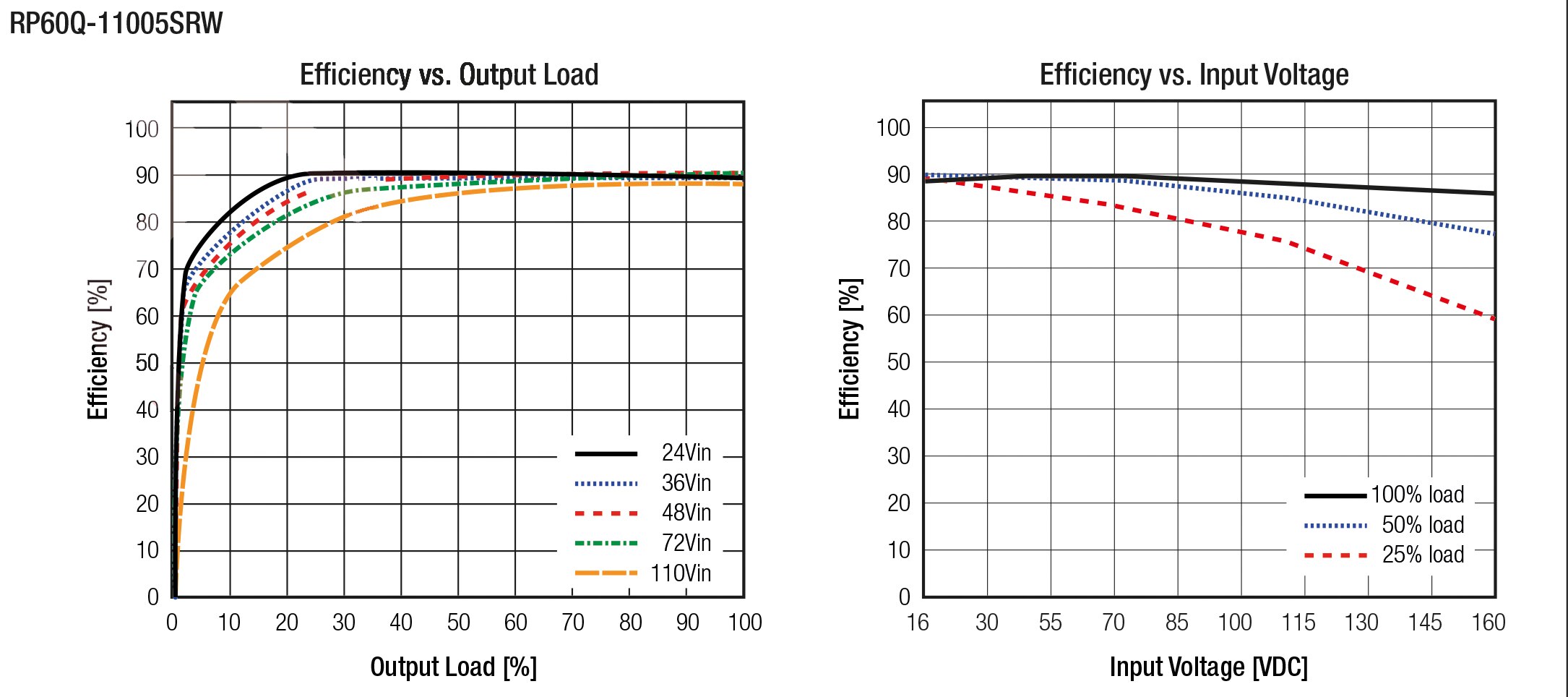

RECOM's RP40Q-RUW and RP60Q-RUW series converters provide an ultra-wide, highly efficient 12:1 input voltage range offering 16 V_DC up to 160 V_DC within a single product (including EN50155 transients). These DC/DC converters are designed for railway rolling stock and high voltage battery applications.

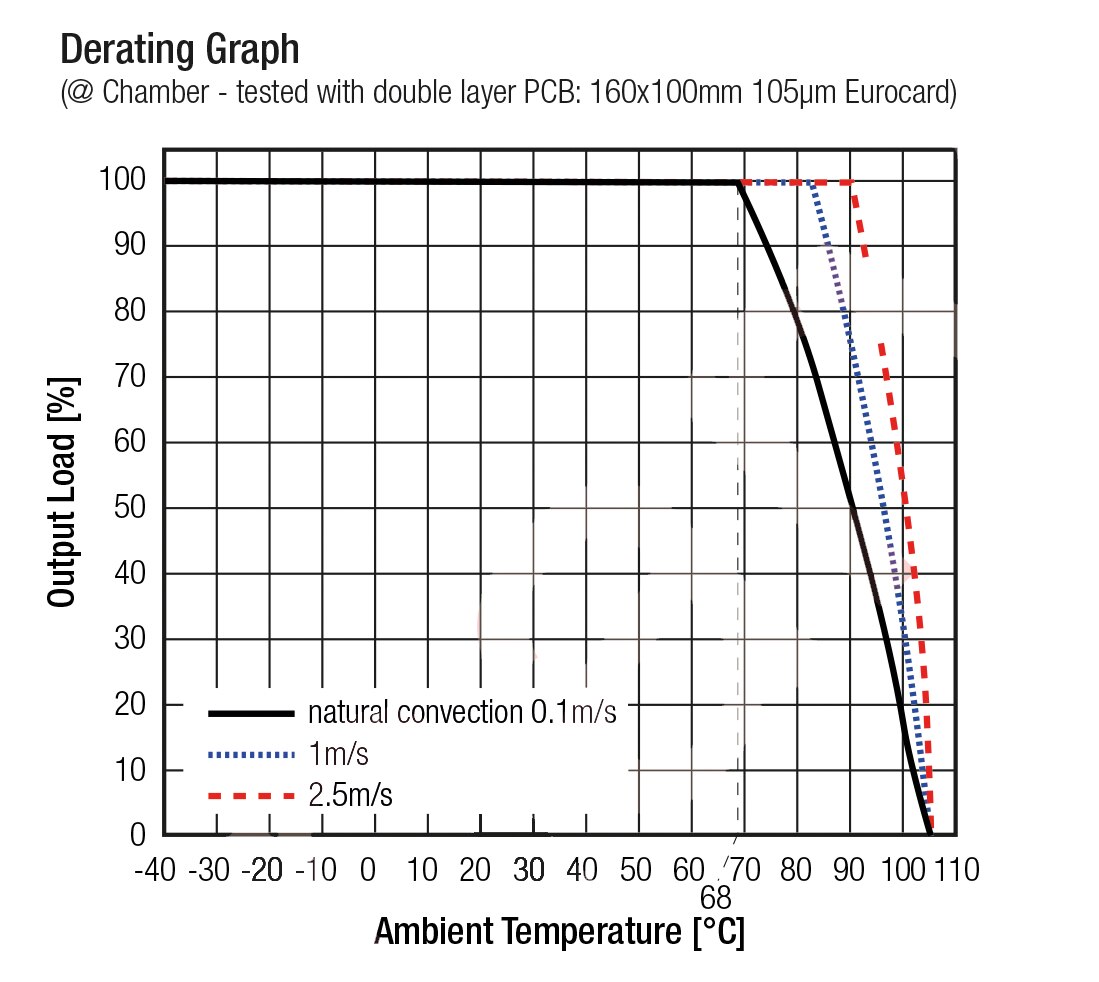

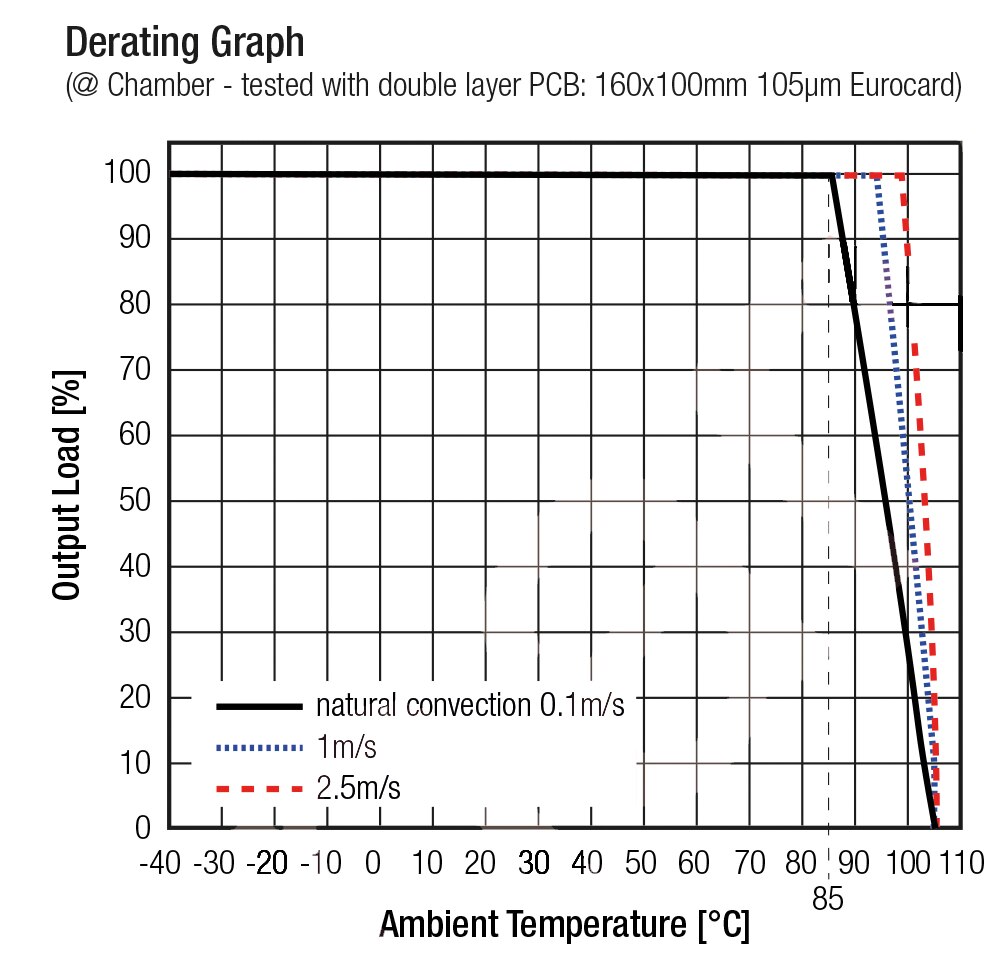

The RP60Q-RUW series has an operating temperature range from -40°C up to +68°C with an optional heat sink allowing up to +77°C, while the RP40Q-RUW has an even wider operating temperature range of -40°C up to +85°C with the optional heat sink increasing the range up to +90°C. Both series can provide these temperature ranges at full load without forced air cooling.

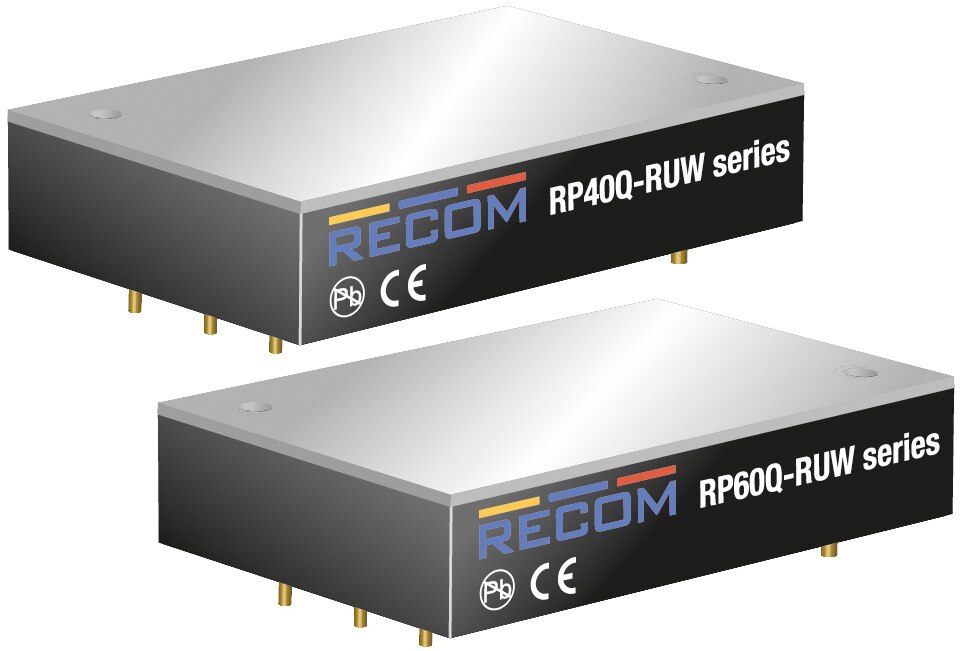

These converters come standard in a quarter-brick case that is fitted with threaded inserts for secure mounting in high shock and vibration environments. They provide reinforced isolation at 3 kV_DC, regulated 5 V_DC, 12 V_DC, 15 V_DC, 24 V_DC, and 48 V_DC outputs with sense and trim pins. They are CE marked, have EN50155 and EN45545-2 certifications, and come with a three-year warranty.
