RECOM Power

RAC15-K Series AC/DC Converter

RECOM’s 15 W AC/DC power supply module designed for low power IoT and IIoT

Image of RECOM's RAC15-K Series AC/DC ConvertersRECOM’s RAC15-K series is a cost-effective, highly efficient 15 W AC/DC converter with a compact footprint of 1” x 2”. With a no-load power consumption of 40 mW and a flat efficiency curve, these modules are ideal for IoT, IIoT, and smart home/building applications.

The series provides a universal mains input range of 85 VAC up to 264 VAC and offers modules with 5 VDC, 12 VDC, 15 VDC, and 24 VDC outputs. It offers a broad operating temperature range of -40°C to +85°C, is EMC compliant without external components, and includes fully protected outputs, as well as Class II installations. They are internationally certified for industrial, AV, ITE, and household.

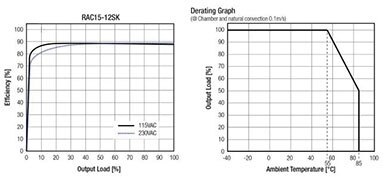

Image of RECOM's RAC15-12SK Effciency and Derating Graph

Features
  • High efficiency over entire load range
  • Standby mode optimized PSU (ENER Lot 6)
  • Operating temperature range: -40°C to +80°C (with derating)
  • Universal input range: 85 VAC to 264 VAC
  • Compactly-sized at 1” x 2”
  • Overvoltage and overcurrent protected
  • No load power consumption typ. 40 mW
  • EMC compliant without external components
Applications
  • IoT
  • IIoT
  • Industrial electrical equipment
  • Smart houses/buildings
  • Test and measurement

RAC15-K Series AC/DC Converter

ImageManufacturer Part NumberDescriptionVoltage - InputVoltage - Output 1Voltage - Output 2Available QuantityPriceView Details
AC/DC CONVERTER 5V 15WRAC15-05SKAC/DC CONVERTER 5V 15W85 ~ 264 VAC, 120 ~ 370 VDC5V-0 - Immediate
15 - Factory Stock		$107.84View Details
AC/DC CONVERTER 15V 15WRAC15-15SKAC/DC CONVERTER 15V 15W85 ~ 264 VAC, 120 ~ 370 VDC15V-28 - Immediate
15 - Factory Stock		$113.35View Details
AC/DC CONVERTER 12V 15WRAC15-12SKAC/DC CONVERTER 12V 15W85 ~ 264 VAC, 120 ~ 370 VDC12V-4475 - Immediate
990 - Factory Stock		$113.35View Details
AC/DC CONVERTER 24V 15WRAC15-24SKAC/DC CONVERTER 24V 15W85 ~ 264 VAC, 120 ~ 370 VDC24V-10 - Immediate$113.35View Details
Published: 2018-10-31
