Qorvo

QPL1840 CATV Amplifiers

Qorvo QPL1840 are 5 MHz to 1800 MHz, 75 Ω, single-ended, 17 dB gain CATV amplifiers

Image of Qorvo QPL1840 CATV Amplifiers Qorvo QPL1840 are GaAs pHEMT single-ended MMIC RF amplifier ICs featuring 17 dB of gain and low noise from 5 MHz to 1800 MHz. These high-linearity ICs are designed to support broadband CATV DOCSIS® 4.0 applications, including nodes, amplifiers, and remote PHY devices, as well as Fiber to the Home (FTTH) systems, home gateways, and cable modems. The devices are powered by a single supply that can operate at 5 V to 8 V with current set from 125 mA to 135 mA. At 5 V and 125 mA, the QPL1840 provides an output of 54 dBmV TCP with a CCN of 51 dB. The QPL1840 is packaged in a 3.0 mm x 3.0 mm 16-pin QFN.

Features
  • 5 MHz to 1800 MHz operation
  • 5 V and 8 V operation
  • Gain: 17.5 dB typical
  • TCP: 54 dBmV at 5 V
  • Noise figure: 1.5 dB at 1800 MHz
  • Adjustable bias using external resistors
  • RoHS compliant
Applications
  • DOCSIS 4.0 amplifiers
  • DOCSIS 4.0 optical nodes
  • DOCSIS 4.0 remote PHY devices
  • FTTH GPON and GEPON
  • DOCSIS 4.0 cable modem and home gateways

QPL1840 CATV Amplifiers

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
5 1800 MHZ, 75 , SINGLE ENDED,QPL1840TR75 1800 MHZ, 75 , SINGLE ENDED,0 - Immediate$35.36View Details
6 1800 MHZ, 75 , SINGLE ENDED,QPL1840SR6 1800 MHZ, 75 , SINGLE ENDED,0 - Immediate$117.64View Details

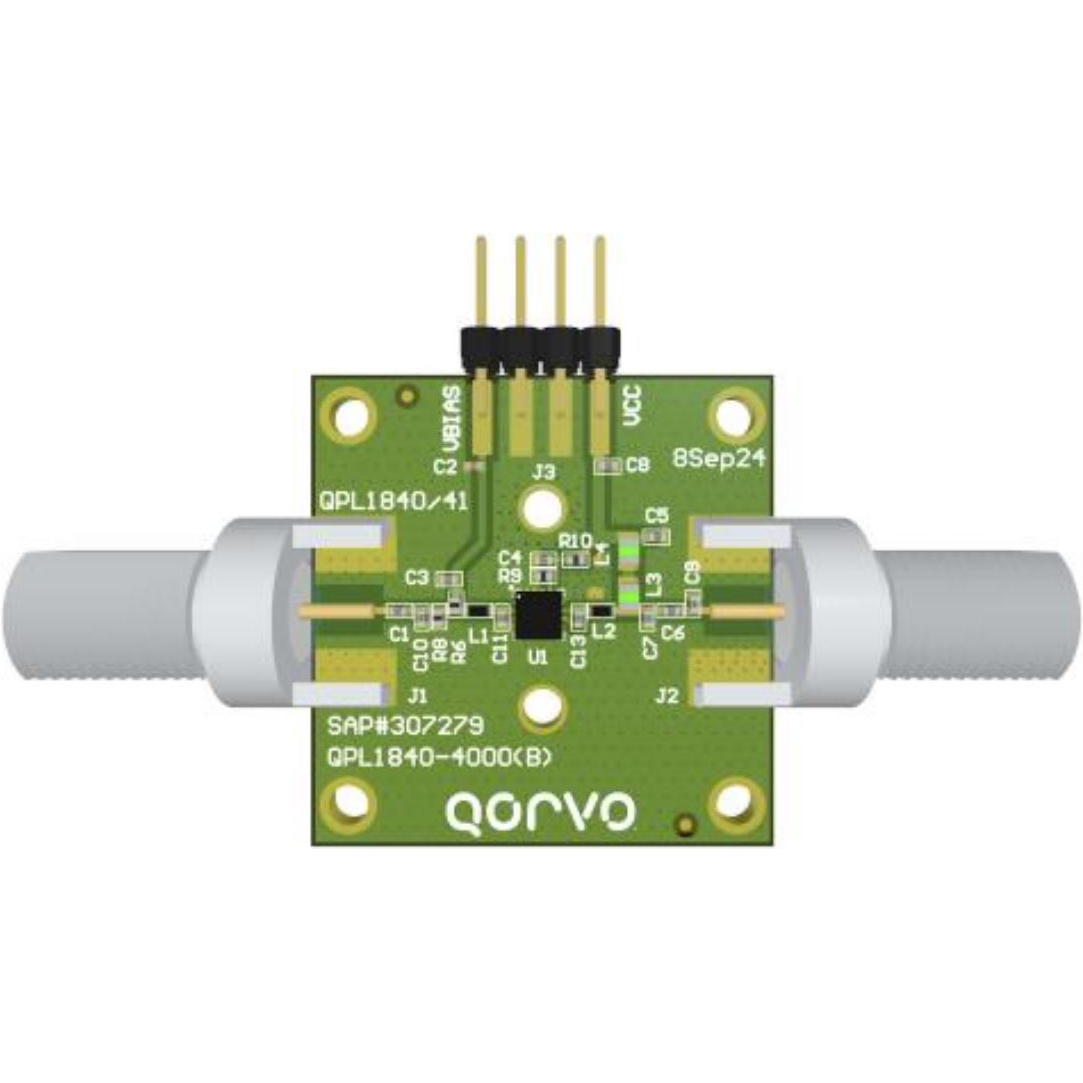

8V UPSTREAM EVALUATION BOARDQPL1840EVB-048V UPSTREAM EVALUATION BOARD5 - Immediate$1,279.66View Details
5V UPSTREAM EVALUATION BOARDQPL1840EVB-025V UPSTREAM EVALUATION BOARD5 - Immediate$1,279.66View Details
Published: 2025-08-11
