Phoenix Contact

PTRV Marshaling Terminal Blocks

Phoenix Contact offers its PTRV, push-in spring connectors for high-density signal marshaling

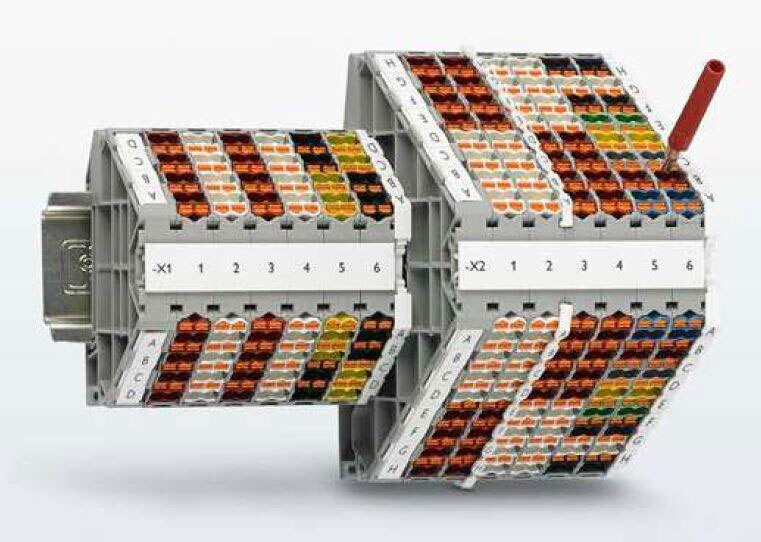

Image of Phoenix Contact's PTRV Marshaling Terminal BlocksPhoenix Contact offers its PTRV terminal block, allowing up to 32 connections in an 8.3 mm profile. The compact, PTRV marshaling terminals are used to marshal signals in automation applications in a clearly arranged manner. The wiring of a large number of conductors is simplified through levels, which can be designed individually based on color. Together with the front wiring, this helps to prevent errors in connection.

Features
  • Maximum signal density and up to 20% less space required thanks to the compact design
  • Freely configurable color assignment terminal points, enabling intuitive and safe installation
  • Large-surface, pitch-free marking for matrix identification
  • Convenient testing by means of freely accessible 2.5 mm test connections
  • Potential distribution versions, with up to 32 connections on the same block

PTRV Marshaling Terminal Blocks

ImageManufacturer Part NumberDescriptionNumber of LevelsTerminal - WidthAvailable QuantityPriceView Details
TERM BLK 32POS GRAY3270159TERM BLK 32POS GRAY88.3mm27 - Immediate
320 - Factory Stock		$288.70View Details
TERM BLK 29POS GRAY3270160TERM BLK 29POS GRAY88.3mm108 - Immediate
700 - Factory Stock		$288.70View Details
TERM BLK 16POS GRAY3270157TERM BLK 16POS GRAY48.3mm267 - Immediate
490 - Factory Stock		$148.95View Details
TERM BLK 16POS GRAY3270158TERM BLK 16POS GRAY48.3mm196 - Immediate
580 - Factory Stock		$148.95View Details
TERM BLK 32POS GRAY3270133TERM BLK 32POS GRAY88.3mm54 - Immediate$200.49View Details

Accessories

ImageManufacturer Part NumberDescriptionNumber of PositionsAvailable QuantityPriceView Details
CONN TERM BLK END PLATE WHITE3270154CONN TERM BLK END PLATE WHITE-86 - Immediate
1090 - Factory Stock		$16.67View Details
CONN TERM BLK END PLATE WHITE3270151CONN TERM BLK END PLATE WHITE-218 - Immediate
2840 - Factory Stock		$12.81View Details
CONN TERM BLK SPACER GRAY3270163CONN TERM BLK SPACER GRAY-18 - Immediate$17.82View Details
CONN TERM BLK SPACER GRAY3270166CONN TERM BLK SPACER GRAY-17 - Immediate$26.03View Details
CONN TERM BLK END PLATE WHITE3270156CONN TERM BLK END PLATE WHITE-84 - Immediate$17.66View Details
CONN TERM BLK END PLATE WHITE3270155CONN TERM BLK END PLATE WHITE-95 - Immediate
770 - Factory Stock		$19.62View Details
CONN TERM BLK END PLATE WHITE3270153CONN TERM BLK END PLATE WHITE-3 - Immediate$15.11View Details
CONN TERM BLK END PLATE WHITE3270152CONN TERM BLK END PLATE WHITE-19 - Immediate
390 - Factory Stock		$15.11View Details
CONN TERM BLK RETAIN CLIP GRY 4P3270167CONN TERM BLK RETAIN CLIP GRY 4P40 - Immediate$16.42View Details
Published: 2016-10-04
