NXP Semiconductors

88W8997 2.4/5 GHz Dual-Band 2x2 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.3 Solution

NXP's Wi-Fi 5 + Bluetooth 5.3 solution helps to reduce power consumption by up to 40%

Image of NXP's 2.4/5 GHz Dual-Band 2x2 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.3 SolutionNXP's 88W8997 is a 28 nm, 802.11ac wave-2, 2x2 MU-MIMO combo solution with full support for Bluetooth 5.3. The design enhancements and the low-power 28 nm process technology reduce the power consumption by up to 40% over existing solutions. The 88W8997 features a high level of integration, including dual-band power amplifiers (PAs), low-noise amplifiers (LNAs), and switches. Helping to reduce board-level BOM (bill of materials) to the bare minimum and enabling easy chip-on-board and module design for board markets.

Wireless modules based on the NXP 88W8997 are offered by the leading module manufacturers listed below.

Features
  • 2x2, MU-MIMO combo, with low-power 28 nm design
  • Bluetooth 5.3 includes support for features like 2 Mbps LE and direction-finding using angle of arrival (AOA) and angle of departure (AOD)
  • Dual-band PAs, LNAs, and switches
  • Concurrent applications support a device having two independent radio links without compromising the 2x2 MIMO link
  • Precision indoor location capability, including IEEE 802.11mc as well as Bluetooth low energy direction finding

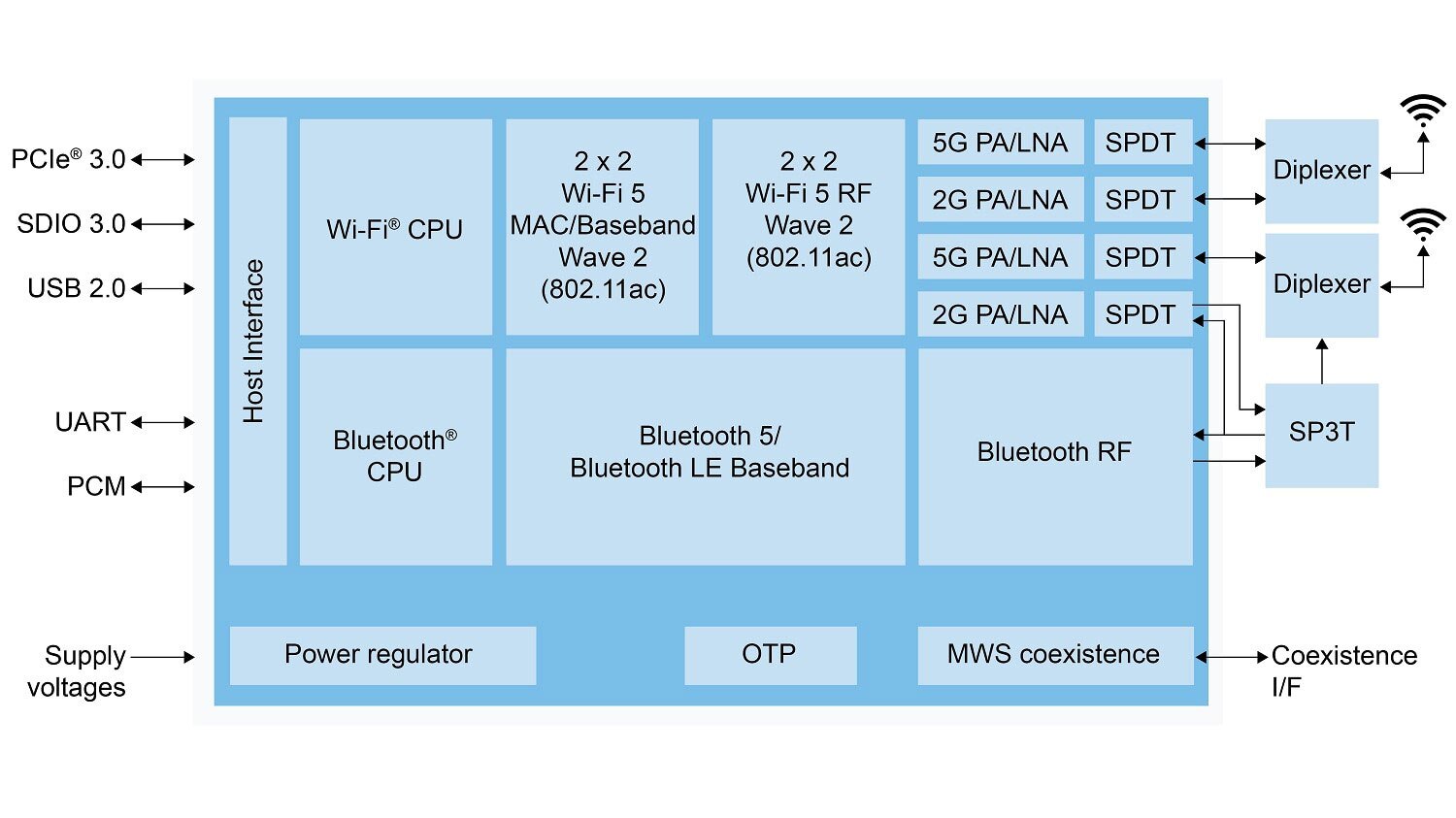

Diagram
Image of NXP's 2.4/5 GHz Dual-Band 2x2 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.3 Solution
Click to enlarge
Applications
  • Mobile computing
  • Smart homes
  • Gaming
  • Set-top boxes
  • TVs

2.4/5 GHz Dual-Band 2x2 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.3 Solution

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
IC RF TXRX BLE 161WLCSP88W8997-A1-CBQE/AZIC RF TXRX BLE 161WLCSP1273 - Immediate$137.80View Details

Modules

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
1YM M.2 MODULEEAR003701YM M.2 MODULE4 - Immediate$442.63View Details
RF TXRX MODULE BT U.FL CARD EDGEST60-2230C-PRF TXRX MODULE BT U.FL CARD EDGE1789 - Immediate$325.33View Details
RF TXRX MODULE BT U.FL CARD EDGEST60-2230CRF TXRX MODULE BT U.FL CARD EDGE0 - Immediate$325.33View Details
RF TXRX MODULE BT U.FL CARD EDGEST60-2230C-PURF TXRX MODULE BT U.FL CARD EDGE0 - Immediate$325.33View Details
RF TXRX MOD BT IU.FL CARDST60-2230C-URF TXRX MOD BT IU.FL CARD8 - Immediate$325.33View Details
RF TXRX MOD BT IU.FL CARDST60-2230C-UURF TXRX MOD BT IU.FL CARD83 - Immediate$325.33View Details
RF TXRX MOD BT WIFIU.FL SMDST60-SIPTRF TXRX MOD BT WIFIU.FL SMD2618 - Immediate$433.50View Details
RF TXRX MOD BT WIFIU.FL SMDLBEE5XV1YM-574RF TXRX MOD BT WIFIU.FL SMD6057 - Immediate$186.13View Details
RF TXRX MOD BT WIFIU.FL SMD453-00071CRF TXRX MOD BT WIFIU.FL SMD10 - Immediate$1,412.61View Details
RF TXRX MOD BT WIFIU.FL SMD453-00072CRF TXRX MOD BT WIFIU.FL SMD0 - Immediate$1,629.94View Details
RF TXRX MOD BT CELL CHIP SMD453-00135CRF TXRX MOD BT CELL CHIP SMD0 - Immediate$1,802.81View Details
RF TXRX MOD BT WIFIU.FL SMD453-00070CRF TXRX MOD BT WIFIU.FL SMD9 - Immediate$1,333.58View Details
Published: 2024-03-12
