Advanced ESD Protection for Automotive and High-Speed Data Lines

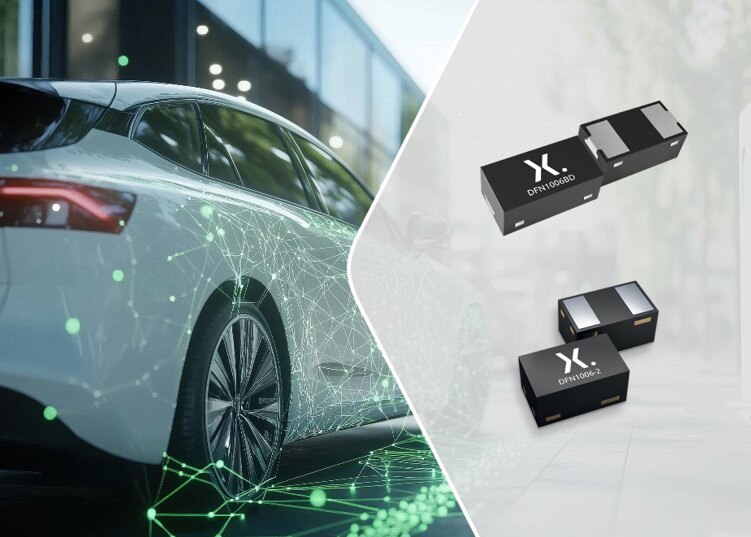

Nexperia PESD18VF1 and PESD30VF1 high-performance electrostatic discharge (ESD) protection diodes are designed to safeguard sensitive automotive and high-speed data lines. These devices are engineered to provide robust protection against ESD and other transient voltage events. They are housed in compact DFN1006-2 (SOD882) and DFN1006BD-2 (SOD882BD) packages, making them ideal for space-constrained designs. The automotive-qualified variants (denoted by the -Q suffix) meet AEC-Q101 standards, ensuring high reliability and robustness in harsh environments. With reverse stand-off voltages ranging from 18 V to 30 V and ultra-low capacitance values, these diodes protect high-speed interfaces such as USB, HDMI, and NFC antennas. The PESD18VF1 and PESD30VF1 series offer low clamping voltages, high ESD protection up to ±12 kV, and low leakage current, making them a reliable choice for modern electronic designs.
