CompactDAQ Chassis

NI's latest additions to the CompactDAQ platform includes chassis and modules options.

CompactDAQ is a rugged, modular hardware that connects sensors and electrical signals to a PC over Ethernet or USB. NI has updated their CompactDAQ chassis with better access to support resources and lower cost options that engineers use to stretch their budget.

  • CompactDAQ Chassis
  • Modules

Lower-cost, single-port ethernet chassis with synchronization

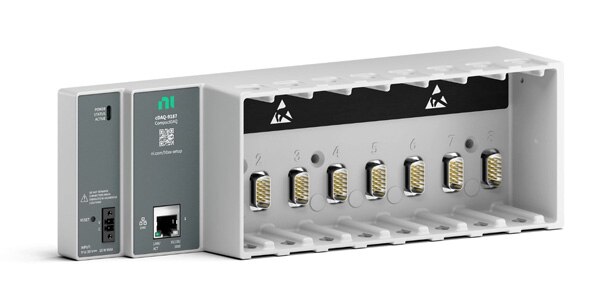

789997-01

8-slot, 1-port, TSN-enabled ethernet CompactDAQ chassis

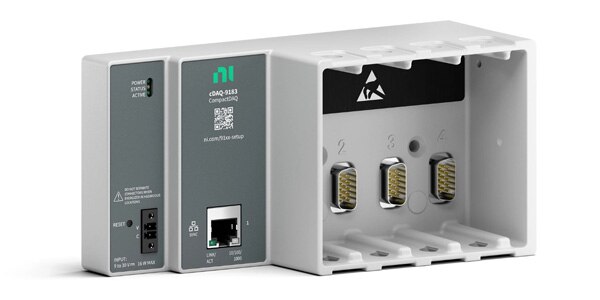

789996-01

4-slot, 1-port, TSN-enabled ethernet CompactDAQ chassis

USB-C chassis with improved shock, vibration, and temperature specs

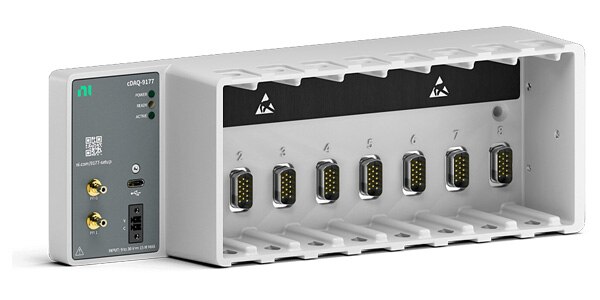

789117-01

8‑Slot, USB Type-C CompactDAQ Chassis

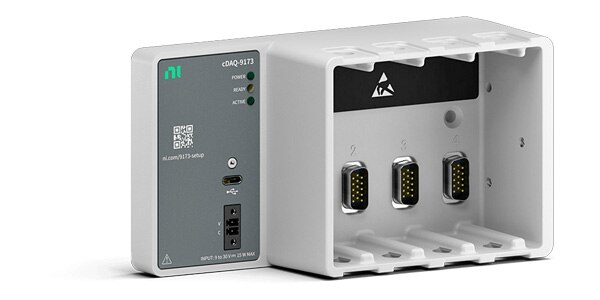

789115-01

4‑Slot, USB Type-C CompactDAQ Chassis

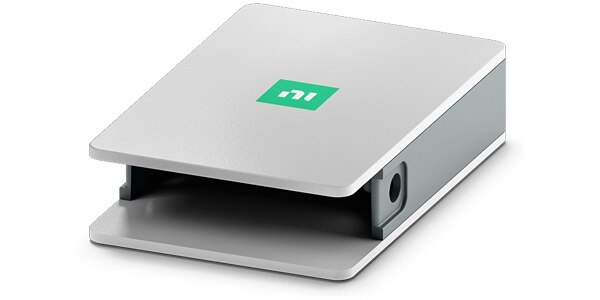

789116-01

1‑Slot, USB Type-C CompactDAQ Chassis

±10 V input modules

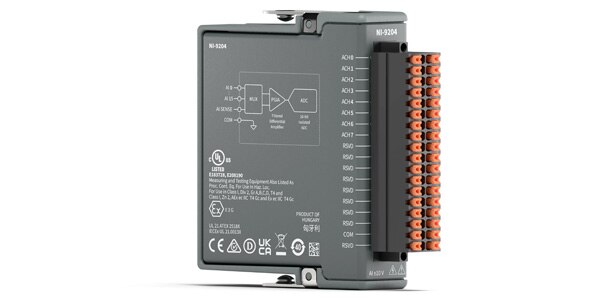

The new NI 9204 is a great general purpose +/-10V input module featuring:

  • 16 single-ended or 8 differential input channels
  • 250 kS/s, 16-bit ADC (250k max rate 1 channel, multiplexed for all channels)
  • Multiple gain settings: ±10 V, ±5 V, ±1 V, and ±0.2 V

789113-01

Multifunction I/O DAQ Device

789114-01

Multifunction I/O DAQ Device D-Sub

Snap-in connector modules

The new snap-in connector is available on 7 C series model numbers and lets you connect 14-20 (0.5 mm2 - 2.5mm2) gage signal wires with a manually operated lever. No tools required!

Now available for these measurement modules:

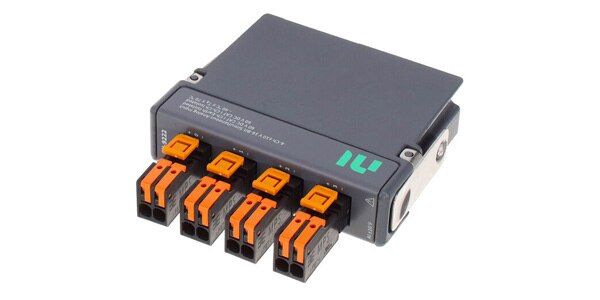

789124-01

±10V, 16-bit, 500 kS/s/ch

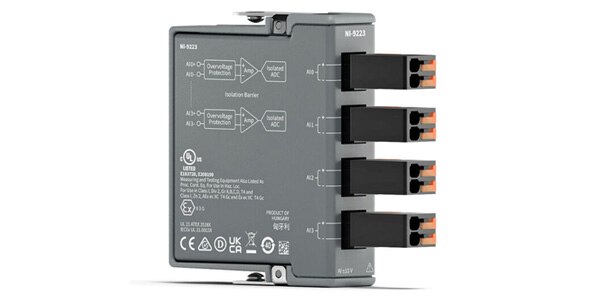

789125-01

±10V, 16-bit, 1 MS/s/ch

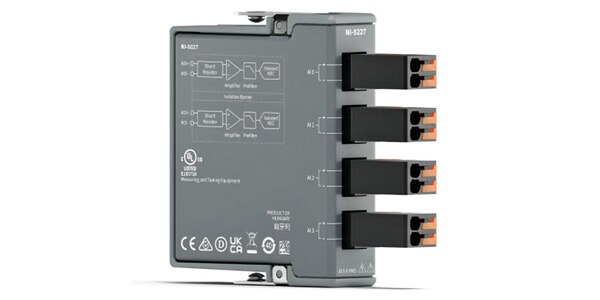

789127-01

5 AmpRMS 24-bit, 50 kS/s/ch

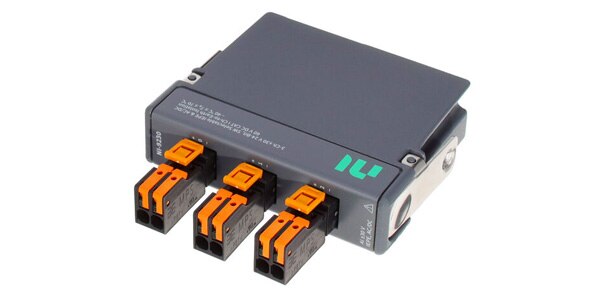

789128-01

± 30V w/ IEPE, 24-bit, 12.8 kS/s/ch

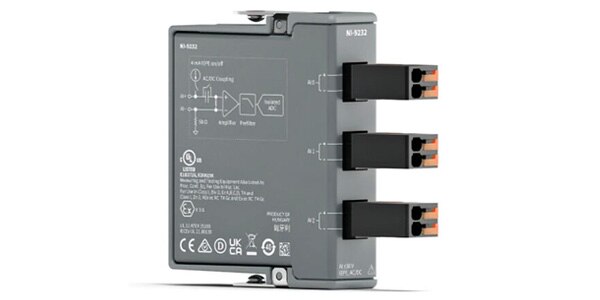

789129-01

± 30V w/ IEPE, 24-bit, 102.4 kS/s/ch

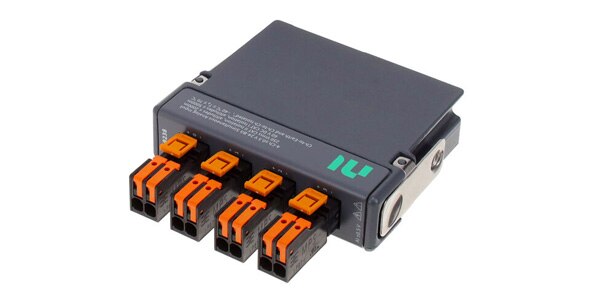

789130-01

±0.5 V, 24-bit, 50 kS/s/ch

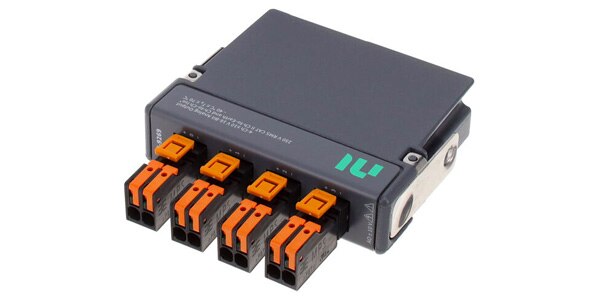

789131-01

± 10V Output, 16-bit, 100 kS/s/ch
