High-Speed Clocks and Buffers
Microchip Technology clocks and buffers support a wide range of clock frequencies in a small package measuring 1.4 mm x 1.6 mm
Microchip industry-standard clocks and buffers offer LP-HCSL signaling, low jitter, and flexible fanout configurations, key features required for PCIe Gen 1-7 applications. In addition, Microchip provides reliable, high-precision solutions that are qualified components to support Intel® CK440 and DB2000 reference platforms.
Features
- Compliant with Intel CK440, DB2000Q, and DB2000QL specifications
- PCIe Gen 1-7 compliant
- Small PCIe Gen7 buffer: 1.4 mm x 1.6 mm
- Standard output configurations
- LP-HCSL outputs
- Ultra-low additive jitter
- Supports a wide range of clock frequencies
- Supports 1.8 V, 2.5 V, and 3.3 V power supplies
- Extended temperatures: -40°C to +105°C
Applications
- Servers
- Storage
- Switches and routers
LP-HCSL PCIE Clocks, CK440 Compliant
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|

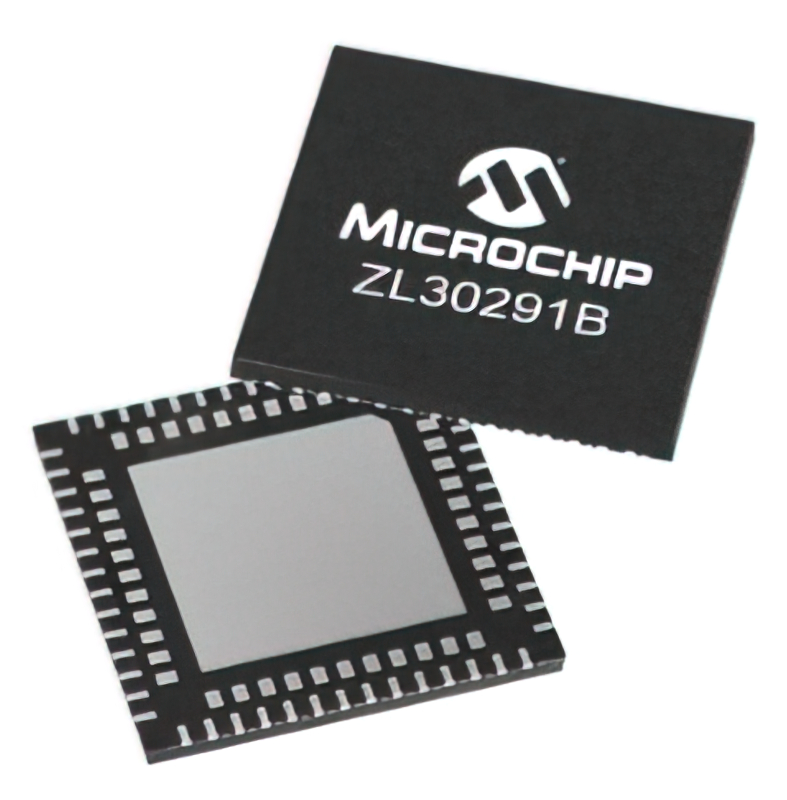

 |  | ZL30291BLDG1 | CK440 COMPL LPHCSL GEN1-6 PCIE | 500 - Immediate | $24.28 | View Details |
| | ZL30291BLDF1 | CK440 COMPL LPHCSL GEN1-6 PCIE | 0 - Immediate | $19.55 | View Details |
| | ZL30291LDG1 | CK440 COMPL LPHCSL GEN1-6 PCIE | 500 - Immediate | $24.28 | View Details |
| ZL30292LDG1 | CK440 COMPL LPHCSL GEN1-6 PCIE | 0 - Immediate | $22.14 | View Details | |
| ZL30292LDF1 | CK440 COMPL LPHCSL GEN1-6 PCIE | 0 - Immediate | $17.80 | View Details | |
| | ZL30291LDF1 | CK440 COMPL LPHCSL GEN1-6 PCIE | 0 - Immediate | $19.55 | View Details |
LP-HCSL, PCIE Buffers
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | SY75602ATWL-TR | IC CLK BUFFER 1:2 250MHZ 8VDFN | 3550 - Immediate | $10.21 | View Details |
|  | SY75603ATWL-TR | IC CLK BUFFER 1:2 250MHZ 16VQFN | 3176 - Immediate | $13.83 | View Details |
| | SY75604ATWL-TR | IC CLK BUFFER 1:4 250MHZ 16VQFN | 7795 - Immediate | $16.63 | View Details |
| | SY75604BTWL-TR | IC CLK BUFFER 1:4 250MHZ 16VQFN | 3102 - Immediate | $16.63 | View Details |
| | SY75604ATWL | IC CLK BUFFER 1:4 250MHZ 16VQFN | 907 - Immediate | $16.63 | View Details |
LP-HCSL, PCIE Buffers (DB2000 Compliant)
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | ZL40294LDF6 | 20-OUTPUT DB2000QL BUFFER | 3990 - Immediate | $19.43 | View Details |
| | ZL40295LDF6 | 20-OUTPUT DB2000QL BUFFER | 3975 - Immediate | $19.43 | View Details |
|  | ZL40292LDF1 | 20-OUTPUT DB2000Q BUFFER | 2844 - Immediate | $19.43 | View Details |
| | ZL40294LDG6 | 20-OUTPUT DB2000QL BUFFER | 1470 - Immediate | $19.43 | View Details |
| | ZL40293LDG1 | 20-OUTPUT DB2000Q BUFFER | 343 - Immediate | $19.43 | View Details |
