            MAX2250xE ESD-Protected RS-485/RS-422 Transceivers
                    Analog Devices' MAX2250xE are 100 Mbps half- and full-duplex RS-485/RS-422 transceivers for long cables


Analog Devices' MAX2250xE family of ESD-protected RS-485/RS-422 transceivers are developed for high speed communication over long cables (up to 100 Mbps).

The transceivers feature an integrated hot-swap protection and a fail-safe receiver, ensuring a logic-high on the receiver output when input signals are shorted or open for longer than 10 μs (typical).

The MAX22500E features an integrated reemphasis circuitry that extends the distance and increases the data rate of reliable communication by reducing inter-symbol interference (ISI) caused by long cables. The MAX22500E features a flexible logic interface down to 1.6 V. It is available in a 10-pin TDFN-EP package

The MAX22501E operates without the preemphasis and is powered from a 3 V to 5.5 V supply. It is available in an 8-pin TDFN-EP package.

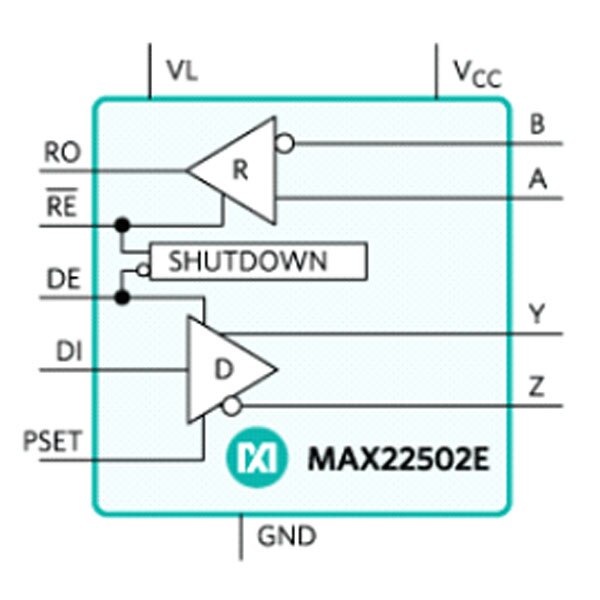

The MAX22502E features a large receiver hysteresis for high noise rejection and improved signal integrity. It also has the integrated preemphasis circuitry when supplied with 5 V. It is available in a 12-pin TDFN-EP package.

This family of transceivers can operate over the -40°C to +125°C ambient temperature range.

Features

High-speed operation over long distances
- Up to 100 Mbps data rate
- Integrated preemphasis extends cable length
- High receiver sensitivity
- Wide receiver bandwidth
- Symmetrical receiver thresholds

Flexibility for many different applications
- 3 V to 5.5 V supply range
- Low voltage logic supply down to 1.6 V
- Low 5 μA (max.) shutdown current
- Available in 12-pin TDFN (3 mm x 3 mm) package
- -40°C to +125°C operating temperature range

Integrated protection increases robustness
- -15 V to +15 V common mode range
- ±15 kV ESD protection (human body model)
- ±7 kV IEC61000-4-2 air-gap ESD protection
- ±6 kV IEC61000-4-2 contact discharge ESD protection
- Driver outputs are short-circuit protected

Applications

Industrial control systems
Motion control
Backplane busses
Encoder interfaces
Field bus networks

MAX2250xE ESD-Protected RS-485/RS-422 Transceivers

Manufacturer Part Number	Description	Available Quantity	Price	View Details
MAX22500EATB+	IC TRANSCEIVER HALF 1/1 10TDFN	5955 - Immediate 55800 - Factory Stock	$85.53	View Details
MAX22501EATA+	IC TRANSCEIVER HALF 1/1 8TDFN	0 - Immediate 241700 - Factory Stock	See Page for Pricing	View Details
MAX22502EATC+T	IC TRANSCEIVER FULL 1/1 12TDFN	6410 - Immediate	$95.08	View Details

Evaluation Kits

Manufacturer Part Number	Description	Available Quantity	Price	View Details
MAX22501EEVKIT#	EVAL BOARD FOR MAX22501E	1 - Immediate 6 - Factory Stock	$1,108.77	View Details
MAX22502EEVKIT#	EVAL BOARD FOR MAX22502E	11 - Immediate 10 - Factory Stock	$1,215.04	View Details
MAX22500EEVKIT#	EVAL BOARD FOR MAX22500E	2 - Immediate 16 - Factory Stock	$1,107.45	View Details
