Comprehensive Packaged LED, Chip-On Board And LED-On-Board Offerings

General Illumination LEDs

Since the introduction of the first LUXEON-branded LED in 1999, the Lumileds portfolio has grown continuously in size and scope. Covering the whole spectrum of LED luminous flux and optimized to cater to a variety of applications, LUXEON LEDs bring efficiency, digital control and long life to spotlights, downlights, high bay and low bay lighting, indoor area lighting, architectural and specialty lighting as well as retrofit lamps.

Click on any icon below to see the recommended LUXEON LEDs for that particular application.

ARCHITECTURAL

Energize your venue with vivid colors

Architectural Lighting Design Approach
Value	Standard	Performance
Cost effective Standard 3535 Package Low lumen designs	High Flux & Efficacy Full Color Palette Perfect Color Mixing with LUXEON C Colors	High Color Density Broad Gamut Precise Optical Control
Recommended LED

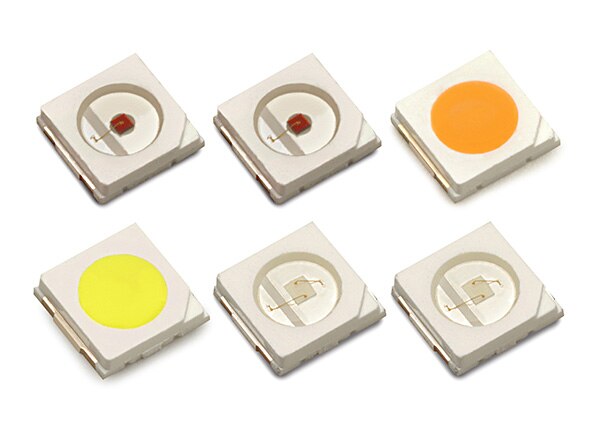

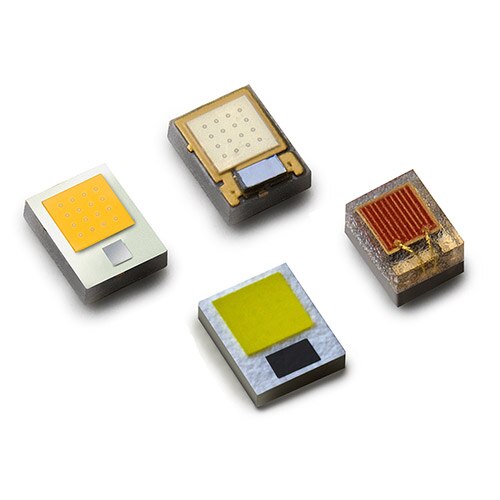

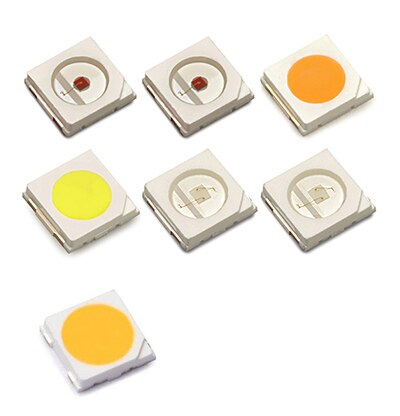

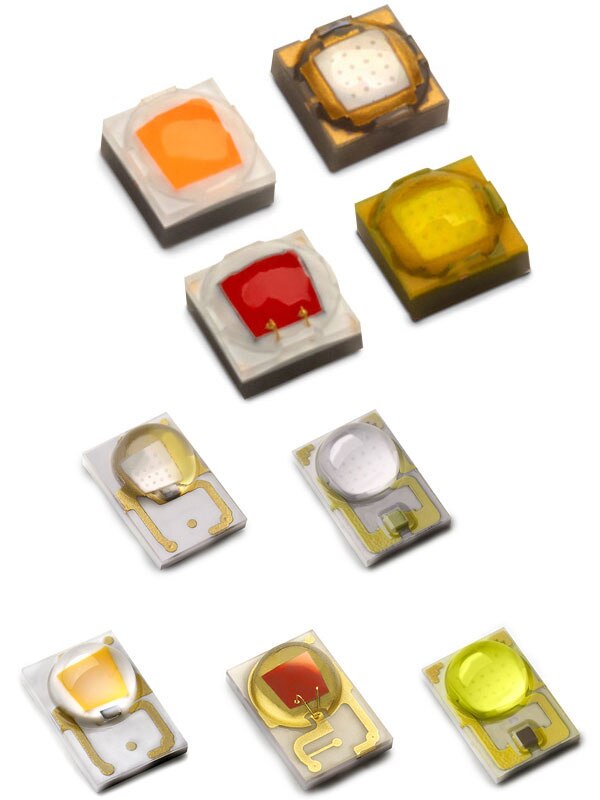

LUXEON 3535L Colors	LUXEON C Colors LUXEON Rebel Colors	LUXEON Z Colors

DOWNLIGHTS

Durable and effective LEDs you rely on

Downlights Design Approach
Value	Standard	Performance
Edge/Direct Lit Designs High Lumen/$ Slim Design	Direct Lit Designs High Efficacy Diffuse Lighting	Reflector Designs Single Shadow Beam Optimized Spectrums
Recommended LED

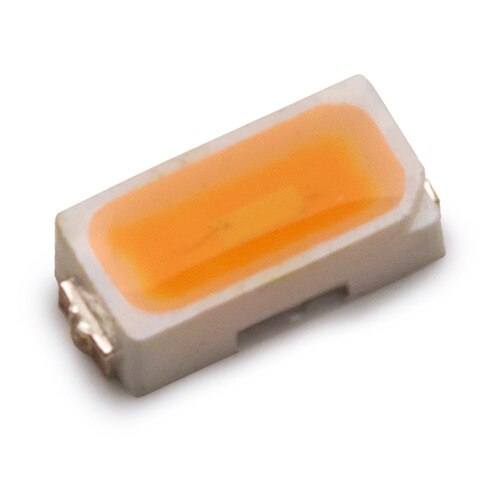

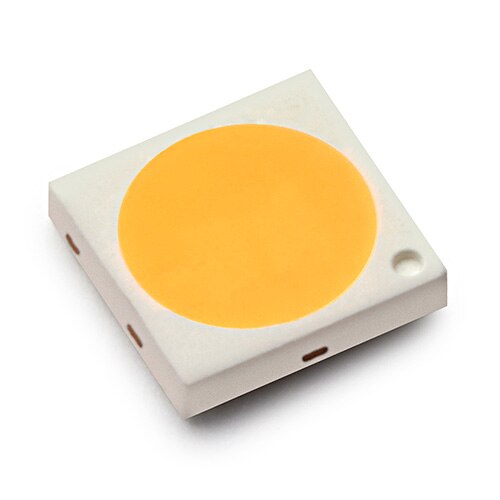

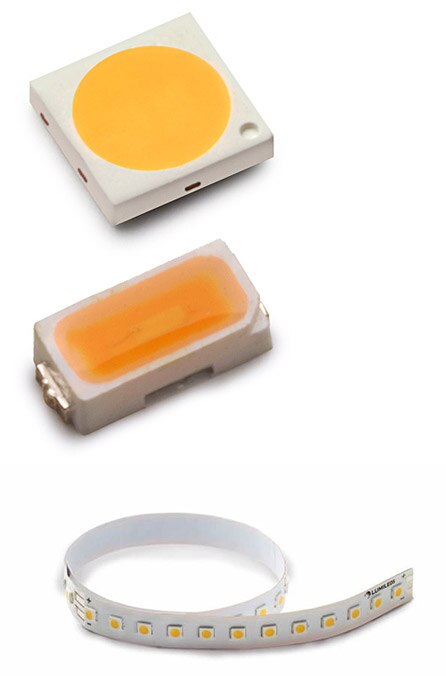

LUXEON 3030 2D LUXEON 3014 LUXEON XF-3535L	LUXEON 3535L LUXEON 3020 LUXEON XF/XR	LUXEON CoB Core Range CrispWhite Available Ambiance Available

Residential Ceilings Design Approach
Value	Standard	Performance
Cost Effective	Good Uniformity	Full Color Lighting Dynamic Lighting
Recommended LED

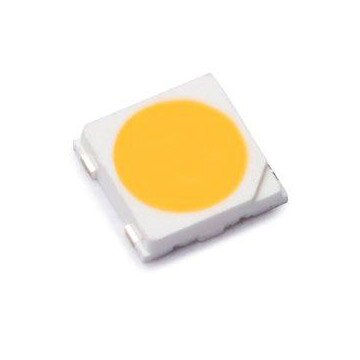

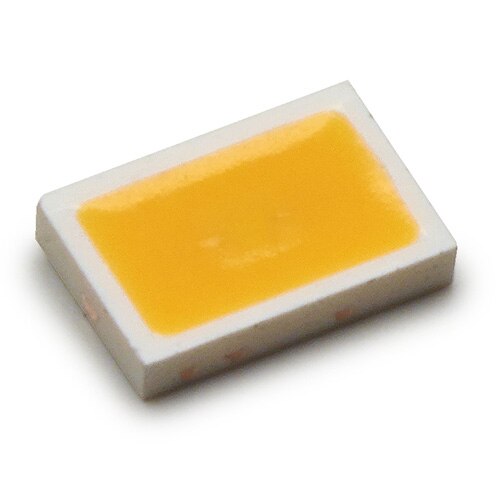

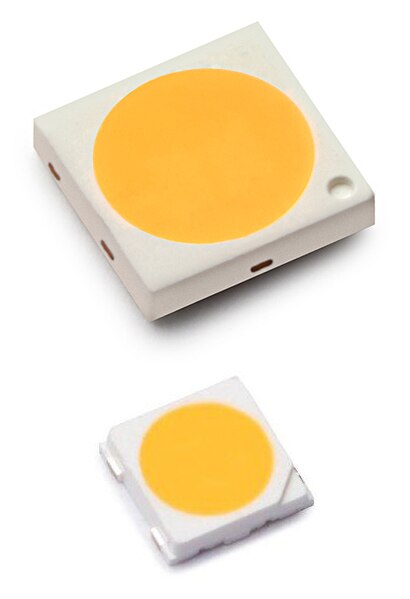

LUXEON 3030 2D	LUXEON 3014 LUXEON 3020	LUXEON 3535L Colors LUXEON 3535L HE

HIGH BAY & LOW BAY

Energy-saving LEDs for more productive environments

High Bay Design Approach
Value	Standard	Performance
High Efficacy Excellent Uniformity	Ease to Design Uniform Beams	High Luminous Intensity Precise Optical Control
Recommended LED

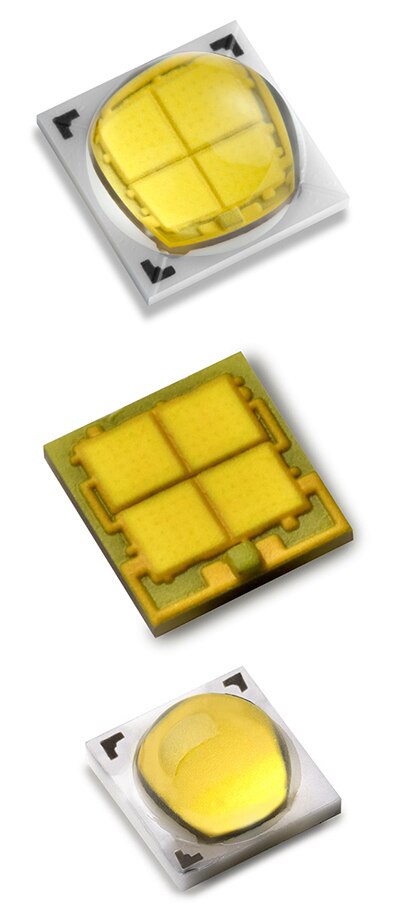

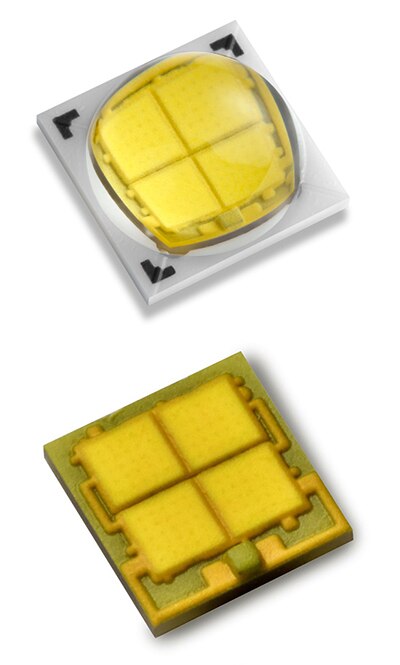

LUXEON 3030 2D LUXEON 3535L HE	LUXEON CoB LUXEON CoB with CrispWhite Technology	LUXEON M LUXEON MZ LUXEON TX

SPOTLIGHTS

Create the impact and intensity that sells

Spotlights Design Approach
Value	Standard	Performance
Cost Effective Flood Lighting LLow Lumen Density	Variety of Spectrums Single Shadow Beam Ease of Design	High Luminous Intensity Design Flexibility Precise Optical Control
Recommended LED

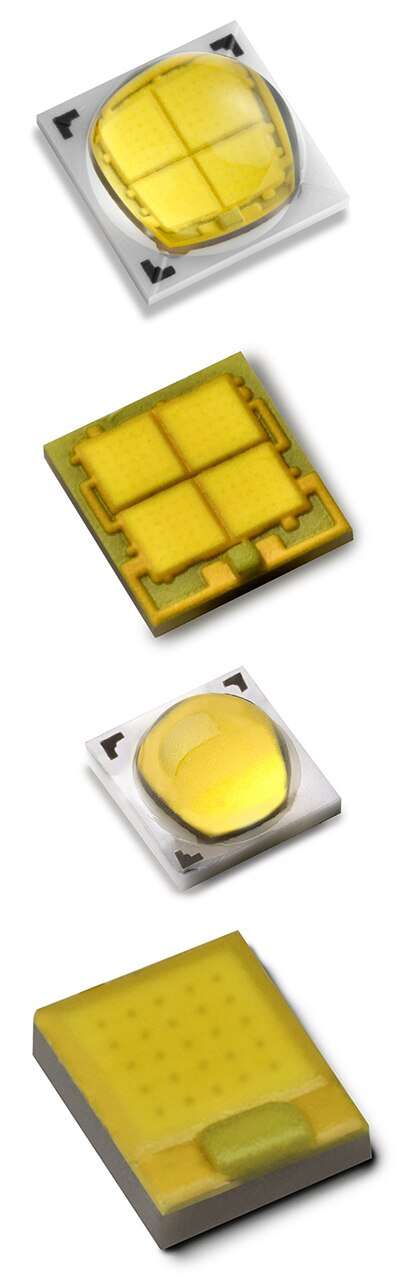

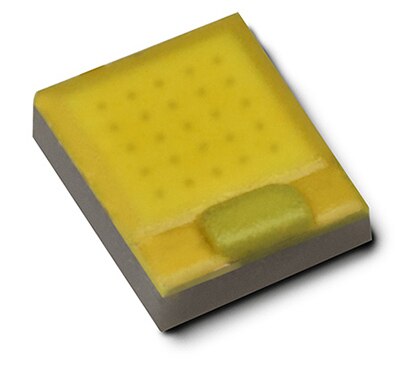

LUXEON 3030 2D LUXEON 3535L HE	LUXEON CoB LUXEON CoB with CrispWhite Technology	LUXEON M LUXEON MZ LUXEON TX LUXEON Z ES

OUTDOOR

Creating a brighter and safer world

Outdoor Area (Bollards, Wall Pack, Pathway & Flood) Design Approach
Value	Standard	Performance
Multi-LED Design Cost Effective Wide Beam High Efficacy	Single/Multi-LED Design High Luminous Density Single Shadow Beam Ease of Assembly	Single/Multi-LED Design High Luminous Intensity Precise Optical Control Design Flexibility
Recommended LED
LUXEON 3030 2D LUXEON 3535L HE	LUXEON CoB	LUXEON M LUXEON MZ LUXEON TX LUXEON Z ES

Roadway, Street, Tunnel, Under Canopy & Sports Lighting Design Approach
Value	Standard	Performance
Multi-LED Design Cost Effective High Efficacy	Single/Multi-LED Design Ease of Design Ease of Assembly	Multi-LED Design Design Flexibility Precise Optical Control
Recommended LED
LUXEON 3030 2D LUXEON 3535L HE	LUXEON CoB	LUXEON M LUXEON MZ LUXEON TX LUXEON Z ES

High Mast & Sports Lighting Design Approach
Value	Standard	Performance
Multi-LED Design Ease of Design Ease of Assembly	Multi-LED Design High Efficacy Precise Optical Control	Multi-LED Design High Lumen Density Precise Optical Control
Recommended LED

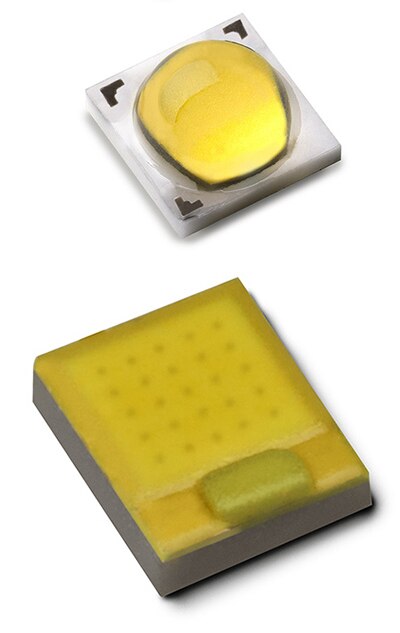

LUXEON CoB	LUXEON TX LUXEON Z ES	LUXEON M LUXEON MZ

LAMPS

Color quality and consistency across the installation

A19 & BR Design Approach
Value	Standard	Performance
Up to 60 W Equivalent Low BoM Reduced Driver Size (HV)	Up to 75 W Equivalent High Flux Density (2D) High Efficacy	100 W Equivalent High Efficacy High Uniformity
Recommended LED

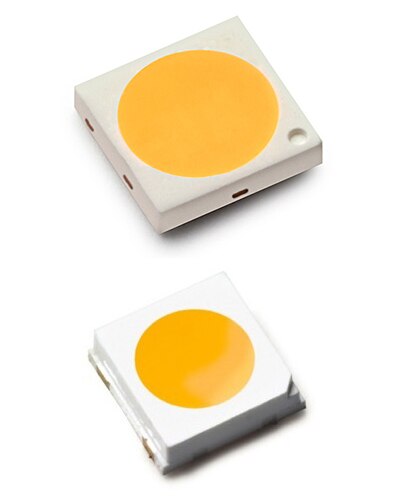

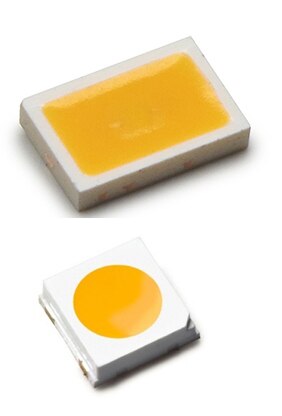

LUXEON 3020 LUXEON 3535 HV	LUXEON 3030 2D LUXEON 3535L HE	LUXEON M LUXEON MZ LUXEON TX Luxeon Z ES

Candle Lamps Design Approach
Value	Standard	Performance
Single Lens Design Highest Lumen/$ Reduced Driver Size	Multi-LED Design CCT Tuning Options Smaller Drivers (HV)	Single / Multi-Lens Design High Luminous Intensity Design Flexibility
Recommended LED
LUXEON 5258 24V & 96V Available	LUXEON 3030 2D LUXEON 3535 HV	Luxeon Z ES

Color Lamps Design Approach
Value	Standard	Performance
Cost Effective Standard 3535 Package	High Efficacy Full Color Palette Perfect Color Mixing with LUXEON C Colors	High Color Density Precise Optical Control Broad Gamut
Recommended LED
LUXEON 3535L Colors	LUXEON C Colors LUXEON Rebel Colors	LUXEON Z Colors

GU10 & MR16 Directional Design Approach
Value	Standard	Performance
Up to 35 W Equivalent Highest Lumen/$ Reduced Driver Size Single Shadow Beam	Up to 50 W Equivalent Design Flexibility CCT Tuning Option Shower-Head	50 W Equivalent Highest Efficacy Highest Quality of Light Single Shadow Beam
Recommended LED
LUXEON 3535 HV	LUXEON 3030 2D LUXEON 3535 HV	LUXEON CoB

PAR Directional Lamps Design Approach
Value	Standard	Performance
Multi-LED Design Highest Lumen/$ CCT Tuning Options	Single LED Design Highest Quality of Light Single Shadow Beam	Single / Multi-LED Design High Flux Intensity Precise Optical Control
Recommended LED
LUXEON 3030 2D LUXEON 3535 HV	LUXEON CoB LUXEON CoB with CrispWhite Technology	LUXEON M LUXEON MZ LUXEON TX LUXEON Z ES

INDOOR AREA LIGHTING

Brings confidence and a contemporary look to your lighting design

T-LEDs Design Approach
Value	Standard	Performance
Cost Effective Excellent Uniformity	High Efficacy Good Uniformity	High Efficacy Good Uniformity
Recommended LED

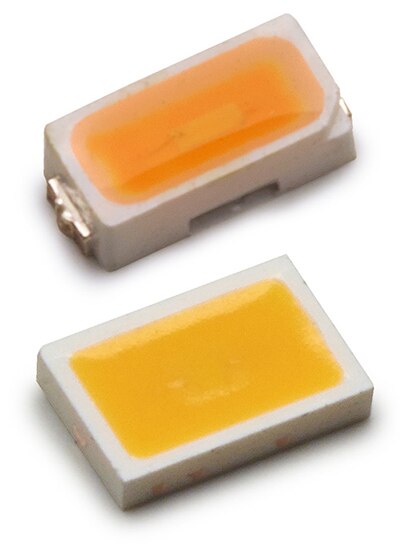

LUXEON 3014	LUXEON 3020	LUXEON 3535L HE

Troffers Design Approach
Value	Standard	Performance
Edge Lit, Indirect Lit & Reflector Designs High Lumen/$ Low LED Count	Direct Lit Designs Good/High Efficacy Excellent Uniformity	Direct Lit Designs Highest Efficacy Excellent Uniformity
Recommended LED

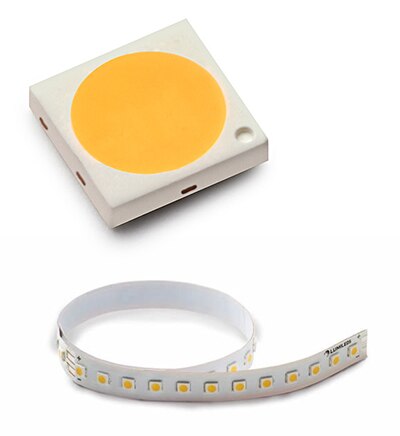

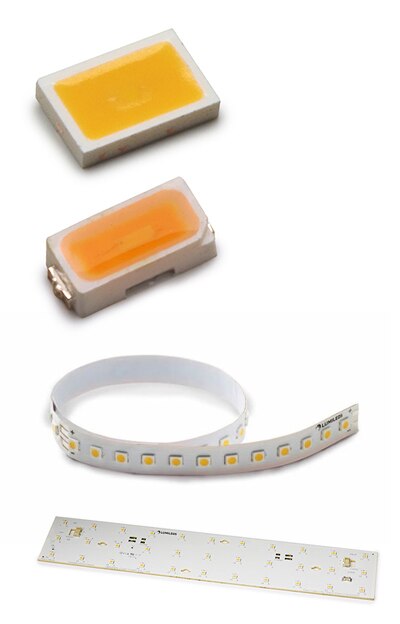

LUXEON 3030 2D LUXEON XF-3535L	LUXEON 3020 LUXEON 3014 LUXEON XF-3535L LUXEON XR-3535L	LUXEON 3535L HE LUXEON XF/XR
