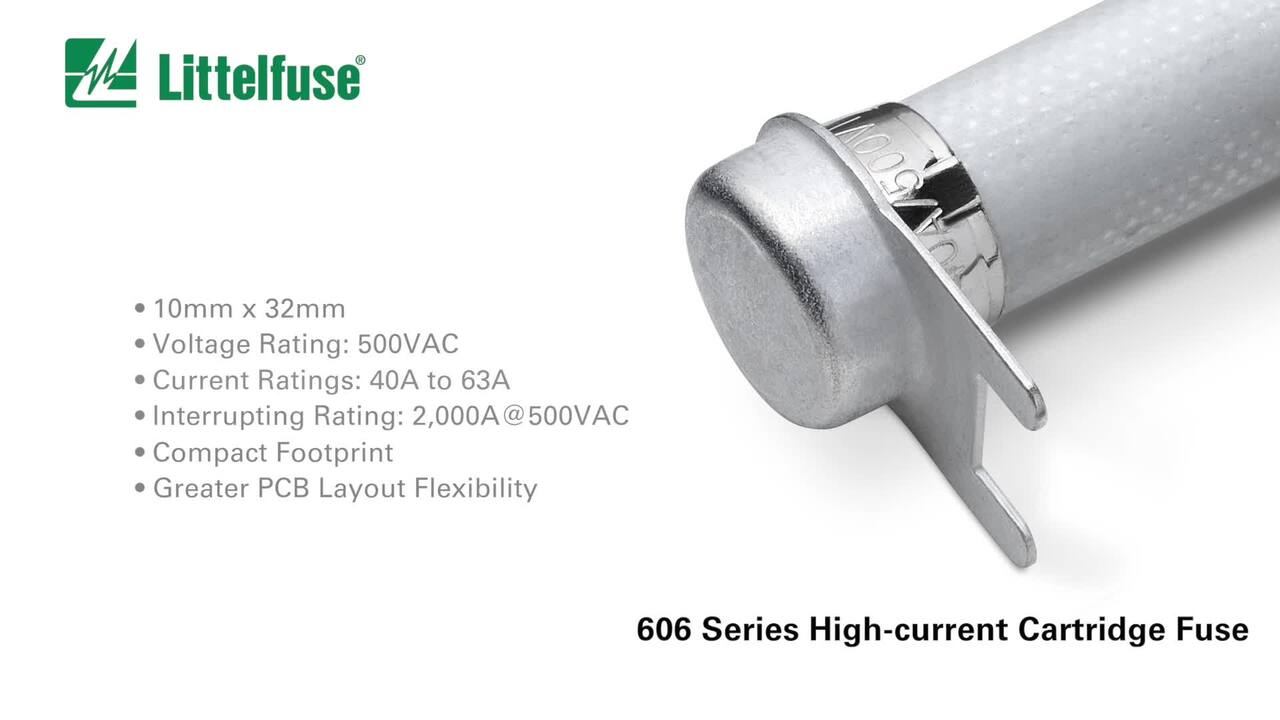

High Current 500 VAC Compact Cartridge Fuses – 606 Series
Littelfuse's 606 series high-current fuses designed for overcurrent protection in high voltage applications
Littelfuse's 606 series high-current fuse has a compact footprint, allowing circuit designers to reduce the amount of board space they reserve for protection components when designing high wattage equipment. It is a 10 mm x 32 mm cartridge fuse rated at 500 VAC with 40 A to 63 A current ratings and a 2,000 A at 500 VAC interrupting rating and is specifically designed for overcurrent protection in high voltage applications. The 606 series fuse is RoHS compliant and 100% lead (Pb) free.
Resources
Features
- Interrupt rating at 500 VAC of 2,000 A and a 40 A to 63 A nominal current rating
- Small package: compact body size of 10 mm x 32 mm
- End caps with integrated stand-off leads
- Operating temperature range from -55°C to +125°C
Benefits
- Suitable for use as overcurrent protection in power supply circuits rated up to single-phase
- 23 kW system
- Eliminates the need for mounting accessories and/or lead-forming processes
- High wattage equipment can be designed with less board space reserved for protection components
- Provides reliable protection in extreme temperature environments
Applications
- Uninterruptible power supply (UPS)
- Off-board charging post
- Three-phase AC input for charging pile/electric vehicle supply equipment (EVSE)
- Power conversion equipment such as inverters, rectifiers, and so on
- Motor protection in elevator systems
606 Series Compact Cartridge Fuses
| Image | Manufacturer Part Number | Description | Current Rating (Amps) | Melting I²t | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
 |  | 0606040.UXTHP | FUSE CARTRIDGE 40A 500VAC | 40 A | 2500.0 | 325 - Immediate | $82.73 | View Details |
| | 0606050.UXTHP | FUSE CARTRIDGE 50A 500VAC | 50 A | 4800.0 | 0 - Immediate | $93.27 | View Details |
| | 0606063.UXTHP | FUSE CARTRIDGE 63A 500VAC | 63 A | 7000.0 | 438 - Immediate | $108.74 | View Details |
Published: 2018-06-22
