Product Highlights > 59143 Series Miniature Flange Mount Sensor

            59143 Series Miniature Flange Mount Sensor
                    Littelfuse's 59143 series is a miniature flange mounting reed sensor for use in a wide range of proximity sensing applications

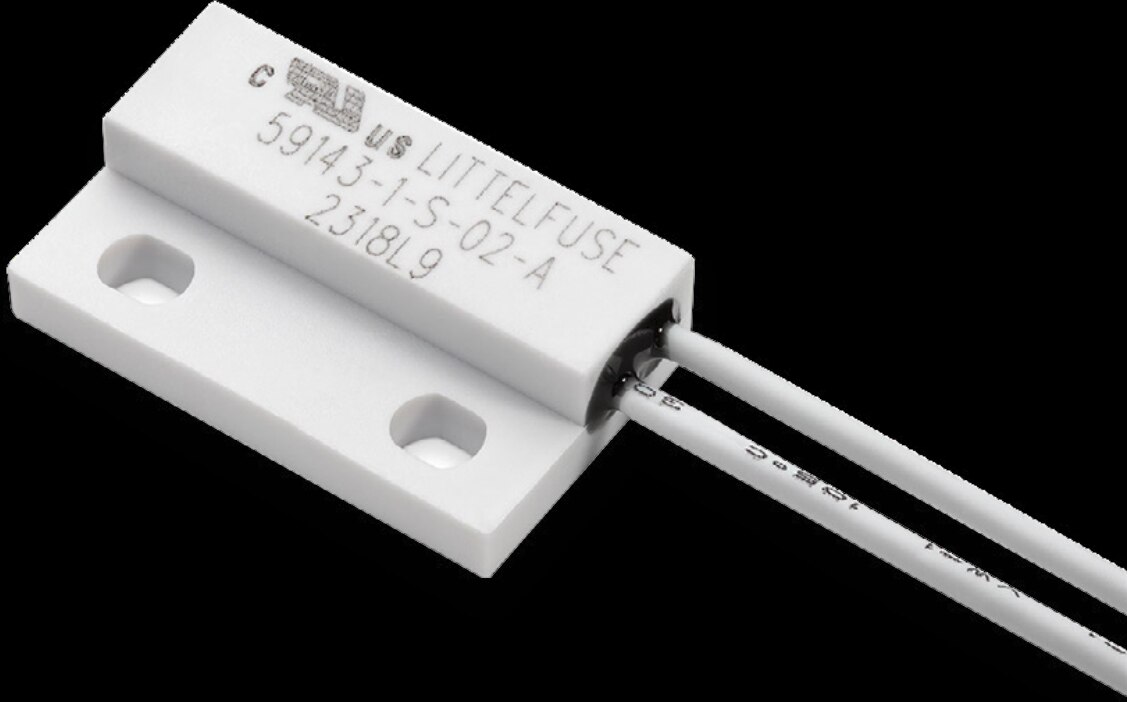

Littelfuse's 59143 series is a miniature flange mounting reed sensor 23.00 mm x 14.00 mm x 6.00 mm (0.906" x 0.551" x 0.236") with normally open contacts. The case design enables mounting with M3 screw with a washer at 1 Nm torque maximum or adhesive mounting. The wires exit from the right-hand side. The 59143 is capable of switching up to 265 V_AC/300 V_DC at 10 VA. It is well suited for use in a wide range of industrial, appliance, or IoT proximity sensing applications.

Features and Benefits

Non-contact switching solution for wet and harsh environments
Housing design for optimum adjustability

Available in select sensitivities (operating distances)
Standard cable configurations; customization
