Y2/X1 Film EMI Suppression Capacitors - R41D Series

KEMET’s capacitors are constructed with a metalized polypropylene film, making them ideal for high-temperature harsh environments

Image of KEMET Y2/X1 Film EMI Suppression Capacitors – R41D SeriesKEMET's, a YAGEO Company, R41D is constructed of metalized polypropylene film, encapsulated with self-extinguishing resin, in a box of material meeting the requirements of UL 94 V-0. The R41D series meets the qualification requirements of AEC-Q200, making it ideal for automotive solutions. Typical uses include electromagnetic interference suppression filtering and situations where failure could lead to a danger of electrical shock.

Features
  • AEC-Q200 qualified
  • 0.001 µF to 0.22 µF
  • Rated voltage: 300 VAC (50 Hz/60 Hz)
  • Recommended DC voltage: 1,200 VDC
  • ENEC, UL, cUL, and CQC approvals
  • High temperature up to +125ºC/2,000 hrs
  • 100% screen factory test at 4,000 VDC/60 sec
  • Harsh environment capability: THB performance +85ºC/85% R.H./300 VAC
    • 1,000 hrs (≥2.2 nF)
    • 500 hrs (<2.2 nF)
  • Max dv/dt:
    • P10: 6,000 V/µs
    • P15: 4,500 V/µs
    • P22.5: 3,000 V/µs
Applications
  • AC inputs
  • HVDC filters
  • Three-phase outputs
  • Three-phase UPS
  • Automotive OBC, DC/DC
  • Solar inverters
  • Energy storage
  • Charging stations

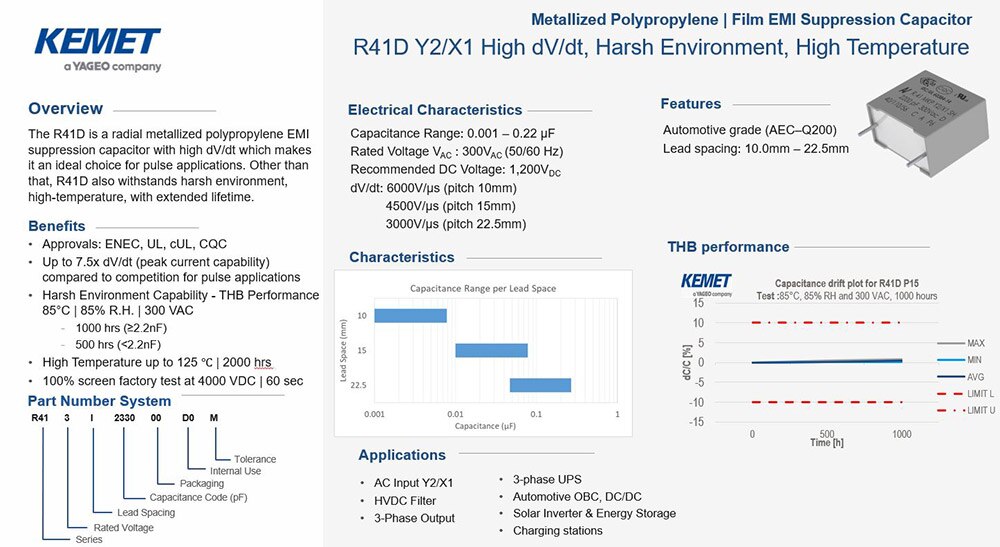

Product Brief - Click to Enlarge
    Image of KEMET Y2/X1 Film EMI Suppression Capacitors – R41D Series - Product Brief

R41D Series Y2/X1 Capacitors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CAP FILM 1000PF 10% 1.2KVDC RADR413F110050D0KCAP FILM 1000PF 10% 1.2KVDC RAD188 - Immediate$4.60View Details
CAP FILM 1500PF 10% 1.2KVDC RADR413F115050D0KCAP FILM 1500PF 10% 1.2KVDC RAD1800 - Immediate$4.60View Details
CAP FILM 2200PF 10% 1.2KVDC RADR413F122050D0KCAP FILM 2200PF 10% 1.2KVDC RAD1576 - Immediate$4.68View Details
CAP FILM 3300PF 10% 1.2KVDC RADR413F133050D0KCAP FILM 3300PF 10% 1.2KVDC RAD1490 - Immediate$5.17View Details
CAP FILM 4700PF 10% 1.2KVDC RADR413I147050D0KCAP FILM 4700PF 10% 1.2KVDC RAD0 - Immediate$5.26View Details
CAP FILM 4700PF 10% 1.2KVDC RADR413F147050D1KCAP FILM 4700PF 10% 1.2KVDC RAD1480 - Immediate$5.26View Details
CAP FILM 4700PF 10% 1.2KVDC RADR413F147050D0KCAP FILM 4700PF 10% 1.2KVDC RAD1190 - Immediate$5.58View Details
CAP FILM 6800PF 10% 1.2KVDC RADR413F168050D0KCAP FILM 6800PF 10% 1.2KVDC RAD1200 - Immediate$5.75View Details
CAP FILM 6800PF 10% 1.2KVDC RADR413I168050D0KCAP FILM 6800PF 10% 1.2KVDC RAD1000 - Immediate$5.26View Details
CAP FILM 10000PF 10% 1.2KVDC RADR413I210050D0KCAP FILM 10000PF 10% 1.2KVDC RAD538 - Immediate$5.42View Details
CAP FILM 0.015UF 10% 1.2KVDC RADR413I215050D0KCAP FILM 0.015UF 10% 1.2KVDC RAD891 - Immediate$5.99View Details
CAP FILM 0.015UF 10% 1.2KVDC RADR413I215050D1KCAP FILM 0.015UF 10% 1.2KVDC RAD1000 - Immediate$5.42View Details
CAP FILM 0.022UF 10% 1.2KVDC RADR413I222050D1KCAP FILM 0.022UF 10% 1.2KVDC RAD788 - Immediate$6.08View Details
CAP FILM 0.022UF 10% 1.2KVDC RADR413I222050D0KCAP FILM 0.022UF 10% 1.2KVDC RAD632 - Immediate$7.14View Details
CAP FILM 0.033UF 10% 1.2KVDC RADR413I233050D1KCAP FILM 0.033UF 10% 1.2KVDC RAD690 - Immediate$7.31View Details
CAP FILM 0.033UF 10% 1.2KVDC RADR413I233050D0KCAP FILM 0.033UF 10% 1.2KVDC RAD500 - Immediate$8.05View Details
CAP FILM 0.047UF 10% 1.2KVDC RADR413N247050D0KCAP FILM 0.047UF 10% 1.2KVDC RAD506 - Immediate$8.46View Details
CAP FILM 0.047UF 10% 1.2KVDC RADR413I247050D0KCAP FILM 0.047UF 10% 1.2KVDC RAD0 - Immediate$9.36View Details
CAP FILM 0.068UF 10% 1.2KVDC RADR413N268050D0KCAP FILM 0.068UF 10% 1.2KVDC RAD1500 - Immediate$9.11View Details
CAP FILM 0.068UF 10% 1.2KVDC RADR413I268050D0KCAP FILM 0.068UF 10% 1.2KVDC RAD1050 - Immediate$11.58View Details
Published: 2024-05-09
