Piezoelectric Ceramic Disc Shape Transducers - ND Series

KEMET's high-performance piezoelectrics generate a charge in response to pressure

Image of KEMET's Piezoelectric Ceramic Disc Shape Transducers - ND Series KEMET a YAGEO Companys' piezoelectric ceramics ND series are disc-shaped piezoceramics that use original high-performance piezoelectric materials. These products are based on the principle of the piezoelectric effect that generates a charge in response to pressure and an inverse piezoelectric effect that generates strain in response to voltage.

Features and Benefits

  • N6 material has a high coupling coefficient, high Qm, and low tanδ, suitable for high-power applications
  • N21 material has a high coupling coefficient and a large g-constant, suitable for sensing applications
  • Operating temperature range: -20°C to +60°C
  • RoHS and REACH compliant
Applications
  • Vibratory feeders
  • Ultrasonic cleaning machines
  • Ultrasonic levitation
  • Ultrasonic flow and level meters
  • Ultrasonic distance sensors
  • Load sensors, impact sensors
Material Properties

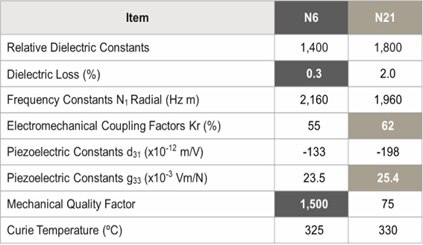

Image of KEMET's N6 and N21 Material Properties

Image of Kemet's N6 Material Properties

Image of Kemet's N21 Material Properties

Part Number Reference and Ratings

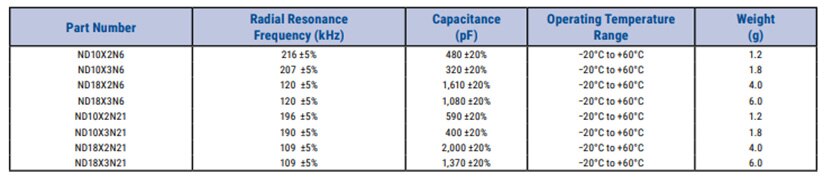

Image of Kemet's Part Number Reference and Ratings

Piezoelectric Ceramic Disc Shape Transducers - ND Series

ImageManufacturer Part NumberDescriptionFrequencyOperating TemperatureAvailable QuantityPriceView Details
SENSOR PEIZO DISC TRANSDUCERND10X2N6SENSOR PEIZO DISC TRANSDUCER216kHz-20°C ~ 60°C21 - Immediate$334.05View Details
SENSOR PEIZO DISC TRANSDUCERND10X2N21SENSOR PEIZO DISC TRANSDUCER196kHz-20°C ~ 60°C10 - Immediate$334.05View Details
SENSOR PEIZO DISC TRANSDUCERND10X3N6SENSOR PEIZO DISC TRANSDUCER207kHz-20°C ~ 60°C29 - Immediate$301.87View Details
SENSOR PEIZO DISC TRANSDUCERND10X3N21SENSOR PEIZO DISC TRANSDUCER190kHz-20°C ~ 60°C13 - Immediate$377.27View Details
SENSOR PEIZO DISC TRANSDUCERND18X2N21SENSOR PEIZO DISC TRANSDUCER109kHz-20°C ~ 60°C15 - Immediate$419.42View Details
SENSOR PEIZO DISC TRANSDUCERND18X2N6SENSOR PEIZO DISC TRANSDUCER120kHz-20°C ~ 60°C12 - Immediate$419.42View Details
SENSOR PEIZO DISC TRANSDUCERND18X3N6SENSOR PEIZO DISC TRANSDUCER120kHz-20°C ~ 60°C29 - Immediate$474.74View Details
SENSOR PEIZO DISC TRANSDUCERND18X3N21SENSOR PEIZO DISC TRANSDUCER109kHz-20°C ~ 60°C20 - Immediate$379.74View Details
Published: 2023-07-28

Related Product Training Modules

ND Series Piezoelectric Ceramic Disc Shape Transducers The training covers piezoelectric principles, explains disc products and how to use them, and covers examples of applications that utilize ultrasonic.
