VMx Series Resistors
Isabellenhuette VMx series resistors are designed for various power modules, control systems, frequency converters, and more

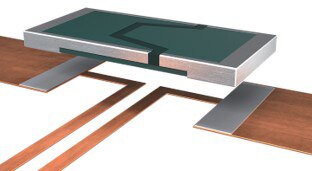

Isabellenhuette VMx series resistors are a versatile and well-proven solution for all sorts of power modules, control systems (e.g., automotive), frequency converters, and more. The flat "sandwich" design, constructed with patented ZERANIN® alloy, saves space while offering excellent stability and assembly options. VMx resistors are available in numerous sizes and designs, including a gold-clad version for gluing applications with ultimate low TCR (20 ppm/K) and excellent long-term stability.
Features
- 2 W power rating at +110°C
- Constant current up to 20 A (5 mOhm)
- Standard pad size (2010)
- High pulse power rating
- Excellent long-term stability
- Mounting: Reflow- and IR-soldering
- AEC-Q200 qualified
- RoHS 2011/65/EU compliant
- Package sizes 2512, 2010, 1206, and 0805
- Uses ZERANIN material exclusively
- Unique TCR of 20 ppm/K for full range
Applications
- Current sensors for power hybrid applications
- Control systems for the automotive market
- Power modules
- Frequency converters
- Switch mode power supplies
VMx Series Resistors
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | VMS-1R00-1.0-U | RESISTOR - ISA-PLAN SHUNT, 1, 1% | 49167 - Immediate | $21.32 | View Details |
| | VMS-R033-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.033 | 3779 - Immediate | $21.32 | View Details |
| | VMS-R020-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.02, | 10053 - Immediate | $21.32 | View Details |
| | VMS-R005-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.005 | 18241 - Immediate | $21.32 | View Details |
|  | VMS-R500-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.5, | 52356 - Immediate | $21.32 | View Details |
| | VMS-R025-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.025 | 8392 - Immediate | $21.32 | View Details |
| | VMS-R330-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.33, | 7991 - Immediate | $21.32 | View Details |
| | VMS-R010-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.01, | 7181 - Immediate | $21.32 | View Details |
| | VMS-R050-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.05, | 10116 - Immediate | $21.32 | View Details |
| | VMS-R100-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.1, | 29052 - Immediate | $21.32 | View Details |
| | VMS-R200-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.2, | 22758 - Immediate | $21.32 | View Details |
| | VMS-R039-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.039 | 0 - Immediate | $6.17 | View Details |
| | VMS-R027-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.027 | 0 - Immediate | $6.17 | View Details |
| | VMS-R030-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.03, | 0 - Immediate | $6.17 | View Details |
| | VMS-R180-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.18, | 0 - Immediate | $6.17 | View Details |
| | VMS-R056-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.056 | 0 - Immediate | $6.17 | View Details |
| | VMS-R240-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.24, | 8868 - Immediate | $21.32 | View Details |
| | VMS-R068-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.068 | 0 - Immediate | $6.17 | View Details |
| | VMS-R120-1.0-U | RESISTOR - ISA-PLAN SHUNT, 0.12, | 0 - Immediate | $6.17 | View Details |
| | VMS-R0068-5.0-U | RESISTOR - ISA-PLAN SHUNT, 0.006 | 0 - Immediate | $5.56 | View Details |
